Texas Instruments LM2940IMPX-5.0/NOPB

B00AZVH2SW

LM2940IMPX-5.0/NOPB

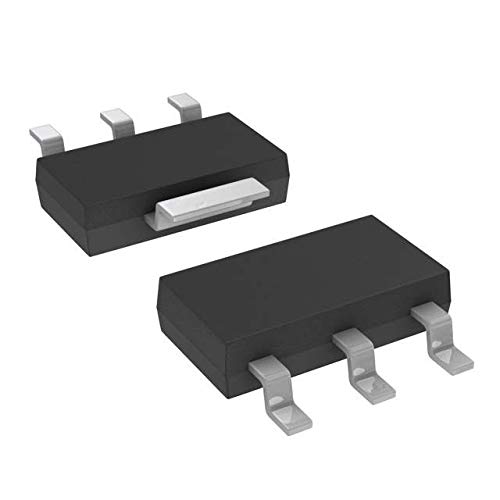

LM2940IMPX-5.0/NOPBzoom

Attributes

Key Value
Alternate Part No.926-LM2940IMPX50NOPB
Base Product NumberLM2940
BrandTexas Instruments
CategoryIntegrated Circuits (IC.
Control Features-
Current - Output1A
Current - Quiescent (Iq)10 mA
Current - Supply (Max)15 mA
Dropout Voltage - Max500 mV
Input Voltage MAX60 V
Line Regulation20 mV
Load Regulation35 mV
ManufacturerTexas Instruments
Manufacturer Part No.LM2940IMPX-5.0/NOPB
Maximum Operating Tempe.+ 85 C
MfrTexas Instruments
Minimum Operating Tempe.- 40 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Outputs1 Output
Number of Regulators1
Operating Temperature-40?C ~ 85?C
Output ConfigurationPositive
Output Current1 A
Output TypeFixed
Output Voltage5 V
PackageTape & Reel (TR)
Package / CaseTO-261-4, TO-261AA
Package/CaseSOT-223-4
PackagingReel
ProductLow Dropout Regulator
Product CategoryLDO Voltage Regulators
Product StatusActive
Protection FeaturesOver Current, Over Temp.
PSRR64dB (120Hz)
PSRR / Ripple Rejection.72 dB
SeriesLM2940-N, -
Supplier Device PackageSOT-223-4
TypePositive Voltage
Voltage - Input (Max)26V
Voltage - Output (Max)-
Voltage - Output (Min/F.5V
Voltage Dropout (Max)1V @ 1A

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH27871310.935551106Texas Instruments0.93555 @ 1
Digi-Key35276062.0150Texas Instruments2.0 @ 1
thumbzoomswatee.comLM2940IMPX-5.0/NOPB4.6312468Texas Instruments4.63 @ 1
