Texas Instruments UCC3895DWG4

B005TBPVUO

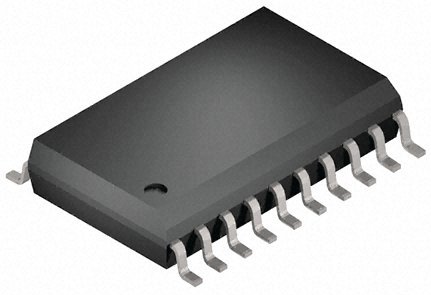

Texas Instruments UCC3895DWG4 IC REG CTRLR PWM CM/VM 20-SOIC

Texas Instruments UCC3895DWG4 IC REG CTRLR PWM CM/VM 20-SOICzoom

Attributes

Key Value
Base Part NumberUCC3895
Base Product NumberUCC3895
CategoryIntegrated Circuits (IC.
Clock SyncYes
Control FeaturesFrequency Control, Soft.
Duty Cycle100%
Duty Cycle (Max)100%
Fault Protection-
Frequency - Switching1MHz
Function-
Internal Switch(s)No
Lead Free Status / RoHS.RoHS Compliant
Manufacturer Part NumberUCC3895DWG4
Manufacturer Standard L.6 Weeks
MfrTexas Instruments
Mounting TypeSurface Mount
Number of Outputs1
Operating Temperature-55, 0?C ~ 70?C (TA)
Output ConfigurationPositive
Output IsolationIsolated
Output Phases1
Output TypePWM
PackageTube
Package / Case20-SOIC (0.295", 7.50mm.
PackagingTube
Part StatusActive
Serial Interfaces-
Series-
Standard Package25
Supplier Device Package20-SOIC
Synchronous Rectifier-
TopologyFull-Bridge, Phase-Shif.
Voltage - Breakdown-
Voltage - Start Up11V
Voltage - Supply (Vcc/V.10V ~ 16.5V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomiodPartsUCC3895DWG42.028150200Texas Instruments2.028 @ 150
Digi-Key19123304.58464125In StockTexas Instruments4.58464 @ 125
HotendaH27423245.6711100In StockTexas Instruments5.6711 @ 100
AvnetUCC3895DWG45.718912000Texas Instruments5.7189 @ 1
VericalUCC3895DWG45.7597510000Texas Instruments5.759 @ 75
