- mpnN412242410CST
- brandname: Wiegmann
- manufacturername: Wiegmann

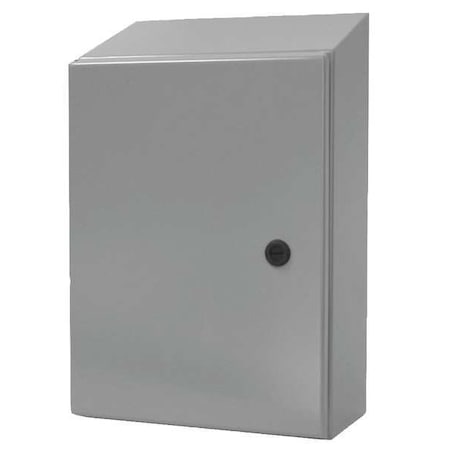

Wiegmann N412242410CST N412-CST Ultimate Series NEMA 4/12 Slope Top Single Door Enclosure, 24" x 24" x 10", Carbon Steel
- Brand: Wiegmann
- PartNumber: N412242410CST
- Model: WIEN412242410CST
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Wiegmann
- Label: Wiegmann
Attributes
| Key | Value |
|---|
| Approvals | CSA, UL |
| Basic Material | Metallic |
| Closure Method | 1/4 Turn Latch |
| Color | Gray |
| Composition | Metallic |
| Cover Design | Hinged |
| Depth | 10.0 in |
| Enclosure Cover Type | Hinged |
| Enclosure NEMA Rating | 12, 13, 3R, 4 |
| Family Series | Wiegmann Enclosures, N4. |
| Features | Mounting Holes |
| Finish | ANSI 61 Polyester Powder |
| Gross Weight | 44.5 lbs |
| Height | 24.0 in |
| Item | Sloped Top Enclosure |
| Item - Electrical Enclo. | Sloped Top Enclosure |
| Item Number | N412242410CST |
| Knockouts / No Knockouts | No Knockouts |
| Latching Mechanism | Quarter-Turn Latch |
| Manufacturer | Wiegmann |
| Manufacturer Part Number | N412242410CST |
| Material | Steel, Carbon Steel |
| Material of Enclosure | Carbon Steel |
| Metal Gauge | 14 |
| Mounting | Wall |
| NEMA Rating | 3R, 4, 12, 13 |
| Net Weight | 44.5 lbs |
| Nominal Enclosure Width | 24 in |
| Nominal Height | 24 " |
| Number of Doors | 1 |
| Options Included | Sloped Top |
| Panel Included | No |
| Product Series | N412-CST |
| Series | N412-CST |
| Solid / Clear Cover | Solid |
| Standards | UL listed, CSA certified |
| Usable Opening Depth | 9.88 in |
| Width | 24.0 in |
| Width (In.) | 24.000 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G8052825 | 438.0 | 1 | 1 | | Wiegmann | 55.6 | 438.0 @ 1 |
 | Automation Direct | N412242410CST | 513.0 | 1 | In Stock | | Wiegmann | 46.0 | 513.0 @ 1 |
 | Galco | N412242410CST-WIEG | 630.41 | 1 | In Stock | | Wiegmann | 44.5 | 630.41 @ 1 |
 | Raptor Supplies | AB9ZYY | 890.818461 | 1 | In Stock | | WIEGMANN | | 890.818461 @ 1 |
 | MRO Supply | 1090935 | 912.49 | 1 | In Stock | | Wiegmann | | 912.49 @ 1 |
 | gordonelectricsupply.com | N412242410CST | 971.33 | 1 | In Stock | 380 | WIEGMANN | | 971.33 @ 1 |
