Baldor-Reliance EM3768T

B08KHCGMZM

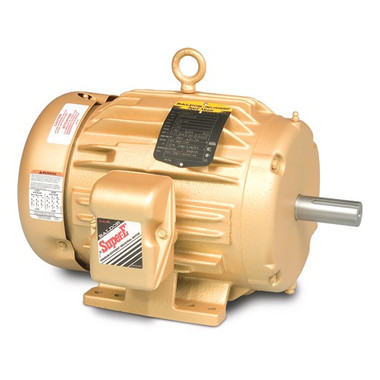

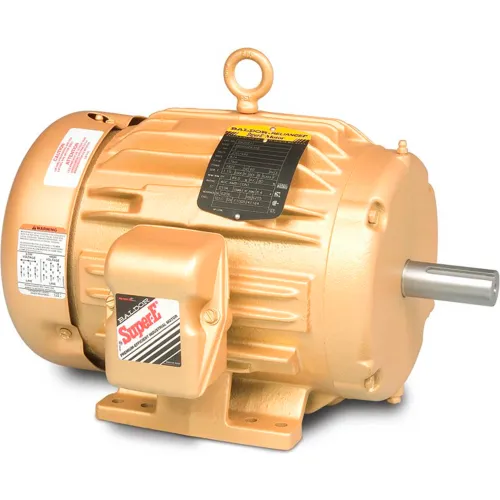

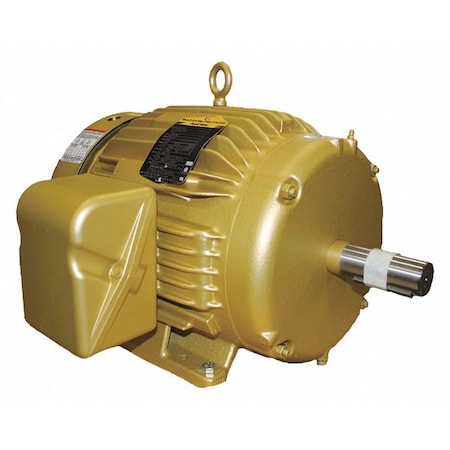

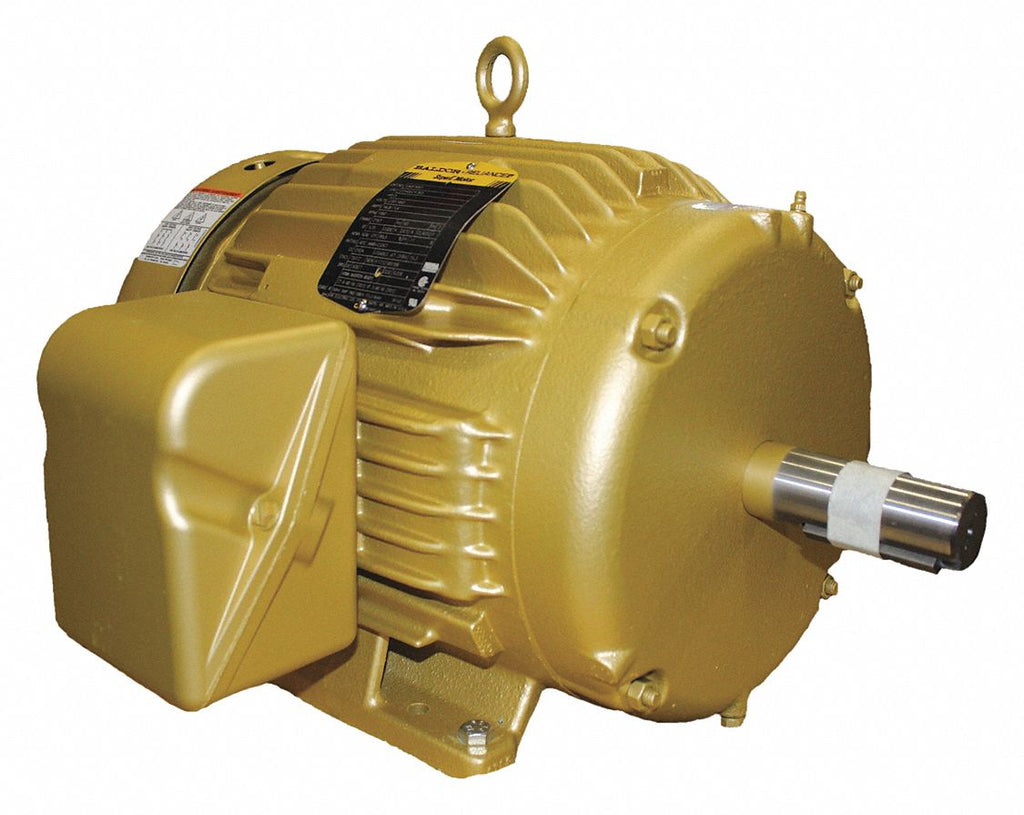

Baldor-Reliance EM3768T General Purpose Motor - 3 ph, 5 hp, 1200 rpm, 208-230/460 V, 215T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Footed Mount

Baldor-Reliance EM3768T General Purpose Motor - 3 ph, 5 hp, 1200 rpm, 208-230/460 V, 215T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Footed Mountzoom

Attributes

Key Value
ApplicationGeneral Purpose
Baldor Type0746M
BaseRG
Bearing TypeBall
Catalog NumberEM3768T
CompositionCast Iron
ConstructionCast Iron
DE Bearing6307
Drive End Flange TypeStandard
Efficiency %89.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTEFC
Estimated Weight195.00
Family SeriesBaldor Motors, M Series
FL Amps15.3-14.8/7.4
FL Efficiency89.5
Frame215T
Frame Size215T
Full Load Amps16/8
Full Load Efficiency89.5
Gross Weight195 lbs
Hertz60
Horsepower5 hp
HP5
Hz60
Insulation ClassF
Inverter DutyNo
ItemGeneral Purpose Motor
Item NumberEM3768T
Length Less Shaft15 1/16 in
Locked Rotor CodeL
ManufacturerBaldor, Baldor Reliance
Manufacturer Part NumberEM3768T
Manufacturers Warranty .3 yr
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionAll Angle
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingF1, Foot Mount
Mounting TypeFoot Mount, Rigid
Nameplate RPM1,160
NEMA Design CodeB
NEMA Frame215T
Net Weight195 lbs
Nominal Voltage208 VAC, 240 VAC, 415 V.
Number of Speeds1
ODE Bearing6206
Overall Length18 7/16 in, 18.45 "
Overload ProtectionNone
Part NumberEM3768T
Phase3, Three, 3 Phase
Power Factor64
Product SeriesM
Product TypeGeneral Purpose
Rating40C AMB-CONT
RPM1,200 RPM, 1160, 1160 R.
RPM Range1,101-1,200
SeriesSuper-E Series
Service Factor1.15
Shaft Dia.1 3/8 in
Shaft Length3 3/8 in
Specification Number07H002W333
Speed (RPM)1160
StandardsCSA, CSA EEV, UR
UPC Code781568102633
Usable at 208 Volts16.1
Voltage208V, 230V, 460V, 208-2.
Voltage (AC)208-230 VAC, 460 VAC
Voltage Compatibility200-230/440V AC, 200-23.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comEM3768T1258.751In StockBaldor1258.75 @ 1
thumbzoomMRO Supply242891588.081In StockBaldor1588.08 @ 1
thumbzoomgalesburgelectric.comEM3768T1660.541In StockBaldor1660.54 @ 1
thumbzoommidwestapplianceparts.comEM3768T-BM-P1667.441In StockBaldor1667.44 @ 1
steinerelectric.com2639831821.861In StockBaldor-Reliance1821.86 @ 1
factorysupplyoutlet.comHP82EU1834.231In StockBaldor-Reliance1834.23 @ 1
thumbzoomGalcoEM3768T-BLDR1840.491In StockBaldor195.01840.49 @ 1
thumbzoomWalker IndustrialEM3768T1852.761In StockBaldor1852.76 @ 1
thumbzoomGlobal IndustrialWBB3896191892.01In StockBaldor-Reliance1892.0 @ 1
motorsandcontrol.comEM3768T1929.951In StockBaldor Reliance195.01929.95 @ 1
thumbzoomPurvisEM3768T1954.281In StockBaldor-Reliance1954.28 @ 1
thumbzoomZoroG98188912092.761In StockBaldor-Reliance193.02092.76 @ 1
thumbzoomapexindustrialautomation.comEM3768T2137.814Baldor-Reliance2137.8 @ 1
thumbzoompumpproducts.comEM3768T2192.671In StockBaldor2192.67 @ 1
cbtcompany.comEM3768T2195.521In StockBaldor Reliance2195.52 @ 1
us.rs-online.com719442552315.951In StockBaldor-Reliance2315.95 @ 1
kirbyrisk.com17755622429.321In StockBaldor2429.32 @ 1
thumbzoomsustainablesupply.comC27574002527.191In StockBaldor Electric193.02527.19 @ 1
thumbzoomRaptor SuppliesAJ6UFH3028.16375551In StockBALDOR MOTOR3028.1637555 @ 1
