A. O. Smith 9431A

B007ATNN5S

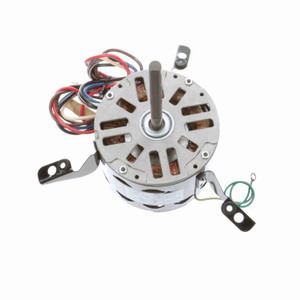

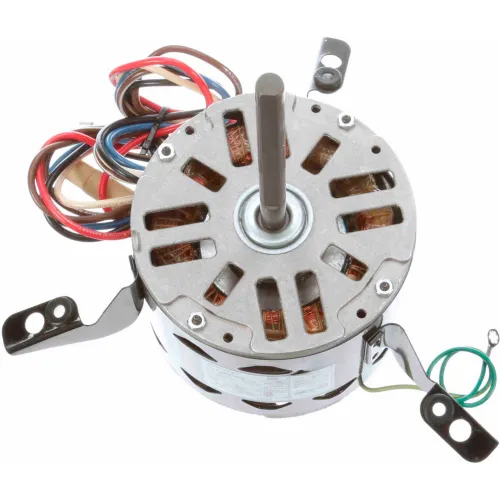

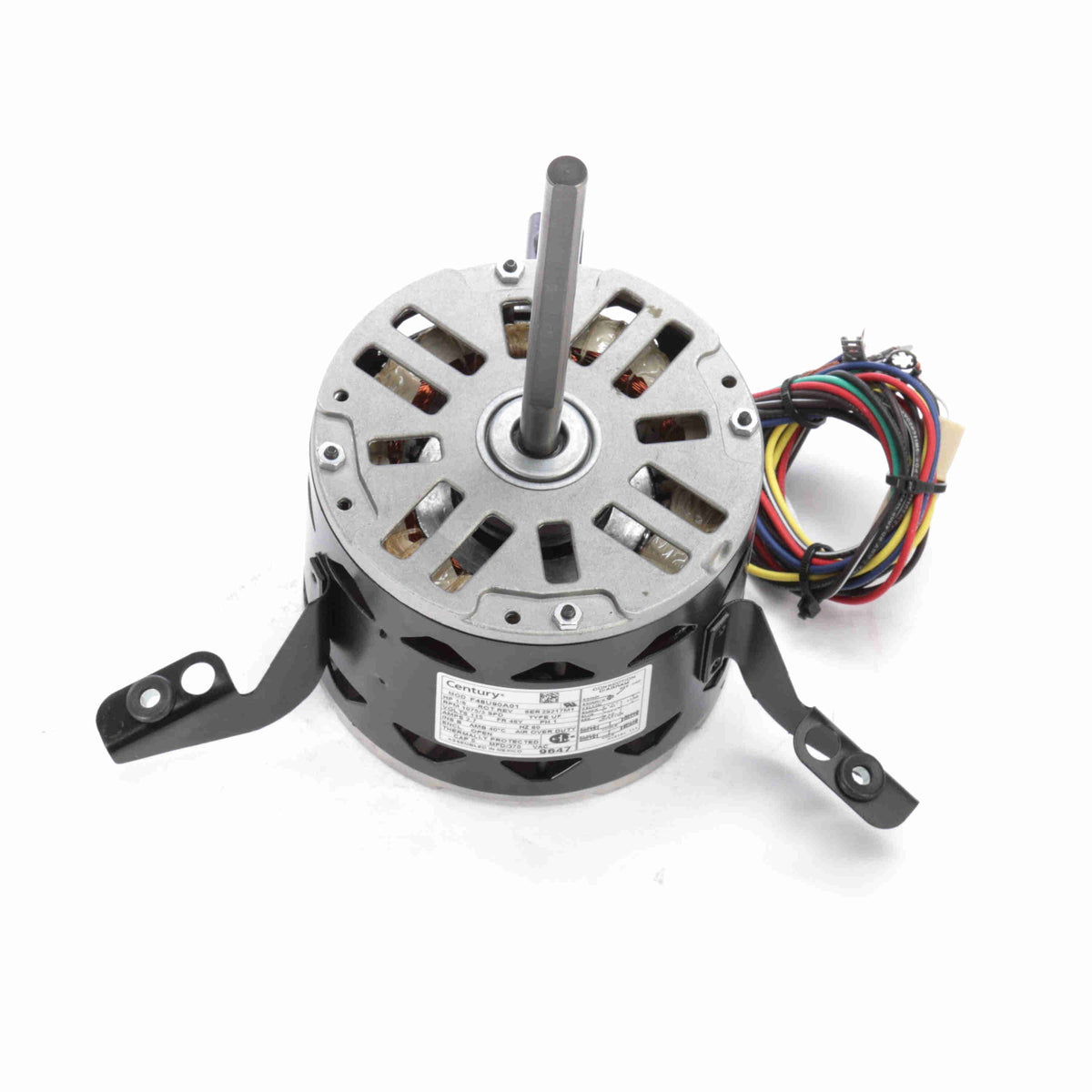

A.O. Smith 9431A 1/6 HP, 1075 RPM, 3 Speed, 277 Volts0.78 Amps, 48 Frame, Sleeve Bearing Direct Drive Blower Motor

A.O. Smith 9431A 1/6 HP, 1075 RPM, 3 Speed, 277 Volts0.78 Amps, 48 Frame, Sleeve Bearing Direct Drive Blower Motorzoom

Attributes

Key Value
9431A is listed in Cent.A.O. Smith 9431, A.O. S.
Amps.78, .61, .49, 0.78/0.6.
Batteries Required?No
BearingsSleeve
Best Sellers Rank#1,298,413 in Tools & H.
Body Dia.5.7"
BrandCentury
C-Dimension9.74 (in.)
Capacitor5MFD @ 370VAC Required
Catalog Number9431A
CEN
CSAY
Customer Reviews5.0 out of 5 stars1 rat.
Date First AvailableOctober 21, 2011
DE Bearing TypeSleeve
DEM ReferenceNOHP
DutyAir Over
Duty CycleContinuous
Electrical TypePermanent Split Capacit.
Enclosure TypeOpen Enclosed, OAO (Ope.
FrameF48Y, 48Y
Frame MaterialRolled Steel
Frame Type48Y
Frequency60
HP1/6, 1/6, 1/8, 1/10 HP,.
Hz60
Ins. ClassB
Insulation ClassB
IP Code-
ItemMotor
Item model number9431A
Item Package Quantity1
Item Weight11 pounds
KVA Code-
ManufacturerCentury Electric/AO Smi.
Manufacturers Warranty .1 yr.
Max Ambient60?C
Max. Ambient Temp.60 Degrees C
Maximum Ambient Tempera.60? C
Motor ApplicationOEM Replacement
Motor BearingsSleeve
Motor DesignPermanent Split Capacit.
Motor Diameter5-5/8"
Motor Enclosure DesignOpen Enclosed
Motor Mounting TypeLug
Motor OrientationHorizontal
Motor Shaft RotationReversible
Motor Sub ApplicationFan Coil / Room Air Con.
Motor Thermal ProtectionAutomatic
MountingFlex Bracket
Mounting TypeLug
Nameplate RPM1075 rpm
No. of Speeds3
Number of Shafts1
Number of Speeds3
ODE Bearing TypeSleeve
Overall Length9.74"
Part Number9431A
Phase1
Product CategoryHVAC/R Motors > Fan Co.
Product Dimensions12.5 x 12.5 x 13 inches
Product TypePSC (Permanent Split Ca.
Product with faster shi.true
RotationReversible
RPM1075
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Service Factor (SF)1.00
Shaft Dia.1/2"
Shaft Diameter1/2 (in.), 1/2"
Shaft Extension5.50 (in.)
Shaft Length5-1/2", 5.52"
Shaft TypeFlat
Ship Weight12 lbs.
Shippingundefined (Fixed Shippi.
Speeds3
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic
ULRecognized
Voltage277V
Volts277

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB00VKL0RGA193.231In Stock2Century Electric Motor193.23 @ 1
thumbzoomemotorpro.com9431A271.531In StockCentury12.0271.53 @ 1
thumbzoomDreisilkerCE-RBC-9431A276.771In StockCentury276.77 @ 1
thumbzoommidwestapplianceparts.com9431A-AO-P277.5213AO Smith277.52 @ 1
thumbzoomsustainablesupply.comC2090638277.911In StockCentury15.0277.91 @ 1
thumbzoomhomeessentialsdirect.com9431A287.291In StockCentury Electric/AO Smith Motors Co11.0287.29 @ 1
thumbzoomZoroG0794039289.991In StockCentury12.1289.99 @ 1
thumbzoomNational Supply NetworkB2776561300.261In StockAO SMITH300.26 @ 1
hvacdiscountstore.comCEN--9431A303.441In StockCENTURY MOTORS303.44 @ 1
thumbzoomGlobal IndustrialWBB2776561315.951In StockCentury315.95 @ 1
