Dixon Valve & Coupling 8WSF8

mpn8WSF8
brandname: DIXON VALVE
manufacturername: DIXON VALVE

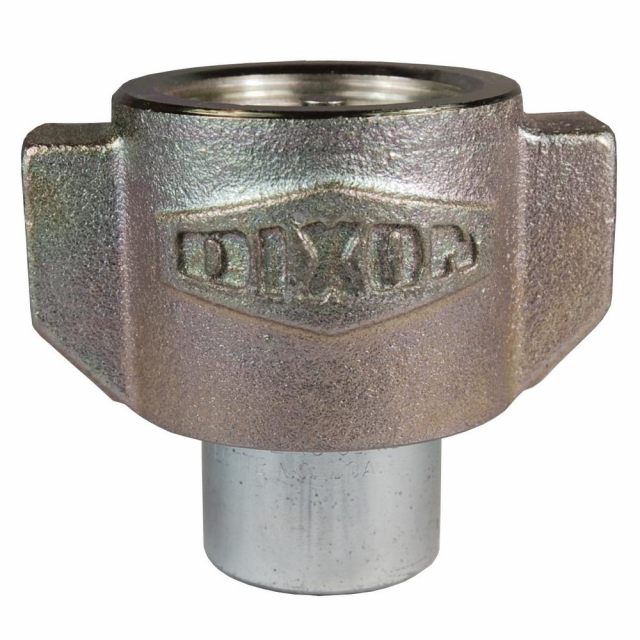

Dixon 8WSF8 Steel Hydraulic Fitting, High Pressure Coupler, 1" Coupling x 1"-11-1/2 NPTF

Dixon 8WSF8 Steel Hydraulic Fitting, High Pressure Coupler, 1" Coupling x 1"-11-1/2 NPTF

zoom

Brand: Dixon Valve & Coupling
PartNumber: 8WSF8
Model: 8WSF8
Size: 1" Coupling x 1"-11-1/2 NPTF
PackageQuantity: 1
Binding: Misc.
Manufacturer: Dixon Valve & Coupling
Label: Dixon Valve & Coupling

Attributes

Key	Value
Application	Used extensively in oil.
Body Size	1 in, 1"
Brand	Dixon Valve & Coupling
Burst Pressure	25100 PSI (1700 bar)
Connection	Female NPT
Construction	Machined components are.
Country of Origin (subj.	United States
Description:	1 WS COUP, 1 F-NPTF STE.
Dimensions	3.23 in OD
Domestic/Import	Domestic
End Style	FNPT
Interchange	Snap-Tite 75-Series, Hy.
Item	WS-Series FeMNPT,1",Cou.
Length	3.45" (87.6mm), 3.45 in.
Manufacturer	Dixon Valve & Coupling .
Material	Steel
Max OD	4.00 in (101.6 mm)
Max operating pressure	5000 PSI (345 bar)
Max Temp (?F)	250
Maximum OD	4.00" (101.6mm)
Maximum Operating Press.	5000 PSI (345 bar)
MFG Part #:	8WSF8
Min. Temp (?F)	-40
MPN	8WSF8
Nominal Size	1-11-1/2
Pressure Rating	5000 PSI
Product	Couplers
Product Type	Simple product
PSI	5000 PSI
PSI (Burst)	25100 PSI
Series	WS Series, WS-Series Wi.
SKU	8WSF8
Supplier:	Dixon Valve & Coupling .
Temperature Range	-40?F to +250?F (-40?C .
Temperature range	-40F to 250F (-40C to 1.
Temperature Rating	-40 to 250 deg F
Thread	Female NPTF, NPTF
Thread Size	1" - 11-1/2, 1"-11-1/2
Type	Wing Style Interchange
WARNING!	This product contains a.
Weight	3.195000
Weight Lb	3.1950

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Megadepot	8WSF8	87.96	1	2		Dixon Valve	3.195	87.96 @ 2
	usmegastore.com	8WSF8	87.96	1	2		Dixon Valve	3.195	87.96 @ 2
	heavydutydepot.com	8WSF8	87.96	2	2		Dixon		87.96 @ 2
	andersonprocess.com	8WSF8	93.87	1	2	26	Dixon Valve & Coupling	3.195	93.87 @ 2
	toolfetch.com	DIX-8WSF8	94.33	1	2		DIXON VALVE		94.33 @ 2
	kscdirect.com	DIX 8WSF8	100.26	1	2		Dixon Valve & Coupling Co		100.26 @ 2
	FinditParts	9522695	104.07	1	2		DIXON VALVE & COUPLING		104.07 @ 2
	MRO Supply	105977	105.65	1	2		Dixon		105.65 @ 2
	Zoro	G6552056	141.88	1	2	15	Dixon Valve & Coupling	1.24	141.88 @ 2
	Airline Hydraulics	DIXON 8WSF8	160.06	1	2		Dixon Quick Coupling		160.06 @ 2
	industrialzone.com	8WSF8	186.2	2	2		Dixon	3.32	186.2 @ 2
	imsbolt.com	8WSF8	238.43	1	2		DIXON VALVE		238.43 @ 2
	Wilson	8WSF8	327.93	1	2		Dixon		327.93 @ 2
