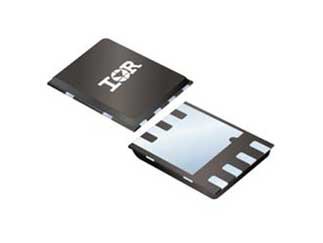

INFINEON IRFH5406TRPBF Single N-Channel 60 V 14.4 mOhm 32 nC HEXFET Power Mosfet - PQFN 5 x 6 mm - 4000 item(s)
- Brand: Infineon
- PartNumber: IRFH5406TRPBF
- Model: IRFH5406TRPBF
- PackageQuantity: 1
- Binding: Tools & Home Improvement
- Manufacturer: INFINEON
- Label: INFINEON
Attributes
| Key | Value |
|---|
| Base Product Number | IRFH5406 |
| Brand | Infineon |
| Category | Discrete Semiconductor . |
| Channel Mode | Channel Mode |
| Channel Type | N, Channel Type |
| Configuration | Quad Drain ; Triple Sou. |
| Current - Continuous Dr. | 11A (Ta), 40A (Tc) |
| Dimensions | 6.00 x 5.00 x 0.85 mm |
| Drain Current | 40 A |
| Drain to Source On Resi. | 14.4 mOhms |
| Drain to Source Voltage | 60 V |
| Drain to Source Voltage. | 60 V |
| Drive Voltage (Max Rds . | 10V |
| FET Feature | - |
| FET Type | N-Channel |
| Forward Diode Voltage | Forward Diode Voltage |
| Forward Transconductance | 27 S |
| Forward Voltage, Diode | 1.3 V |
| Gate Charge (Qg) (Max) . | 35 nC @ 10 V |
| Gate to Source Voltage | ?20 V |
| Height | 0.033" (0.85mm), 0.85mm |
| Input Capacitance | 1256 pF @ 25 V |
| Input Capacitance (Ciss. | 1256 pF @ 25 V |
| Length | 6mm, 0.236 in |
| Maximum Continuous Drai. | 40 A |
| Maximum Drain Source Re. | 14.4 m? |
| Maximum Drain Source Vo. | Maximum Drain Source Vo. |
| Maximum Gate Source Vol. | Maximum Gate Source Vol. |
| Maximum Operating Tempe. | +150 ?C |
| Maximum Power Dissipati. | 46 W |
| Mfr | Infineon Technologies |
| Minimum Operating Tempe. | -55 ?C |
| Mounting Type | Surface Mount |
| Number of Elements per . | 1 |
| Number of Pins | 8 |
| Operating Temperature | -55?C ~ 150?C (TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Package Type | PQFN |
| Pin Count | Pin Count |
| Power Dissipation | 46 W |
| Power Dissipation (Max) | 3.6W (Ta), 46W (Tc) |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 14.4mOhm @ 24A, 10V |
| Series | HEXFET?, HEXFET Series,. |
| Stock | Stock |
| Supplier Device Package | 8-PQFN (5x6) |
| Technology | MOSFET (Metal Oxide) |
| Temperature Operating R. | -55 to +150 ?C |
| Transistor Configuration | Single |
| Transistor Material | Si |
| Turn Off Delay Time | 12 ns |
| Turn On Delay Time | 5.4 ns |
| Typical Gate Charge @ V. | 21 nC @ 10 V, Typical G. |
| Vgs (Max) | ?20V |
| Vgs(th) (Max) @ Id | 4V @ 50?A |
| Width | 5mm, 0 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | TME | IRFH5406TRPBF | 0.5733 | 4000 | 100 | | INFINEON TECHNOLOGIES | | 0.5733 @ 4000 |
| Future Electronics | 7033756 | 0.612 | 4000 | 4000 | | Infineon | | 0.612 @ 4000 |
 | RS Delivers | 907-5189 | 0.6552 | 10 | 100 | | Infineon | | 0.6552 @ 100 |
| Digi-Key | 13437968 | 1.3574 | 1 | 12000 | | Infineon Technologies | | 1.3574 @ 100 |
| us.rs-online.com | 70019280 | 1.74 | 4000 | 100 | | Infineon | | 1.74 @ 4000 |
