Lcn 4116-EDA LH AL

mpn4116-EDA LH AL
brandname: LCN
manufacturername: LCN

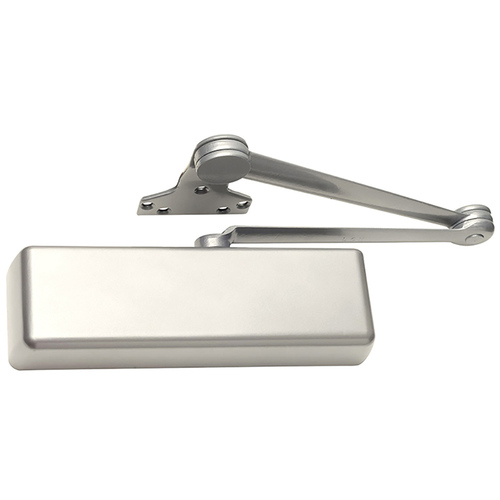

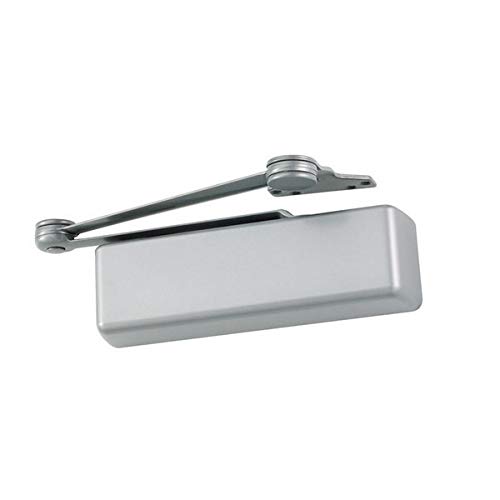

LCN 4116-EDA LH AL Door Closer, 15.625" Length

Brand: Lcn
PartNumber: 4116-EDA LH AL
Model: 4116-EDA LH AL
PackageQuantity: 1
Binding: Misc.
Manufacturer: LCN
Label: LCN

Attributes

Key	Value
ADA Compliant	Yes
Application	High-Traffic Installati.
Automatic/Manual	Manual
BAA Qualified	Yes
Builders Hardware Produ.	Door Closer
Certifications and List.	ANSI Certified
Closer Arm Construction	Forged Steel
Closer Arm Extension	11-1/2 Inch
Closer Arm Type	Extra Duty Arm
Closer Clearance	5-1/2 Inch
Closer Cover	Plastic Cover
Closer Fluid	All Weather Fluid
Closer Fluid Temperatur.	-30?F to 120?F
Closer Hold-Open	false
Closer Mounting Style	Surface
Closer Performance	Heavy Duty
Closer Pinion Diameter	11/16 Inch
Closer Piston Diameter	1-1/2 Inch
Closer Series	4110 Series Surface Mou.
Closer Size	6
Closer Type	Extra Duty Arm
Cold Weather Fluid	Yes
Color	Sprayed Aluminum, Alumi.
Color Code	689/US28
Commercial/Residential	Commercial
Country of Origin (subj.	United States
Cover	Full Plastic
Degree Swing	110 Deg.
Door Size	4' 6" (Interior); 3' 6".
Door Thickness	1-3/4 inch
Features	Full Complement Bearing.
Finish	Aluminum
Finish Description	Aluminum Painted
Finish Family	Aluminum
Function	EDA-Extra Duty Arm
Function Family	Non Hold Open Door Clos.
General Color Family	Metallics
General Material	Steel
Grade	ANSI/BHMA Grade 1
Hand	Left Hand
Hand Orientation	LH
Handing	LH
Hardware Finish Family	Metal
Hold Open	Without Hold Open
Housing Depth	2-1/4"
Housing Height	3-1/2"
Housing Length	12-1/4"
Hydraulic/Pneumatic	Hydraulic
Included Components	Patented Green Dial Spr.
Interior/Exterior	Interior and Exterior
Item	Surface Mounted Closer
Manufacturer Parent	Allegion
Manufacturer Warranty	30 Year Warranty
Material	Aluminum
Maximum Door Opening	180?
Maximum Door Range (deg.	110
Mount	Push Side
Mounting	Top Mount
Mounting Hole Size	2-1/2" x 6"
Mounting Location	Push Side
Mounting Style	Parallel Arm
Mounting Type	Push Side
Pack Size	1
Package Qty	1
Package Volume	0
Product Depth (in.)	4.5
Product Height	3-1/2 Inch
Product Height (in.)	16
Product Length	12-1/4 Inch
Product Material	Cast Iron
Product Type	Door Closer/Holder/Stop
Product Width	2-1/4 Inch
Product Width (in.)	6
Special Marks	Complies with ADA acces.
Spring Size	6
Standards	Grade 1-ANSI A156.4; UL.
Sub-Series	4116-EDA-AL-LH
Templating	Peel-n-Stick
Type	Surface
UNSPSC	30171514
Warranty	30 year

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G9236555	497.66	1	In Stock	8	Lcn		497.66 @ 1
	DK Hardware	4116-EDA LH AL	533.74	1	In Stock		LCN		533.74 @ 1
