Molex / Waldom 09-48-3055

mpn0009483055
brandname: Molex
manufacturername: Molex

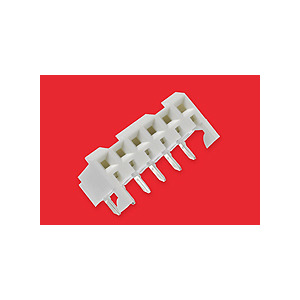

Molex / Waldom 09-48-3055 Connector Headers and PCB Receptacles

Molex / Waldom 09-48-3055 Connector Headers and PCB Receptacles

zoom

Brand: Molex / Waldom
PartNumber: 09-48-3055
PackageQuantity: 1
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Part No.	538-09-48-3055
Applications	Automotive, General Pur.
Brand	Molex
Color	Natural
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	15.0?in (0.38?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Gender	Socket (Female)
Contact Length - Post	0.145" (3.68mm)
Contact Material	Brass, Phosphor Bronze,.
Contact Plating	Gold
Contact Shape	Square
Contact Type	Female Socket
Current Rating	5 A
Current Rating (Amps)	4.5A
Fastening Type	Locking Ramp
Features	Board Hooks
Housing Material	Polybutylene Terephthal.
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.308" (7.82mm)
Insulation Material	Polyester
Manufacturer	Molex
Manufacturer Part No.	09-48-3055
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Angle	Right
Mounting Type	Board Edge, Through Hol.
Number of Positions	5
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-40?C ~ 80?C
Packaging	Tray
Part # Aliases	0009483055 9483055 A-41.
Part Status	Active
Pitch	3.96 mm
Pitch - Mating	0.156" (3.96mm)
Product Category	Headers & Wire Housings
Product Type	Headers - Socket
Row Spacing - Mating	-
Series	41815
Style	Board to Board or Cable
Termination	Solder
Termination Style	Through Hole
Tradename	KK
Type	PCB Receptacle
Voltage Rating	600V, 250 V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	MOLEX 09-48-3055	0.47	3696	169		MOLEX		0.47 @ 3696
	Onlinecomponents.com	09-48-3055	0.63	1	352		MOLEX / WALDOM		0.63 @ 1
	jensentools.com	10150397	0.63	1	169		Molex		0.63 @ 1
	NEP Electronics	09-48-3055	0.6471	3696	169		Molex		0.6471 @ 3696
	Allied Electronics	E5298656	0.66	616	354		Molex Woodhead/Brad		0.66 @ 616
	Heilind Electronics	09-48-3055	0.68867	62	62		MOLEX		0.68867 @ 62
	Newark	54H6676	0.838	3696	119		MOLEX		0.838 @ 3696
	us.rs-online.com	71453262	0.90867	1	119		Molex Incorporated		0.90867 @ 1
	Hotenda	H1419157	1.12	1	89		Molex		1.12 @ 1
	swatee.com	09-48-3055	1.53	1	415		Molex		1.53 @ 1
	AmazonSC	B07QQCZSWD	63.14	1	119		Molex / Waldom		63.14 @ 1
