Molex / Waldom 39-30-0060

mpn39-30-0060
brandname: Molex Incorporated
manufacturername: Molex Incorporated

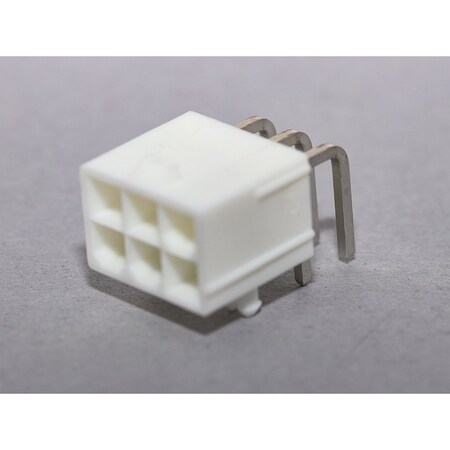

39-30-0060, Conn Power HDR 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Mini-Fit Jr Bag (50 Items)

39-30-0060, Conn Power HDR 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Mini-Fit Jr Bag (50 Items)

zoom

Brand: Molex / Waldom
PartNumber: 39-30-0060
Model: 39-30-0060
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Mfr Part Numb.	5569-06A2-210
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Male Pin
Contact Finish	Matte Tin Plated
Contact Finish - Mating	100.0?in (2.54?m)
Contact Finish - Post	Brass
Contact Finish Thicknes.	Tin
Contact Finish Thicknes.	General Purpose, Indust.
Contact Length - Mating	0.142" (3.60mm)
Contact Length - Post	-
Contact Material	Polyamide (PA66), Nylon.
Contact Plating Thickne.	2.54 ?m
Contact Shape	Tin
Contact Type	0.165" (4.20mm)
Current Rating	13 A
Current Rating (Amps)	-
Family Name	Mini-Fit Jr.
Fastening Type	-
Features	-
Flammability Rating	UL 94V-0
Hole Center to Center	4.2 mm
Ingress Protection	UL94 V-0
Insulation Color	-
Insulation Height	Square
Insulation Material	Board Lock
Mated Stacking Heights	100.0?in (2.54?m)
Material	Nylon
Material Flammability R.	Natural
Max. Temp.	240?C
Max. Voltage	600V
Mfr	Molex
Mounting Type	Solder
Number of Circuits	6
Number of Contacts	3, 6
Number of Positions	2
Number of Positions Loa.	Board to Cable/Wire
Number of Rows	2, 0.165" (4.20mm)
Operating Temperature	-
Orientation	Right Angle
Overall Contact Length	0.378" (9.60mm)
Package	Active
Part Status	Header
Pitch	4.20 mm (0.165")
Pitch - Mating	6
Plating Material	Matte Tin
Primary Type	Soft Shell
Row Spacing - Mating	All
Series	Bulk, 5569 Series
Shrouding	Through Hole, Right Ang.
Special Features	Low-Halogen
Standards	CSA Certified; UL E29179
Style	Shrouded - 4 Wall
Terminal Finish	Matte Tin Plated
Terminal Type	Through Hole
Termination	PCB, Locking Ramp
Type	Right Angle Header
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Sager Electronics	0039300060	0.489	1	185		Molex		0.489 @ 100
	Power and Signal Group	0039300060	0.5584	2400	100		Molex		0.5584 @ 2400
	Waldom	MOLEX 39-30-0060	0.58	95	14098		MOLEX		0.58 @ 100
	jensentools.com	10188496	0.72	1	14003		Molex		0.72 @ 100
	NEP Electronics	39-30-0060	0.75	100	14003		Molex		0.75 @ 100
	Newark	08R6102	0.935	1	1476		MOLEX		0.935 @ 100
	Digi-Key	WM21353-ND	1.0483	1	100		Molex		1.0483 @ 100
	us.rs-online.com	70266917	1.52	1	100		Molex Incorporated		1.52 @ 100
	RS Delivers	670-5710P	1.9476	1	120		Molex		1.9476 @ 100
	Radwell	39-30-0060	5.0	1	100		MOLEX		5.0 @ 100
	ebay.com_flex-direct	39-30-0060	12.6	1	100		Molex		12.6 @ 100
	AmazonTP	B07QQCSSBB	44.64	1	100	1	Molex / Waldom		44.64 @ 100
	ebay.com_mrhadi	39-30-0060	55.8	1	100		Molex		55.8 @ 100
	Zoro	G4043590	103.55	1	100		Molex		103.55 @ 100
