Schneider Electric HOM4284M225PC

B00P1Q1034

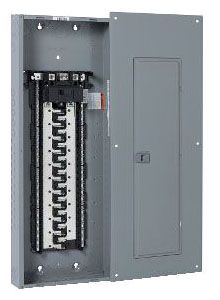

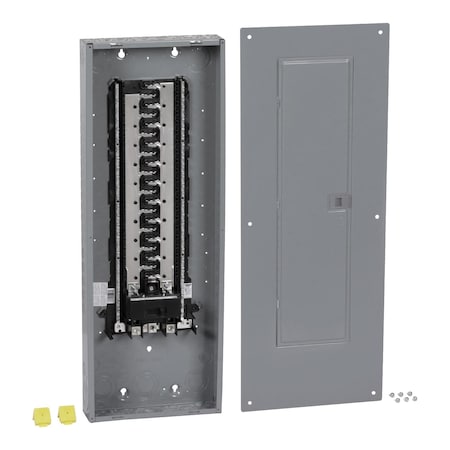

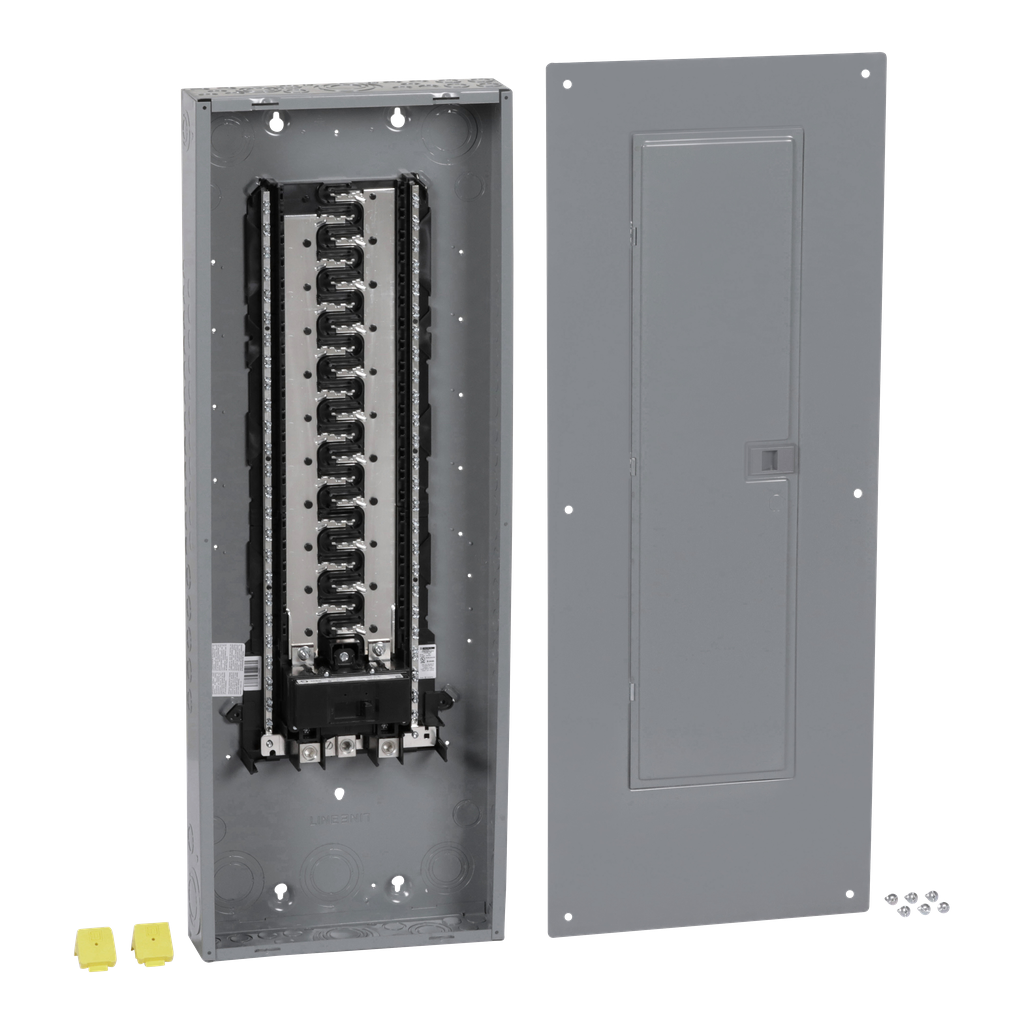

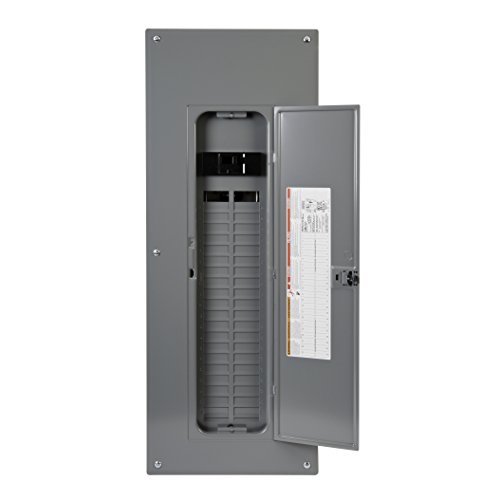

Square D - HOM4284M225PC Homeline 225-Amp 42-Space 84-Circuit Indoor Main Breaker Load Center with Cover, Plug-on Neutral Ready

Square D - HOM4284M225PC Homeline 225-Amp 42-Space 84-Circuit Indoor Main Breaker Load Center with Cover, Plug-on Neutral Readyzoom

Attributes

Key Value
Ambient Air Temperature.-5 ?C || 40 ?C
Amperage Rating225, 225 A
Awg GaugeAWG 4...250 kcmil coppe.
AWG RangeAWG 4...250 kcmil Coppe.
Box Number12
BrandSquare D by Schneider E.
Breaker MountingPanel
Cable SizeAWG 4...250 kcmil coppe.
California Proposition .Lead and lead compounds.
Catalog NumberHOM4284M225PC
China Rohs RegulationPro-active China RoHS d.
Colorbaked enamel Gray
Color FamilyGray
ConfigurationEnclosed
Country of OriginUnited States, US - Uni.
Country of Origin (subj.United States
Cover Typecombination flush/surfa.
Current Rating225 A
Depth95 mm
Device Compositiongrounding bar (ordered .
Dimensions14.25 in W x 3.75 in D .
ECCNEAR99
EnclosureBaked enamel Gray;Welde.
Enclosure Box SizeNEMA 12
Enclosure Materialwelded sheet steel
Enclosure TypeNEMA 1
Environmental DisclosureENVPEP1403002
Eu Rohs DirectiveCompliant
Frequency Rating50/60 Hz
Height1000 mm
Housing materialSteel
Interrupt Rating22 kA
ItemHomeline,LC,225 A,120/2.
Item TypeLoad Center
Line Rated Current225 A
Load Center Typemain breaker
Made in USAYes
Main TypePoN Convertible Mains (.
ManufacturerSchneider Electric
Materialtin plated aluminium bu.
Max. Single Pole Circui.42
Max. Tandem Circuits84
Mercury FreeYes
Mounting typeFlush/Plug-On
Nema Degree Of Protecti.NEMA 1 indoor
No. of Circuits84
No. of Spaces42
No. of Wires3-wire
Number of Circuits84
Number Of Circuits84
Number of Poles1
Number Of Spaces42
Number of Spaces42
Number Of Tandem Circui.42
Phase1, 1 phase
Product CertificationsUL listed file E-6294
Product Or Component Ty.Load Center
Provided Equipmentcircuit-breaker 1 ) 2P .
Range Of ProductHomeline
Rated Current225A
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
SeriesHOM Series
Short-Circuit Current22 kA
Special Featurestin plated aluminium bu.
StandardUL E-6294
Sub BrandHomeline
Surface Finishbaked enamel Gray
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Type1-Phase Convertible Neu.
UNSPSC39121101
UPC785901976271
UPC Code785901976271
Voltage Rating120 ; 240 V, 120/240 VA.
Width362 mm
Wire Size4 AWG to 250 kcmil, 4 A.
Wiring Configuration3-wire

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comHOM4284M225PC267.01In Stock10SQUARE D267.0 @ 1
thumbzoommayerelectric.comSQDHOM4284M225PC268.131In StockSQUARE D268.13 @ 1
thumbzoomRadwellHOM4284M225PC320.01In StockSCHNEIDER ELECTRIC SQUARE D320.0 @ 1
thumbzoomZoroG3307041406.671In Stock70Square D37.72406.67 @ 1
thumbzoomstandardelectricsupply.com2408224532.961In StockSquare D (Schneider Electric)532.96 @ 1
us.rs-online.com70920805690.761In StockSquare D690.76 @ 1
Graybar256496631541.74721In StockSquare D (Schneider Electric)1541.7472 @ 1
crescentelectric.com2274721580.191In StockSquare D by Schneider Electric1580.19 @ 1
