Crimp Supply 4-1564542-1

mpn4-1564542-1
brandname: TE Connectivity AMP Connectors
manufacturername: TE Connectivity AMP Connectors

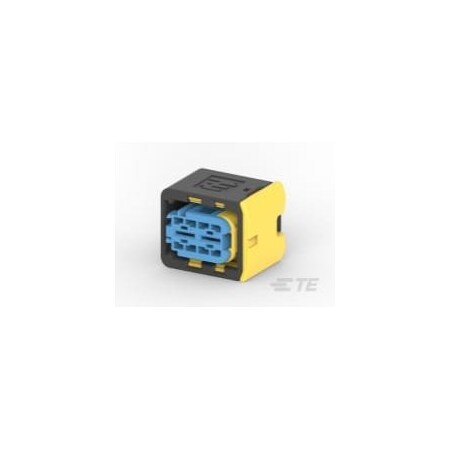

Deutsch - 4-1564542-1-4-1564542-1 - (Pack of 1)

Deutsch - 4-1564542-1-4-1564542-1 - (Pack of 1)

zoom

Brand: Crimp Supply
PartNumber: 4-1564542-1
PackageQuantity: 1
Manufacturer: Deutsch
Label: Deutsch

Attributes

Key	Value
Base Product Number	1564542
Body Material	PBT GF
Cable Exit Angle	Other
Category	Connectors, Interconnec.
Centerline (Pitch)&thin.	9?mm?[?.354?in?]
Circuit Application	Power
Color	Blue, Black
Connector Position Assu.	No
Connector Style	Housing for female term.
Connector System	Wire-to-Wire
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Degree of Protection	IP67
Fastening Type	Slide-On
Features	Sealed
Height?:</span> .	31.25?mm?[?1.23?in?]
Hybrid Connector	No
Length?:</span> .	44?mm?[?1.732?in?]
Mating Tab Width&thinsp.	6.3?mm?[?.248?in?]
Mfr	TE Connectivity AMP Con.
Mounting Feature	Without
Mounting Type	Free Hanging (In-Line)
Nominal Voltage Archite.	12, 24, 42, 60
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature R.	-40 ? 140??C?[?-40 ? 28.
Operating Voltage	60
Package	Bulk
Packaging Method	Box
Packaging Quantity	380
Part Status	Active
Pitch	0.354" (9.00mm)
Polarized	Yes
Primary Locking Feature	On the Terminal
Row Spacing	-
Sealable	Yes
Series	Heavy Duty Sealed Conne.
Serviceable	Yes
Strain Relief	No
Terminal Position Assur.	Yes
UL Flammability Rating	UL 94V-0
Width?:</span> .	25.7?mm?[?1.012?in?]

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	TE Connectivity	4-1564542-1	1.46	1	380		TE Connectivity (TE)		1.46 @ 1
	Digi-Key	3946253	1.68361	380	59	222	TE Connectivity AMP Connectors		1.68361 @ 380
	Newark	99X2441	1.95	380	51		TE CONNECTIVITY		1.95 @ 100
	Zoro	G205979405	3.05	30	51		Te Connectivity		3.05 @ 30
