Weg Electric 00112ET3E145JP-S

B07BQDRK8N

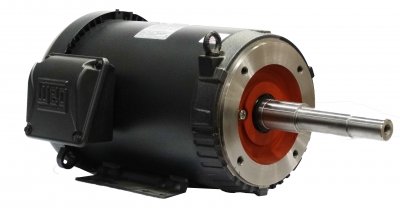

WEG Electric, 00112ET3E145JP-S, 1HP, 1200RPM, 3PH, 208V;230V;460V, 143/5JP Frame, Standard Flange, Foot Mount, TEFC, Close Coupled Pump Motor.

WEG Electric, 00112ET3E145JP-S, 1HP, 1200RPM, 3PH, 208V;230V;460V, 143/5JP Frame, Standard Flange, Foot Mount, TEFC, Close Coupled Pump Motor.zoom

Attributes

Key Value
Amperage Rating1.6 A
Application TypeJet Pump (JM/JP) Motors
ClassificationJM-JP & Jet Pump
Comments60 Hz
CompositionSteel
ConditionNew
ConstructionRolled Steel
Degree of ProtectionIP55
Description:MOTOR 1HP 6P 143/5JP WC.
Dimensions19.173 in L
Drive End Flange TypeC-Face
Efficiency %82.5 %
EnclosureTEFC, IC411 - TEFC, Tot.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight43.00
Family SeriesWEG Electric Motors
FL Amps1.58
FL Efficiency82.5
FlangesFlange C
Frame145JP, 143/5JP, 143JP
Frame RemarksClose Coupled Pump, Foo.
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower1 hp
HP1
Hz60
Insulation ClassClass F
Item ConditionFactory New
Item Number00112ET3E145JP-S
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00112ET3E145JP-S
MaterialRolled Steel
MFG Part #:00112ET3E145JP-S
Model14328031
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, C-Face Foot.
NEMA Frame143/5JP
Net Weight0 lbs
Nominal Voltage208 VAC
Number of Poles6
Number of Speeds1
Output Rating1 hp
Part Number00112ET3E145JP-S
Phase3, 3 ph
Product TypePump
Replaces00112ET3E145JP-S
RPM1,200 RPM, 1100 - 1200,.
Service Factor1.15
Speed1200 rpm
Speed (RPM)1200
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed1200 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
Torque Rating4.52 ft-lb
TypeClosed Couple Pump Cont.
Variable Torque Speed R.1000:1
Voltage230/460//190-220/380-41.
Voltage (AC)208 VAC
Volts208/230/460
Weight41.690000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com00112ET3E145JP-S352.01In StockWEG38.6352.0 @ 1
thumbzoomWalker Industrial00112ET3E145JP-S535.51In Stock17WEG535.5 @ 1
thumbzoommotorsandcontrol.com00112ET3E145JP-S535.51In StockWEG Electric43.0535.5 @ 1
kscdirect.comWEG 00112ET3E145JP-S539.841In StockWEG ELECTRIC CORP539.84 @ 1
thumbzoomMRO Supply2519315563.871In StockWEG563.87 @ 1
thumbzoomGalco00112ET3E145JP-S-WEG586.431In StockWEG Electric586.43 @ 1
thumbzoomindustrialrefrigerationparts.com00112ET3E145JP-S624.671In StockWEG41.69624.67 @ 1
thumbzoomDealers Electric00112ET3E145JP-S651.891In StockWeg43.0651.89 @ 1
thumbzoomPurvis00112ET3E145JP-S652.61In StockWEG652.6 @ 1
motionindustries.com06143002915.841In StockWEG Electric Corporation915.84 @ 1
