Hammond Manufacturing PJ1086W

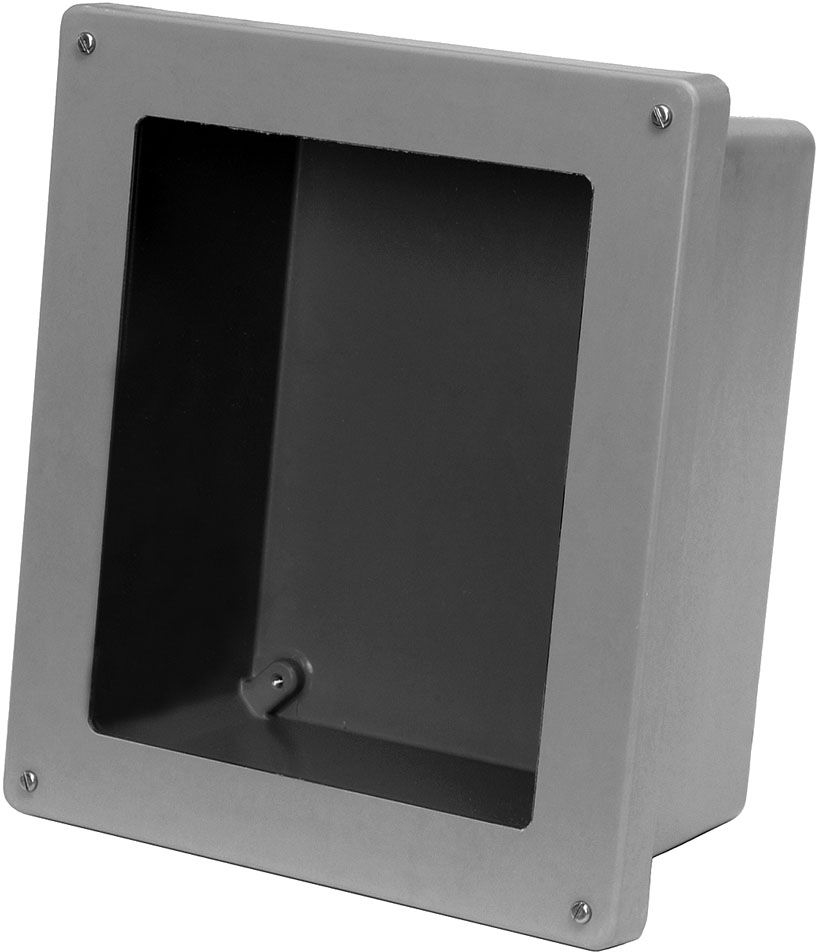

Hammond Manufacturing PJ1086W Non MET Screw CVR/Windowzoom

Hammond Manufacturing PJ1086W Non MET Screw CVR/Window

B00LT0HEZE

Attributes

Key Value
ApplicationDesigned for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides outstanding insulation and protection.
ApprovalsCSA, UL
Area (L x W)117in? (755cm?)
Back Panel Number14R0907
Base Product NumberPJ1086
BrandHammond Mfg.
Capacity512.92 cu-in
Catalog NumberPJ1086W
CategoryBoxes, Enclosures, Racks
ColorGray, Light Gray
CompositionNon-Metallic
Container TypeBox
Country of OriginUnited States
Cover DesignLift-Off Cover
Cover TypeLift-Off Screw
Cubic Capacity512.920394 Cubic in
Depth6.13 in
Depth (In)6.13
DescriptionBOX FIBERGLS 11.770"L X 9.9"W
Description:N4X Wallmount Encl - 10.13 x 8.26 x 6.13 - Fiberglass
DesignCover Included
Detailed DescriptionBox Fiberglass/Polyester Gray Cover Included 11.770" L x 9.900" W (298.96mm x 251.46mm) X 6.470" (164.34mm)
Digi-Key Part NumberPJ1086W-ND
Dimensions (H x W x D)10.13 x 8.26 x 6.13"
Door DesignLift-Off
Enclosure SeriesPJ
Estimated Weight6
Family SeriesHammond Manufacturing Enclosures, PJ Series
FeaturesWindow
FinishGray
Gross Weight6 lbs
Height10.13 in, 6.470" (164.34mm)
Height (In)10.13
IEC RatingIP66
Inner PanelSold Separately
Item NumberPJ1086W
Item TypeN4X Wallmount Encl.
Latching MechanismScrews
LockPadlock Latch
Locking FeatureScrew
Made in USAYes
ManufacturerHammond Manufacturing Co., Inc., Hammond Manufacturing
Manufacturer Part NumberPJ1086W
Manufacturer Product NumberPJ1086W
Manufacturer Standard Lead Time4 Weeks
MaterialFiberglass, Fiberglass/Polyester, Fiberglass Polyester, Polyester Plastic
Material Flammability Rating-
MFG Part #:PJ1086W
MfrHammond Manufacturing
MountingFeet, Wall
Mounting TypeWall
Nema Rating3R, 4X Fiberglass, 13
NEMA RatingNEMA 3R/4X/13, 3R, 4X, 13
NEMA Type4, 4X 12 and 13
Net Weight6 lbs
Nominal Depth6 "
Nominal Height10 "
Nominal Width8 "
Number of Doors1
Options IncludedGasketed Cover
PackageBox
Panel IncludedNo
Panel Size8.75 in H x 6.88 in W
Part NumberPJ1086W
Part StatusActive
Product SeriesPJ
Product StatusActive
RatingsIP66, NEMA 1,2,3,4,4X,12,13, UL-508
RoHSYes
SeriesPJ, PJ Series
Shipping InfoShipped from Digi-Key
Size10.13 in x 8.26 in x 6.13 in
Size / Dimension11.770" L x 9.900" W (298.96mm x 251.46mm)
Special FeaturesMolded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled. Enhanced UV inhibitors protect against outdoor weathering. 3/8 collar studs are provided for optional.
Standardcsa, ul, ce
StandardsUL, CSA, IEC, RoHS
Sub BrandPJ Series
Supplier:Hammond Manufacturing
Thickness-
TypeNon-Metallic, Wall Mount Enclosures
UPC062398041565, 623980415659
UPC:623980415659
Weight6 lbs (2.7 kg)
Width8.26 in
Width (In)8.26
Window/Clear CoverYes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comPJ1086W118.831In StockHAMMOND MFG118.83 @ 1
thumbzoomturtle.comHMC PJ1086W145.721In StockHammond Manufacturing145.72 @ 1
AmazonSCB00LT0HEZE167.111In StockHammond Manufacturing167.11 @ 1
thumbzoomSolutions DirectPJ1086W178.881In StockHammond Manufacturing178.88 @ 1
thumbzoomWalker IndustrialPJ1086W183.281In Stock17Hammond Manufacturing183.28 @ 1
Dale-ElectricPJ1086W184.881In StockHammond Manufacturing Co., Inc.184.88 @ 1
Hawk ElectronicsPJ1086W185.81In StockHammond Mfg.185.8 @ 1
thumbzoomgordonelectricsupply.comPJ1086W191.591In StockHAMMOND MFG191.59 @ 1
thumbzoomDigi-Key2569692207.331In StockHammond Manufacturing6.0207.33 @ 1
thumbzoomGalcoPJ1086W-HMND209.461In StockHammond Manufacturing6.0209.46 @ 1
thumbzoommotorsandcontrol.comPJ1086W209.471In StockHammond Manufacturing6.0209.47 @ 1
thumbzoomNewark61K1420215.6112HAMMOND215.61 @ 1
us.rs-online.com74724201215.631In StockHammond Manufacturing215.63 @ 1
kscdirect.comHAM PJ1086W219.921In StockHammond Manufacturing219.92 @ 1
thumbzoomcrescentelectric.com1168754302.331In StockHammond Mfg.302.33 @ 1
