Schneider Electric TMC2AQ2C

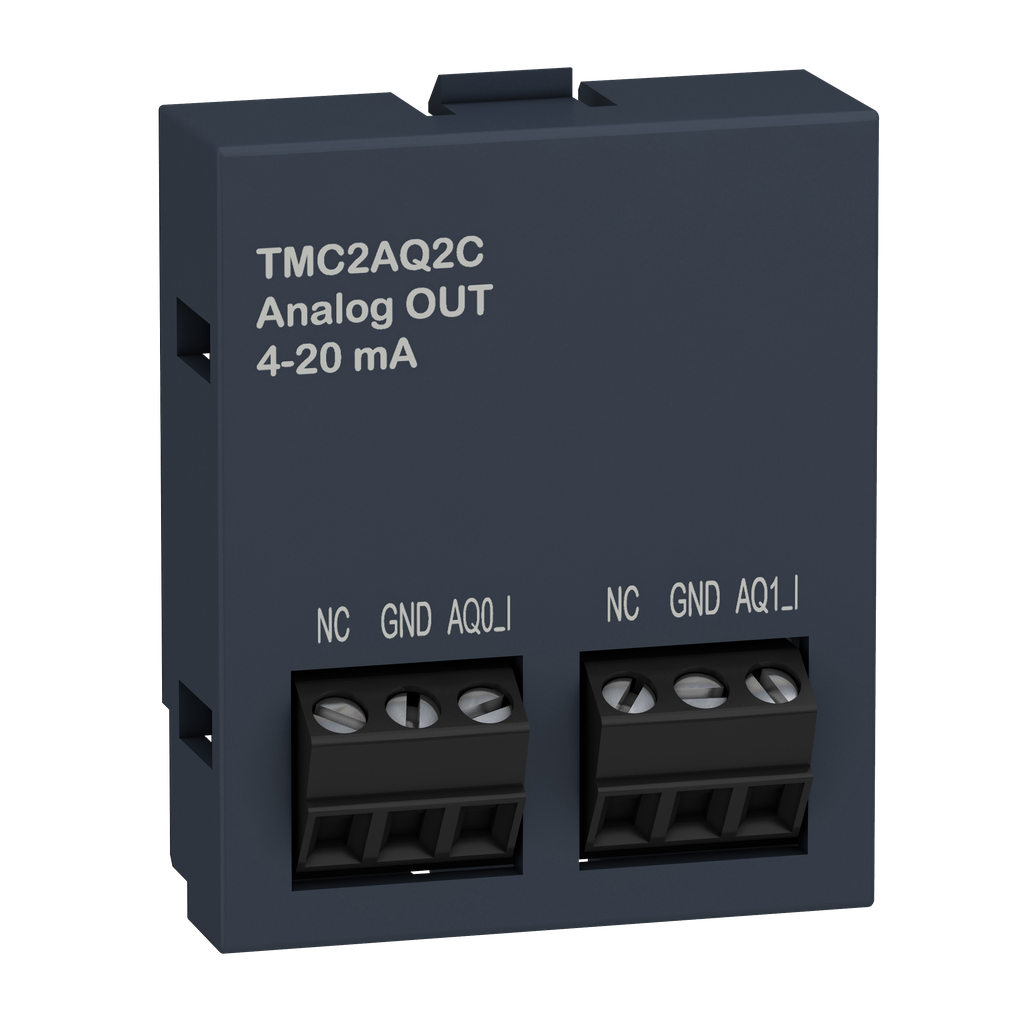

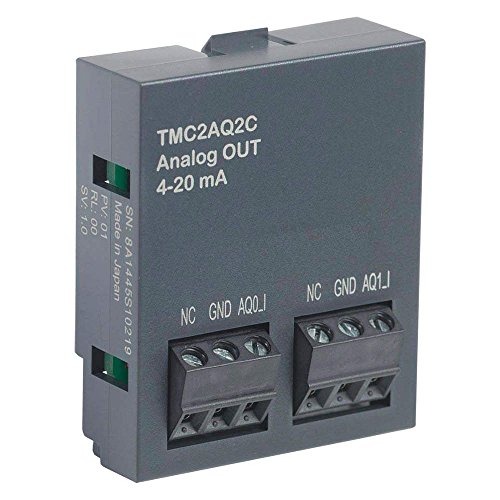

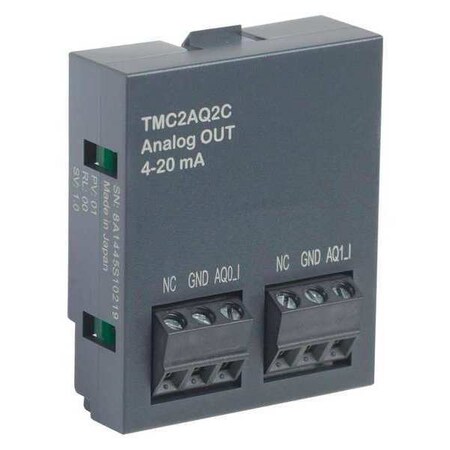

Telemecanique/Schneider Electric - TMC2AQ2C - Extension Module, Number of Inputs: 0, Number of Outputs: 2zoom

Telemecanique/Schneider Electric - TMC2AQ2C - Extension Module, Number of Inputs: 0, Number of Outputs: 2

B011ONANVW

Attributes

Key Value
(Modicon PLC) Analog Output TypeCurrent 4-20 mA
(Modicon PLC) Analog Outputs2
Absolute Accuracy Error+/- 1 % of full scale || +/- 0.3 % of full scale at 25 ?C
Accessory TypeOption Card, Output
Analogue Output Number2
Analogue Output Resolution12 bits
Analogue Output Typecurrent 4...20 mA
ApplicationModicon M221
BrandSchneider Electric
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Catalog NumberTMC2AQ2C
CategoryIndustrial Automation and Controls
China Rohs RegulationX
Circularity ProfileENVEOLI1403017EN
ComponentAccessories
Connection Cables2 SCREW TERMINAL BLOCKS (PITCH 3.81 MM) 1.5 MMA? 3 FOR OUTPUTS
Conversion Time20 ms
Country of OriginJapan, JP - Japan
Cross Talk<= 1 LSB
Depth15 mm
DescriptionANALOGUE OUTPUT CARTRIDGE, MODIC
Detailed DescriptionOption Card, Output Modicon M221 Series
Digi-Key Part Number4008-TMC2AQ2C-ND
ECCNEAR99
Electrical Connection3 x 1.5 mm? 2 screw terminal blocks pitch 3.81 mm for outputs
Environmental DisclosureENVPEP1403017EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Family NameModicon Controllers Family
Features2 Analog Voltage Outputs, I/O Extension Cartridge
For Use WithModicon Mfr. No.M221 PLC
For Use With/Related ProductsModicon M221 Series
Height41 mm
Immunity To Microbreaks10 ms
Input SignalCURRENT (4...20 MA)
Insulationnon-insulated between analogue output and internal logic
Interface2 SCREW TERMINAL BLOCKS (PITCH 3.81 MM) 1.5 MM? 3 FOR OUTPUTS
ItemExtension Module
Item TypeAnalogue output cartridge;Twisted shielded pairs cable
Load Typeresistive
Lsb Value3.91?A 4 to 20 mA current, 3.91 ?A 4...20 mA current
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product NumberTMC2AQ2C
Manufacturer Standard Lead Time5 Weeks
Maximum Cable Distance Between Devicestwisted shielded pairs cable <30 m output
Mercury FreeYes
MfrSchneider Electric
Net Weight0.015 kg
Non-Linearity+/- 0.01 %FS
Number of Inputs0
Number of Outputs2
Output SignalCurrent 4...20 mA;12 bits
PackageBox
Primary TypeCartridge
Product CompatibilityModicon M221C
Product Or Component Typeanalogue output cartridge
Product StatusActive
Product TypeExtension Module
Pvc FreeYes
Range Of ProductModicon M221
Reach RegulationReference contains Substances of Very High Concern above the threshold
Repeat Accuracy+/- 0.4 %FS
Rohs Exemption InformationYes
SeriesMODICON, Modicon M221 Series
Special Features3 x 1.5 mm? 2 screw terminal blocks pitch 3.81 mm for outputs
Stabilisation Time40 ms
StandardUL, CUL, CE
Sub BrandMODICON
Sub ComponentAnalog Output Module
Sustainable Offer StatusGreen Premium product
Temperature Drift+/- 0.02 %FS/?C
Toxic Heavy Metal FreeYes
TypeI/O Extension
Type Of Cabletwisted shielded pairs cable
UNSPSC32151705
UPC785901307631
UPC Code785901307631
Width35 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RS Delivers806-689398.616111Schneider Electric98.616 @ 1
rspsupply.comSCHNEIDER TMC2AQ2C121.631In StockSchneider Electric121.63 @ 1
thumbzoommayerelectric.comSQDTMC2AQ2C126.831In StockSQUARE D0.033126.83 @ 1
thumbzoomgordonelectricsupply.comTMC2AQ2C129.091In Stock10SQUARE D129.09 @ 1
thumbzoomZoroG0040139130.991In StockSchneider Electric0.04130.99 @ 1
thumbzoomRadwellTMC2AQ2C145.01In StockSCHNEIDER ELECTRIC TELEMECANIQUE145.0 @ 1
thumbzoomcrescentelectric.com271837151.361In StockSchneider Electric151.36 @ 1
thumbzoomDigi-Key16614194152.811In StockSchneider Electric152.81 @ 1
us.rs-online.com70406755155.21In StockSchneider Electric155.2 @ 1
thumbzoomNewark25AK1424165.1912SCHNEIDER ELECTRIC165.19 @ 1
Graybar25666539185.51681In StockSquare D (Schneider Electric)185.5168 @ 1
