Boston Gear F726-40-B5-G

B078YF4R9W

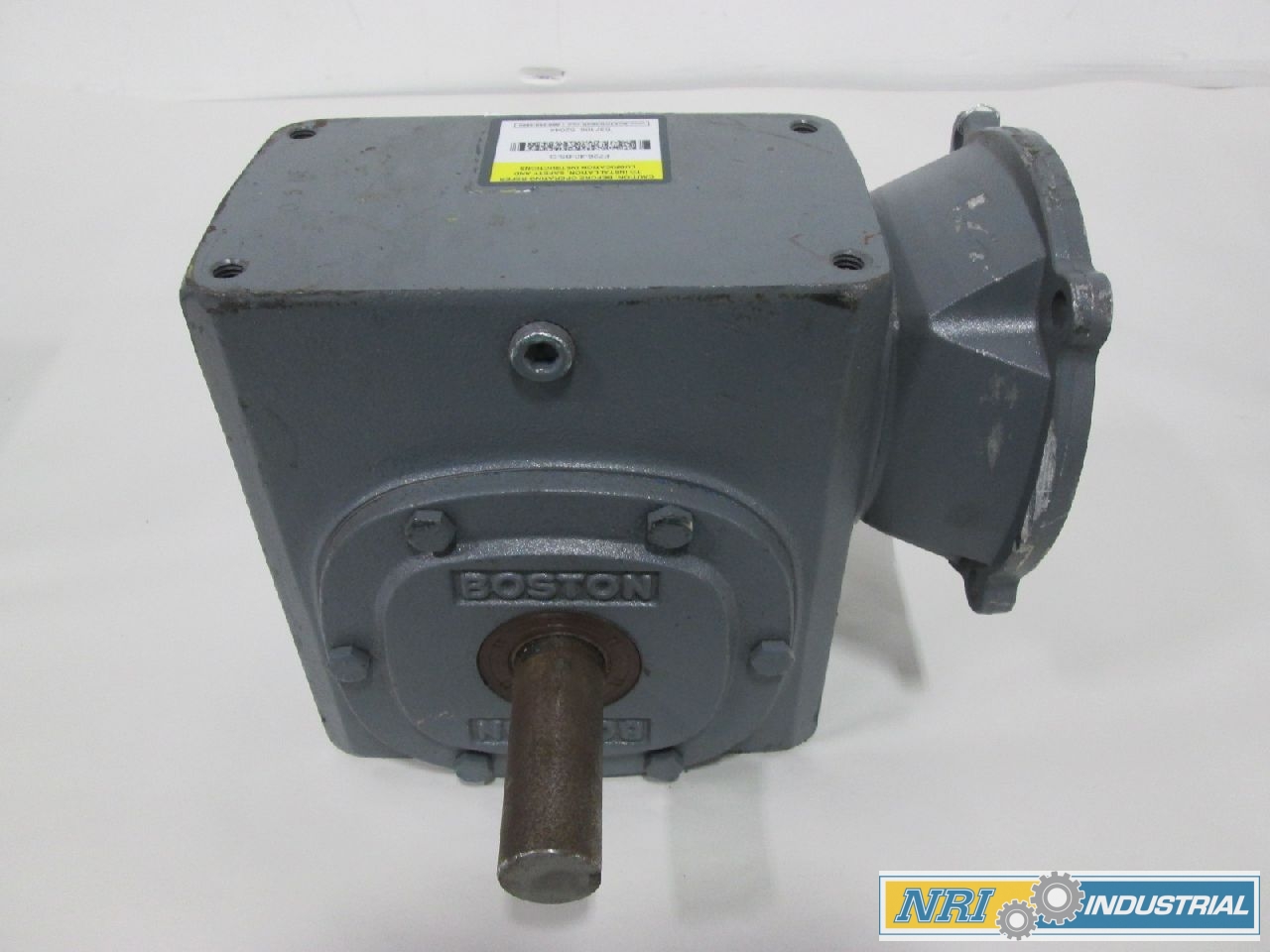

Boston GearWORM SPEED REDUCER (F726-40-B5-G)

Boston GearWORM SPEED REDUCER (F726-40-B5-G)zoom

Attributes

Key Value
BaseOptional
BearingsTapered Roller
Bore Dia.1-1/8"
Bore/Shaft Diameter1.125"
Center Distance2.6"
Country of Origin (subj.United States
Dimension U1 1/8 in
DutyStandard
FinishPowdered Epoxy Paint
Frame56c
Gear MaterialHardened and Ground Ste.
Gear TypeWorm
Housing MaterialCast iron
Input Flange56c
Input RPM1750 RPM
Input Size56c
Input StyleQuill
Input TypeFlange
ItemSpeed Reducer
LubricationKlubersynth UH1 6-460
Max. Input HP1 hp
Max. Output Torque1,066 in-lb
MountingAny Position
Nominal Output rpm43.8 rpm
Nominal Output RPM44 RPM
Nominal Ratio40:1
Number of Stages1
OutputLeft
Output Shaft Dia.1 1/8 in
Output Shaft Height2 15/16 in
Output Torque @ 1 HP800 in-lb
Output Torque @ 1.5 HP1,066 in-lb
Output Torque @ 1/40 HP3600 in.-lb.
Output TypeSolid Output Shaft
Overall Length11-1/4"
Overhung Load1,000 lb
Paint/CoatingGray
Pinion MaterialHardened Steel
Ratio40 to 1
Reducer Model No.F726-40-B5-G
ReductionSingle
RotationForward/Reversible
Seal TypeDouble Lip
Shaft OrientationRight Angle
Shaft ProjectionLeft Side
Single/Double Output/Un.Single Output
Solid/Hollow Output Sha.Solid
Speed Reducer TypeC-Face
StandardsAGMA Service Class II
Worm Center Distance2.62 in
Worm Gear MaterialBronze

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD331657246.441In StockBOSTON GEAR246.44 @ 1
thumbzoomZoroG26551071044.01In Stock26Boston Gear44.21044.0 @ 1
thumbzoomMRO Supply427451157.861In StockBoston Gear1157.86 @ 1
thumbzoomcbtcompany.comF726-40-B5-G1259.381In StockBoston Gear1259.38 @ 1
thumbzoomRaptor SuppliesAB2BZD1929.4176331In StockBOSTON GEAR1929.417633 @ 1
