- mpn4TJA8
- brandname: DAYTON
- manufacturername: DAYTON

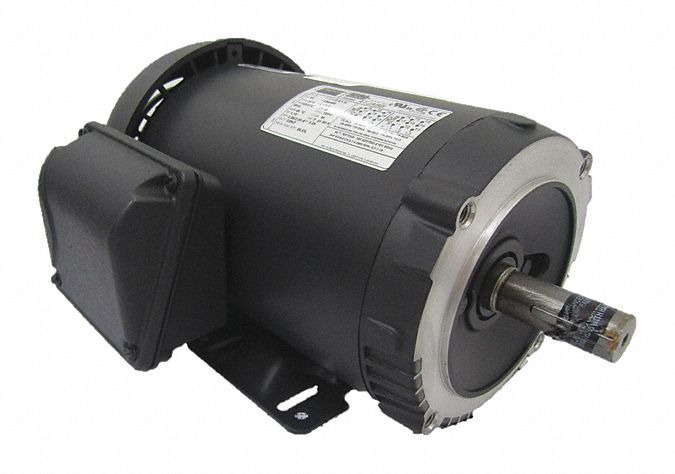

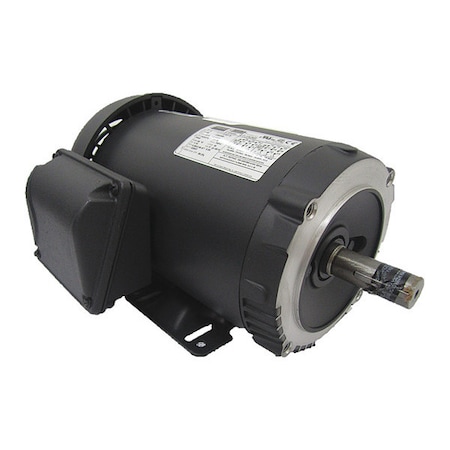

GP Motor,2 HP,3,505 RPM,230/460V,143/5TC
- Brand: Dayton
- PartNumber: 4TJA8
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Amps | 5.4-5.1/2.6 |
| Bearings | Ball |
| Brand | Dayton |
| CC Number | CC029A |
| Current Stock | 3 |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Enclosure Material | Steel |
| Enclosure Type | TEFC (Totally Enclosed . |
| Frame | 143/5TC |
| Full Load Amps | 5.1/2.6 |
| Green Certification or . | NEMA Premium(R) Rated |
| Green Environmental Att. | Product Contributes To . |
| HP | 2 |
| HP @ 50Hz | 2875 |
| Hz | 60 |
| Ins. Class | F |
| Insulation Class | F |
| International Shipping | No |
| Inverter Rated | Yes |
| Item | General Purpose Motor |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 11 5/8 in |
| Manufacturers Warranty . | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 11-5/8" |
| Motor Thermal Protection | None |
| Mounting | C-Face/Rigid |
| Mpn | 4TJA8 |
| Nameplate RPM | 3,505 |
| NEMA Design | B |
| No. of Speeds | 1 |
| Nominal Efficiency | 86.5 % |
| Number of Speeds | 1 |
| Overall Length | 13 7/8 in, 13-7/8" |
| Part Winding Start Capa. | No |
| Phase | 3, Three |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 3505 |
| RPM Range | 3,001-3,600 |
| Service Factor (SF) | 1.15 |
| Shaft Dia. | 7/8 in |
| Shaft Diameter | 7/8" Keyed |
| Shaft Length | 2 1/4 in, 2-1/4" |
| Ship Weight | 44 lbs. |
| SKU | ZO-G1028781 |
| Standards | CE, CSA, UL, UL Recogni. |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | None |
| UPC | 190735334461 |
| Voltage | 230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonSC | B07J29B4KW | 377.25 | 1 | In Stock | | CAI - DAYTON | | 377.25 @ 1 |
 | Zoro | G1028781 | 387.99 | 1 | 10 | | Dayton | 43.24 | 387.99 @ 1 |
| grainger.ca | GGE4TJA8 | 443.3223048 | 1 | In Stock | | DAYTON | 43.24 | 443.3223048 @ 1 |
 | simsupply.com | ZO-G1028781 | 459.24 | 1 | 3 | | Dayton | | 459.24 @ 1 |
 | sustainablesupply.com | C2777174 | 517.2 | 1 | In Stock | | Dayton | 43.24 | 517.2 @ 1 |
 | Raptor Supplies | AD9LNM | 600.128685 | 1 | In Stock | | DAYTON | | 600.128685 @ 1 |
| emotorpro.com | 4TJA8 | 726.32 | 1 | In Stock | | Dayton | 44.0 | 726.32 @ 1 |
