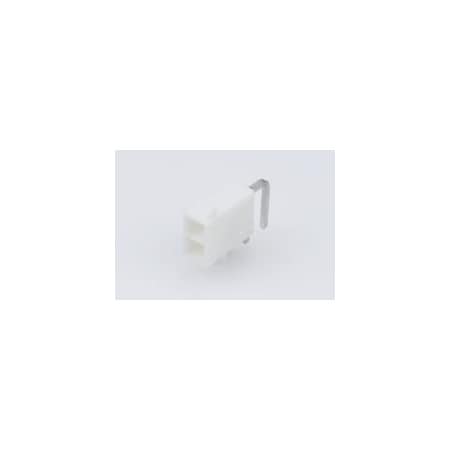

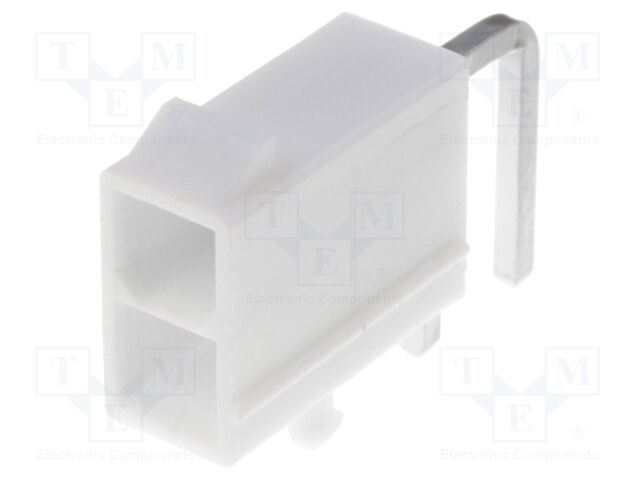

Molex 39300020

mpn39-30-0020
brandname: Molex Incorporated
manufacturername: Molex Incorporated

Molex 39-30-0020

Brand: Molex
PartNumber: 39300020
Model: 39-30-0020
Size: 1 Piece
PackageQuantity: 1
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Mfr Part Numb.	5569-02A2-210
Applications	General Purpose, Indust.
Base Product Number	003930
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Header
Contact Finish	Matte Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Length - Mating	-
Contact Length - Post	0.142" (3.60mm)
Contact Material	Brass
Contact Plating Thickne.	2.54 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	13 A
Current Rating (Amps)	-
Description	CONN HEADER R/A 2POS
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM21351-ND
Family Name	Mini-Fit Jr.
Fastening Type	Locking Ramp
Features	Board Lock
Flammability Rating	UL 94V-0
Hole Center to Center	4.2 mm
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.378" (9.60mm)
Insulation Material	Polyamide (PA66), Nylon.
Manufacturer	Molex
Manufacturer Product Nu.	0039300020
Manufacturer Standard L.	14 Weeks
Mated Stacking Heights	-
Material	Nylon
Material Flammability R.	UL94 V-0
Max. Temp.	240?C
Max. Voltage	600V
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Circuits	2
Number of Contacts	2
Number of Positions	2
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Orientation	Right Angle
Overall Contact Length	-
Package	Bulk
Package Quantity	1
Pitch	4.20 mm (0.165")
Pitch - Mating	-
Plating Material	Matte Tin
Primary Type	Soft Shell
Product Status	Active
Row Spacing - Mating	0.165" (4.20mm)
Series	Mini-Fit Jr 5569, 5569 .
Shrouding	Shrouded - 4 Wall
Special Features	Low-Halogen
Standards	CSA Certified; UL E29179
Style	Board to Cable/Wire
Terminal Finish	Matte Tin Plated
Terminal Type	Through Hole
Termination	PCB, Solder
Type	Right Angle Header
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
NEP Electronics	39-30-0020 PB	0.2	25	50		Molex	0.2 @ 50
Heilind Electronics	39-30-0020	0.25665	600	22652		MOLEX	0.25665 @ 600
Sager Electronics	0039300020	0.272	1	9437		Molex	0.272 @ 50
us.rs-online.com	70266919	0.29	1	50		Molex Incorporated	0.29 @ 50
Onlinecomponents.com	39-30-0020	0.305	1	1946		MOLEX / WALDOM	0.305 @ 50
Power and Signal Group	0039300020	0.3148	8000	50		Molex	0.3148 @ 8000
Newark	56H8318	0.428	1	5034		MOLEX	0.428 @ 50
Digi-Key	930320	0.674	1	77034		Molex	0.674 @ 50
RS Delivers	670-5708P	1.0296	1	50		Molex	1.0296 @ 50
Radwell	39-30-0020	1.4	1	50		MOLEX	1.4 @ 50
TME	MX-39-30-0020	1.495	1	672		MOLEX	1.495 @ 50
AmazonTP	B06Y6J5422	41.04	1	50	1	Molex	41.04 @ 50
Zoro	G7769471	126.0	150	50		Molex	126.0 @ 150
