Molex / Waldom 39-30-0100

mpn39-30-0100
brandname: Molex Incorporated
manufacturername: Molex Incorporated

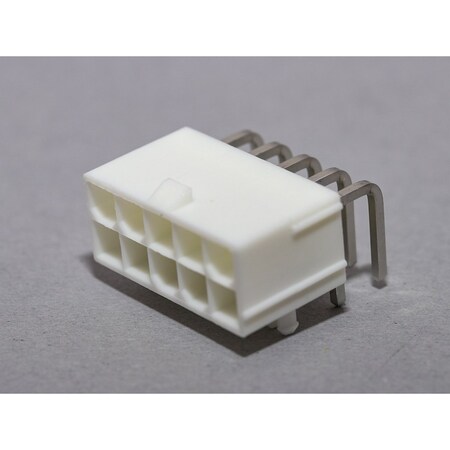

Molex / Waldom 39-30-0100 Connector Power

Brand: Molex / Waldom
PartNumber: 39-30-0100
PackageQuantity: 1
Binding: Electronics
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Mfr Part Numb.	5569-10A2-210
Applications	General Purpose, Indust.
Base Product Number	003930
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Header
Contact Finish	Matte Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Length - Mating	-
Contact Length - Post	0.142" (3.60mm)
Contact Material	Brass
Contact Plating Thickne.	2.54 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	13 A
Current Rating (Amps)	-
Description	CONN HEADER R/A 10POS 4.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM21355-ND
Family Name	Mini-Fit Jr.
Fastening Type	Locking Ramp
Features	Board Lock
Flammability Rating	UL 94V-0
Hole Center to Center	4.2 mm
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.378" (9.60mm)
Insulation Material	Polyamide (PA66), Nylon.
Manufacturer	Molex
Manufacturer Product Nu.	0039300100
Manufacturer Standard L.	14 Weeks
Mated Stacking Heights	-
Material	Nylon
Material Flammability R.	UL94 V-0
Max. Temp.	240?C
Max. Voltage	600V
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Circuits	10
Number of Contacts	10
Number of Positions	10
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Orientation	Right Angle
Overall Contact Length	-
Package	Bulk
Package Quantity	1
Pitch	4.20 mm (0.165")
Pitch - Mating	0.165" (4.20mm)
Plating Material	Matte Tin
Primary Type	Soft Shell
Product Status	Active
Row Spacing - Mating	0.165" (4.20mm)
Series	Mini-Fit Jr 5569, 5569 .
Shrouding	Shrouded - 4 Wall
Special Features	Low-Halogen
Standards	CSA Certified; UL E29179
Style	Board to Cable/Wire
Terminal Finish	Matte Tin Plated
Terminal Type	Through Hole
Termination	Solder
Type	Right Angle Header
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Waldom	MOLEX 39-30-0100	0.69	80	914	MOLEX	0.69 @ 80
Component Electronics	299-6550	0.77	1	95	Molex	0.77 @ 10
Power and Signal Group	0039300100	0.8177	1200	10	Molex	0.8177 @ 1200
jensentools.com	10188500	0.92	1	314	Molex	0.92 @ 10
NEP Electronics	39-30-0100	0.9559	80	514	Molex	0.9559 @ 80
Avnet	0039300100	0.958	1	9449	Molex	0.958 @ 10
Onlinecomponents.com	39-30-0100	1.143	30	10	Molex	1.143 @ 30
Newark	28AC9190	1.75	1200	10	MOLEX	1.75 @ 1200
Digi-Key	930324	1.947	1	10	Molex	1.947 @ 10
TME	MX-39-30-0100	2.22	1	30	MOLEX	2.22 @ 10
us.rs-online.com	70374111	2.26	1	10	Molex Incorporated	2.26 @ 10
RS Delivers	670-5723P	2.7144	1	1610	Molex	2.7144 @ 10
Radwell	39-30-0100	7.0	1	10	MOLEX	7.0 @ 10
Zoro	G2759398	87.0	60	10	Molex	87.0 @ 60
