- mpn7800 OMP
- brandname: Reelcraft
- manufacturername: Reelcraft

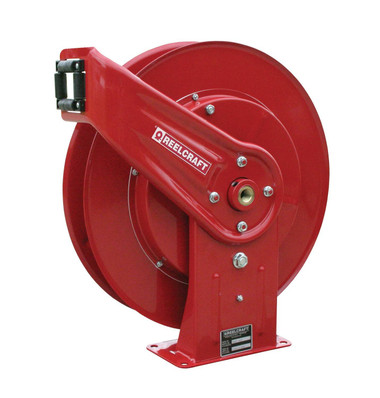

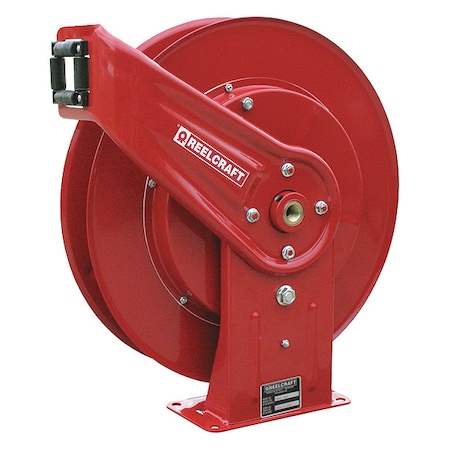

Reelcraft 7800 OMP Heavy Duty Spring Retractable Hose Reel, 50' Oil Hose Not Included
- Brand: Reelcraft
- PartNumber: 7800 OMP
- Model: 7800 OMP
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Reelcraft
- Label: Reelcraft
Attributes
| Key | Value |
|---|
| Application | Oil |
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Brand | Reelcraft Industries, R. |
| Catalog Page | N/A |
| Color | Red |
| Corrosion-Resistant | Yes |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Drive Type | Spring, Spring Return |
| Enclosed | No |
| Fasteners Included | No |
| Features | Heavy Duty |
| For Dual Hose | No |
| Ft | 50' |
| Hose Capacity | 50 ft (3/8 in I.D.) |
| Hose Included | Hose Not Included |
| Hose Inside Diameter | 1/2 in |
| Hose Outside Diameter | 0.75 in |
| Hose Reel Primary Appli. | Oil |
| Hose Reel Type | Free Standing Hose Reel. |
| Hose/Cable? | No |
| I.D. | 1/2" |
| Includes Hose | No |
| Includes Leader Hose | No |
| Inlet | 1/2 in (F)NPTF, 1/2" NP. |
| Inlet / Outlet | 1/2" NPT (F) / 1/2" NPT. |
| Item | Spring Return Hose Reel |
| Item? | 38L519 |
| Latch Type | Spring Loaded |
| Length | 50' |
| Material | Steel |
| Max Temp (?F) | 210 |
| Maximum Operating Press. | 3,000 psi |
| Maximum Operating Tempe. | 210 Degrees F, 210 ?F |
| Maximum Working Pressure | 3250 psi |
| Mfr. Model? | 7800 OMP |
| Minimum Operating Tempe. | 32 Degrees F, 32 ?F |
| Mount Base Height | 9 in |
| Mount Base Width | 5 in |
| Mount Hole Diameter | 1/2 in |
| Mounting Hole Center to. | 3 7/8 in, 3-7/8 in |
| Mounting Hole Center to. | 7 7/8 in, 7-7/8 in |
| MPN | 7800 OMP |
| Number of Guide Arms | Single Arm |
| Number of Mount Holes | 4 |
| O.D. | 0.82, 0.82" |
| Outlet | 1/2" NPT(F) |
| Overall Dimensions | 19 3/4 in L x 7 in W x . |
| Overall Height | 20-1/4 in, 20 1/4 in |
| Overall Length | 19 3/4 in, 19-3/4 in |
| Overall Width | 7 in |
| Pedestal Type | Single Pedestal |
| Pressure | 3000 psi |
| Product | Spring Retractable Hose. |
| Product Type | Simple product |
| Promotion Restriction | Not eligible for promot. |
| PSI | 3000 psi |
| Reel Color | Red |
| Reel Diameter | 9 in |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 7 in |
| Series | 7000 |
| Speed Limited Retraction | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1/2 in |
| Swivel Inlet Thread Size | 1/2 in - 14 |
| Swivel Inlet Type | NPT |
| Swivel Material | Nickel Plated Steel |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 1/2 in |
| Swivel Outlet Thread Si. | 1/2 in - 14 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| UNSPSC | 40142121 |
| UPC | 699567001331 |
| Weight | 38.000000, 46 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonSC | B0082BLJ54 | 320.99 | 1 | In Stock | | Reelcraft | | 320.99 @ 1 |
 | Zoro | G0660600 | 362.35 | 1 | In Stock | 26 | Reelcraft | 46.0 | 362.35 @ 1 |
 | andersonprocess.com | 7800 OMP | 417.6 | 1 | In Stock | 26 | Reelcraft | 38.0 | 417.6 @ 1 |
 | MRO Supply | 2208081 | 438.85 | 1 | In Stock | | Reelcraft | | 438.85 @ 1 |
 | rshughes.com | 699567-00133 | 486.0 | 1 | In Stock | | Reelcraft Industries | | 486.0 @ 1 |
 | intlairtool.com | 7800 OMP | 493.78 | 1 | In Stock | 49 | Reelcraft | 57.0 | 493.78 @ 1 |
| Grainger | 38L519 | 634.77 | 1 | In Stock | | REELCRAFT | 46.0 | 634.77 @ 1 |
