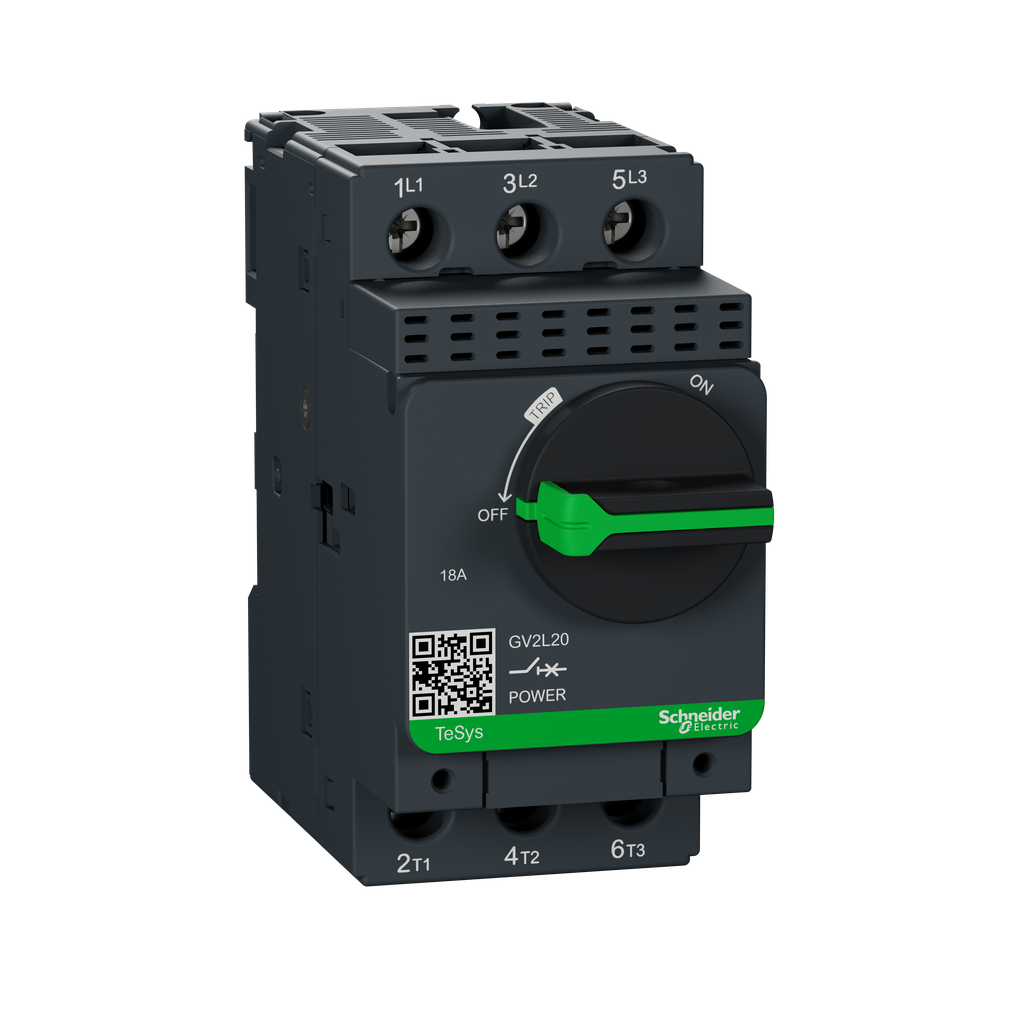

GV2L20

B0028YIS50

Motor Drives MAN-SWITCH 600VAC 18AMP IEC

Motor Drives MAN-SWITCH 600VAC 18AMP IECzoom

Attributes

Key Value
[Ics] Rated Service Sho.100 % 230/240 V AC 50/6.
[Ith] Conventional Free.18 A IEC 60947-4-1
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.690 V AC 50/60 Hz IEC 6.
[Uimp] Rated Impulse Wi.6 kV IEC 60947-2
Ambient Air Temperature.-20-60 ?C
Ambient Air Temperature.-40-80 ?C
Applicationmotor protection
BrandSchneider Electric
Breaking Capacity100 kA Icu 230/240 V AC.
California Proposition .Antimony oxide & Antimo.
Catalog NumberGV2L20
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI2211002
Climatic WithstandIACS E10
Colordark grey
ConnectionSCREW CLAMP TERMINALS 2.
Control Typerotary handle
Country of OriginFrance
Depth97 mm
Device Applicationmotor protection
Device Short NameGV2L
Electrical Durability100000 cycles AC-3 415 .
Environmental DisclosureENVPEP2211002
Eu Rohs DirectiveCompliant
Fire Resistance960 ?C IEC 60695-2-11
Fixing Mode35 mm symmetrical DIN r.
Height89 mm
Ik Degree Of ProtectionIK04
Ip Degree Of ProtectionIP20 IEC 60529
Item TypeMotor circuit breaker;G.
Line Rated Current18 A
Made in USANo
Magnetic Tripping Curre.223-223 A
ManufacturerSchneider Electric
Mechanical Durability100000 cycles
Mechanical Robustnessshocks 30 Gn for 11 ms .
Mercury FreeYes
Motor Power Kw7.5-7.5 kW 400/415 V AC.
MountingScrew
Net Weight0.33 kg
Network Frequency50/60 Hz IEC 60947-2
Network TypeAC
Number of Poles3
Operating Altitude6561.68 ft (2000 m)
Poles Description3P
Power Dissipation Per P.1.8 W
Product CertificationsCCC || UL || CSA || EAC.
Product NameTeSys GV2 || TeSys Deca
Product Or Component Ty.motor circuit breaker
RangeTeSys Deca
Rated Dutycontinuous IEC 60947-4-1
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesTeSys Deca Series
Size3.82
Special FeaturesIK04
Standard960 A Degrees C IEC 606.
StandardsEN/IEC 60947-2 || EN/IE.
Sub BrandTeSys GV2;TeSys Deca
Suitability For Isolati.yes IEC 60947-1 ? 7-1-6
Sustainable Offer StatusGreen Premium product
Tightening Torque1.7 N.m screw clamp ter.
Trip Unit Technologymagnetic
UPC785901076865
UPC Code785901076865
Utilisation Categorycategory A IEC 60947-2 .
Voltage Rating690 V AC 50/60 Hz IEC 6.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEGV2L2085.2712SCHNEIDER ELECTRIC85.27 @ 1
RS Delivers608-8343131.12419Schneider Electric131.124 @ 1
thumbzoomkempstoncontrols.co.ukGV2L20133.1434261In StockSchneider133.143426 @ 1
standardelectricsupply.com2230936218.161In StockSchneider Electric218.16 @ 1
thumbzoomblackhawksupply.comGV2L20222.751In StockSquare D222.75 @ 1
thumbzoommostelectric.comGV2L20237.6911SQUARE D/TELEMECANIQUE237.69 @ 1
thumbzoommayerelectric.comSQDGV2L20240.441In StockSQUARE D0.726240.44 @ 1
thumbzoomNewark15B8783300.613SCHNEIDER ELECTRIC300.6 @ 1
us.rs-online.com70379131322.6511Schneider Electric322.65 @ 1
thumbzoomcrescentelectric.com60175361.961In StockSchneider Electric361.96 @ 1
