TE Connectivity 3-647050-9

B010IIV3OA

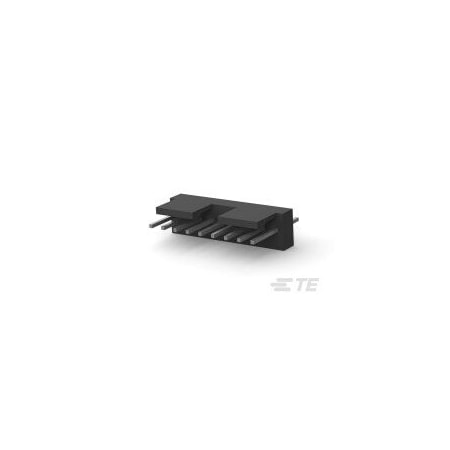

TE Connectivity Part Number 3-647050-9

TE Connectivity Part Number 3-647050-9zoom

Attributes

Key Value
ApplicationSignal, Printed Circuit.
ApplicationsGeneral Purpose
Base Product Number647050
CategoryConnectors, Interconnec.
Connection MaterialCopper Alloy
Connection TypeThrough Hole - Solder
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.80.0?in (2.03?m)
Contact Finish Thicknes.150.0?in (3.81?m)
Contact Length - Mating0.290" (7.37mm)
Contact Length - Post0.135" (3.43mm)
Contact MaterialCopper Alloy
Contact Plating MaterialNickel
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)Varies by Wire Gauge
DescriptionCONN HEADER VERT 9POS 2.
Detailed DescriptionConnector Header Throug.
Digi-Key Part Number3-647050-9-ND
Fastening TypeFriction Lock
Features-, Unshrouded Header
Ingress Protection-
Insulation ColorBlack
Insulation Height0.347" (8.81mm)
Insulation MaterialPolyamide (PA4T), Nylon.
ItemConnector
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.3-647050-9
Manufacturer Standard L.20 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
Max. Temp.221 Degrees F
Max. Voltage250V AC
MfrTE Connectivity AMP Con.
Mounting TypeBoard Mount; Vertical; .
Number of Positions9
Number of Positions Loa.All
Number of Rows1
Operating Temperature-55?C ~ 105?C
Overall Contact Length0.550" (13.97mm)
Overall Length0.2 in
PackageBulk
Package Quantity1
Pin Length (In.)0.29 in
Pitch - Mating0.100" (2.54mm)
Product StatusActive
Row Spacing - Mating-
SeriesMTA-100
ShroudingShrouded - 1 Wall
StandardsUL, CSA Listed
StyleBoard to Cable/Wire
Terminal TypeStraight Pin
TerminationSolder
Voltage Rating250VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 3-647050-91.8130995TE CONNECTIVITY/AMP BRAND1.81 @ 30
Newark18R25892.15200010AMP - TE CONNECTIVITY2.15 @ 1000
thumbzoomDigi-Key23089372.9130995TE Connectivity AMP Connectors2.91 @ 30
Onlinecomponents.com3-647050-93.3711000TE Connectivity / AMP Brand3.37 @ 10
thumbzoomZoroG30092841479.5110Te Connectivity79.5 @ 10
