- mpnHBD-4-48
- brandname: VESTIL
- manufacturername: VESTIL

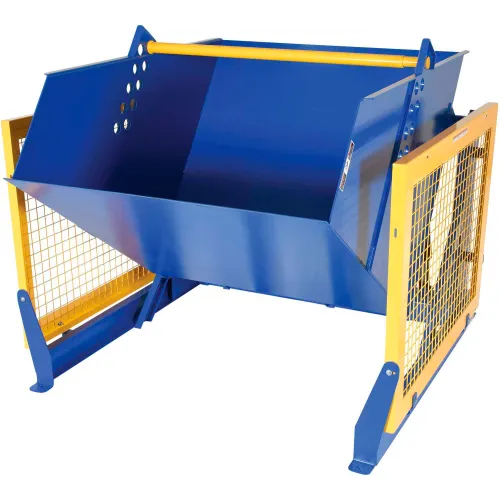

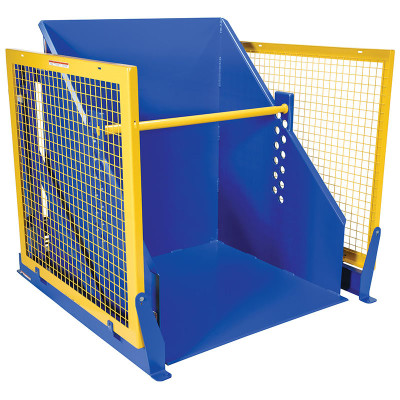

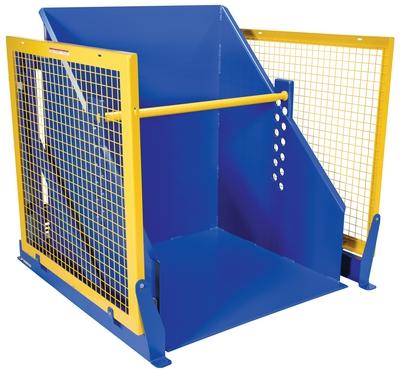

Vestil HBD-4-48 Electric Hydraulic Box Dumper, 4000 Capacity, Dump Height 48", Rotated Height 129-1/2", Lowered Height 3/8", Maximum Rotation 135 Degree
- Brand: Vestil
- PartNumber: HBD-4-48
- Model: HBD-4-48
- Color: Blue
- Size: One Size
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Vestil
- Label: Vestil
Attributes
| Key | Value |
|---|
| Assembly Required | No |
| Base Length | 50 in |
| Base Width | 52 in |
| Chute Length | 52 in |
| Chute Material | Steel |
| Chute Reach at Full Rot. | 10 |
| Chute Width | 50 in |
| Color | Blue |
| Color - Hoppers and Cub. | Frame, Chute: Blue; Gua. |
| Compliance / Standards | A.W.S |
| Container Material - Ho. | Heavy Duty Welded Steel |
| Control Pendant Cord Le. | 8 ft |
| Control Type | Hand Control Pendant |
| Country of Origin (subj. | United States |
| Dump Angle | 45 ?, 45 Degrees |
| Dump Angle (degree) | 45 |
| Dump Height | 48 in |
| Dump Height (in.) | 48 |
| Finish | Frame, Chute: Liquid Pa. |
| Finish / Coating | Painted Blue |
| Frame Material | Steel |
| Hold Down Increments | 2 in |
| Hold Down Range | 24 in to 36 in |
| Hold Downs (in.) | 18-42 |
| Hopper Material | Welded Steel |
| Hopper Type | Hydraulic Box |
| Includes | Protective Mesh Side Sc. |
| Item | Hydraulic Box Dumper |
| Level Height | 65 in |
| Load Capacity | 4000 lbs, 4,000 lb |
| Load Capacity - Hoppers. | 4000 lb. |
| Lowered Height | 3/8 in |
| Lowered Height (in.) | 3/8 |
| Manufacturer | Vestil Manufacturing |
| Material | Steel |
| Max. Chute Reach | 10 in |
| Max. Rotation Angle | 135 Degrees |
| Maximum Rotation Travel. | 135 |
| Motor Horsepower | 2 |
| Motor HP | 2 HP, 2 |
| Overall Dimension | 67 L x 64 W x 48 H in |
| Overall Height | Level: 65"; Rotated: 12. |
| Overall Length | 68-1/2", 67 in |
| Overall Width | 69", 68 in |
| Package Quantity | 1 Each |
| Phase | 3, Three |
| Product Type | Box Dumper |
| Rotated Height | 129-1/2 in |
| Rotated Height (in.) | 129-1/2 |
| Rotation Height | 111 in |
| Special Features | Heavy-Duty |
| Type | Hydraulic Box Dumper |
| Uniform Capacity (lbs.) | 4000 |
| Usable Chute Length (in. | 50 |
| Usable Chute Width (in.) | 52 |
| Voltage | 460/3 Phase, 460 V |
| Voltage Rating | 208-230/460 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB54057 | 7918.0 | 1 | In Stock | 60 | Vestil | | 7918.0 @ 1 |
 | usmegastore.com | HBD-4-48 | 8107.0 | 1 | In Stock | | Vestil | | 8107.0 @ 1 |
 | heavydutydepot.com | HBD-4-48 | 8107.0 | 1 | In Stock | | Vestil Manufacturing | | 8107.0 @ 1 |
 | toolfetch.com | VES-HBD-4-48 | 8329.0 | 1 | In Stock | | VESTIL | | 8329.0 @ 1 |
 | Industrial Safety | VESTIL-HBD-4-48 | 8706.99 | 1 | In Stock | | Vestil Manufacturing | | 8706.99 @ 1 |
 | Zoro | G3367205 | 8730.26 | 1 | In Stock | 107 | Vestil | 1970.0 | 8730.26 @ 1 |
 | hantover.com | 47532 | 8960.43 | 1 | In Stock | | VESTIL | | 8960.43 @ 1 |
 | AceTool | VES-HBD-4-48 | 9673.88 | 1 | In Stock | | Vestil | | 9673.88 @ 1 |
| Grainger | 45MR26 | 10058.0 | 1 | In Stock | 22 | VESTIL | | 10058.0 @ 1 |
 | certifiedmtp.com | V103.HBD-4-48 | 10199.98 | 1 | In Stock | | Vestil | | 10199.98 @ 1 |
 | National Supply Network | 64043565 | 11889.16 | 1 | In Stock | | Vestil | | 11889.16 @ 1 |
 | Guardian | 64043565 | 13711.91 | 1 | In Stock | | Vestil | | 13711.91 @ 1 |
 | Raptor Supplies | AG7TTV | 14739.6901275 | 1 | In Stock | | VESTIL | | 14739.6901275 @ 1 |
 | bscsource.com | HBD448 | 14814.29 | 1 | In Stock | | Vestil | | 14814.29 @ 1 |
