Atlas Sound AL2450

mpnAL2450
brandname: ATLAS SOUND
manufacturername: ATLAS SOUND

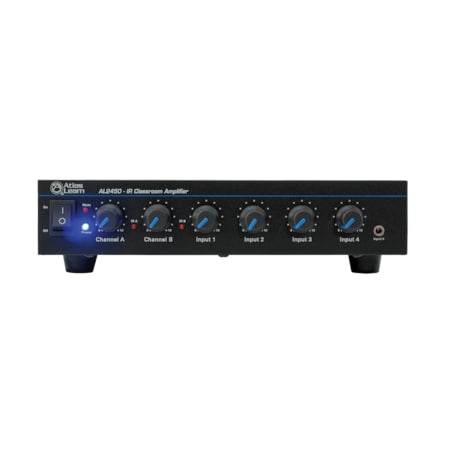

AtlasIED AL2450 Integrated Infrared Receiver and System Amplifier

Brand: Atlas Sound
PartNumber: AL2450
Model: 405021461-00
PackageQuantity: 1
Binding: Camera
Manufacturer: Atlas Sound
Label: Atlas Sound

Attributes

Key	Value
100V	1 x 50-Watts
70.7V	1 x 50-Watts
8 Ohm	1 x 50-Watts
Accessory Inputs	0
Accessory Slot	NA
Air Inlet Filter	None
AL2430-RMK	Rack Mount Kit for AL24.
Amp Topology	Class D
Amplifier Configuration	1 CH
Average Power 70.7V, Al.	Amps - 490mA / Watts - .
Average Power 8 Ohms, A.	Amps - 610mA / Watts - .
Control Ports (Rear Pan.	No
Cooling Air Flow Direct.	NA
Cooling System	Convection
Country of Origin (subj.	Unknown
Crosstalk	CH1-2 & CH 2-1 NA
Dimensions	Unit 8.5" W x 1.75" H x.
DSP Internal	No
Frequency Response	20Hz - 20kHz +/- 2dBV
Front Panel	Rotary Stepped Attenuat.
Functions	Relay Output NO/NC (5A@.
Gain	35dB
Idle Active	Amps - 170mA / Watts - .
Input Impedance	56k Computer / 22k Mult.
Input Quantity	6 (Four RCA, 2 IR)
Input Sensitivity	-10dB Multimedia / 14dB.
Input Type: Infrared / .	Type F-Pin (IR) / Dual .
IR A	Red
IR B	Red
Level Controls	Front Panel
Mains Connector	Barrel Connector
Max Current per Output	8 2.5A
Max Power 70V, All CH D.	Amps - 790mA / Watts - .
Max Power 8 Ohms, All C.	Amps - 790mA / Watts - .
Max Voltage Per Output	8 20V
Maximum Input Level	dBu &Vrms NA
Maximum Operating Volta.	256V
Minimum Power-Up Voltage	48V
Mute	Red
Network	No
Number of Fixed Inputs	6
Number of Ports	1
Operating Voltage Auto .	100V - 240V
Optional Card Slot	No
Output Connectors Numbe.	4 Position
Output Connectors Type	Removable Euro Block, 7.
Power	Blue
Power Cord (Ships With)	In Line 30VDC / 3A
Power Supply Type	Switch Mode - Wide Rang.
Protection	None
Rack Mount Requirements	1 RU, 8.5"
Shipping Dimensions	10.96" x 5.7" x 13.9" (.
Shipping Weight	Shipping 9 lbs (4.1 kg)
Signal to Noise Ratio	NA
Standby Mode	Amps - NA / Watts - NA
Total Harmonic Distorti.	.033%
Type	Power Amplifier
Type of Connector	3-Pin Phoenix
Warranty	3 years
Weight	Unit 7 lbs (3.18 kg)
Wire Size	6-18 Gauge (Class 2 Wir.

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
CDW	5071085	477.99	1	In Stock		Atlas		477.99 @ 1
alldataresource.com	10081645	528.07	1	In Stock		Atlas Sound		528.07 @ 1
conferenceroomav.com	AL2450	528.99	1	In Stock		ATLASIED	7.0	528.99 @ 1
Zoro	G2203333	529.99	1	In Stock	15	Atlas		529.99 @ 1
Newark	71AC5386	658.99	1	In Stock		ATLAS SOUND		658.99 @ 1
