Marathon Electric Y280

B007ZQN05E

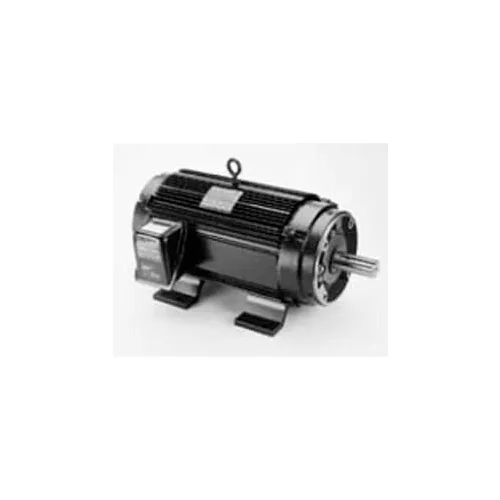

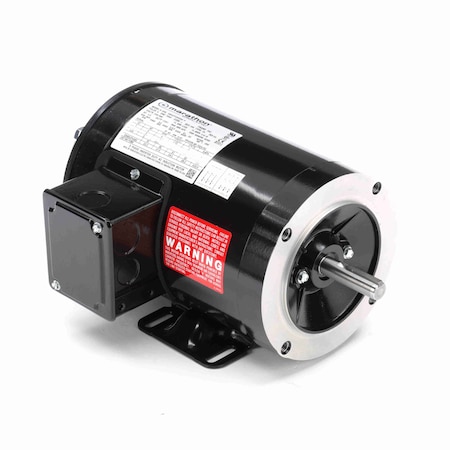

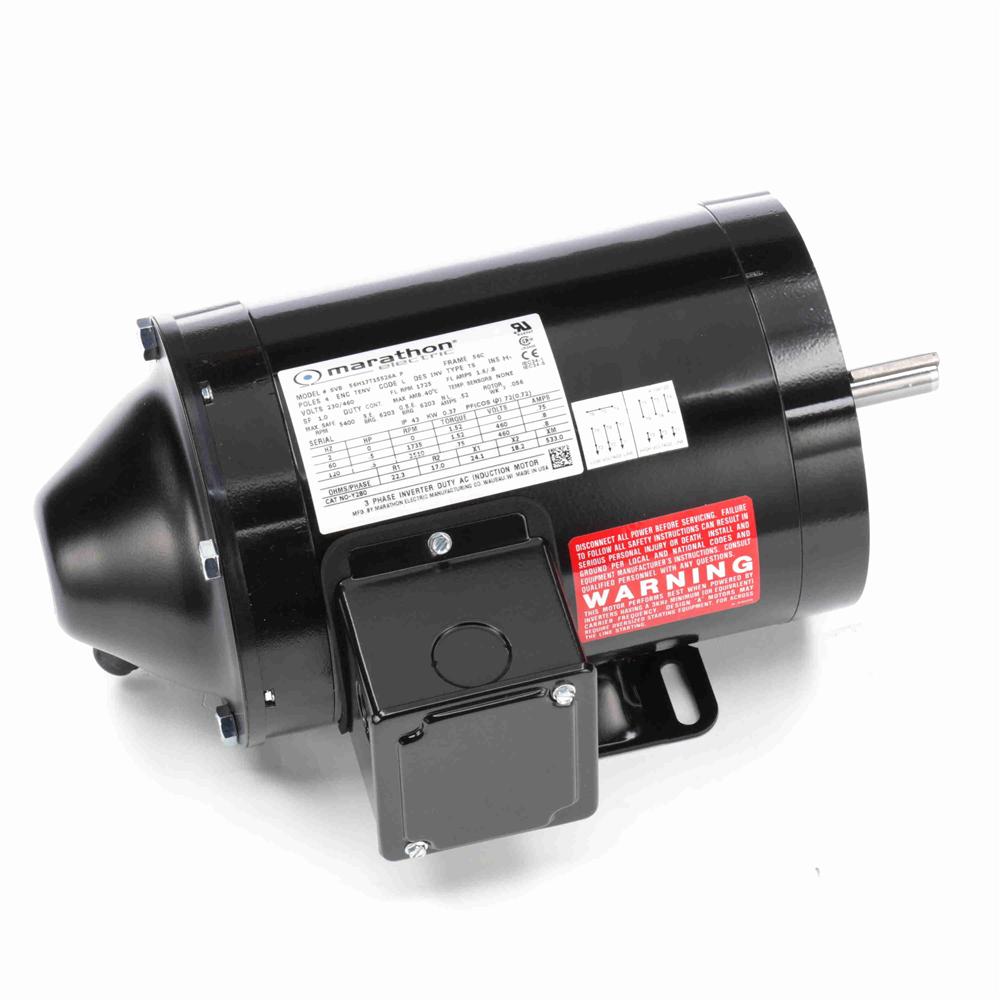

Marathon Y280 Motor

Marathon Y280 Motorzoom

Attributes

Key Value
Alternate Mfr Part Numb.056H17T15526
Amps1.6/0.8
ApprovalsCE, CSA, UR
Bearing TypeBall
BearingsBall
CompositionRolled Steel
Conduit Box PositionF1
Country of Origin (subj.United States
duty / condition type:Continuous Duty, Invert.
Duty CycleContinuous
Efficiency0.8
Efficiency %80 %
EnclosureTotally Enclosed Non-Ve.
Enclosure MaterialSteel
Enclosure TypeTENV (Totally Enclosed .
enclosure type:TENV (Totally Enclosed .
Encoder AcceptableYes
Encoder Shaft Dimensions5/8 in x 1 3/4 in
Family SeriesMarathon Electric Motors
FinishBlack
Frame56C
frame material:Rolled Steel
frame size:56C
Frequency60 Hz
frequency rating:60 Hz
Full Load Amps1.60/0.80
full load current:1.60 / 0.80 A
full load efficiency:80.00 %
Gross Weight0 lbs
Horsepower1/2 hp
HP1/2
Hz60
Ins. ClassH
Insulation ClassH
insulation class:F
ip rating:43
ItemVector Motor
Item NumberY280
Kilowatts0.37 kW
Length Less Shaft11 11/16 in
ManufacturerMarathon Electric
Manufacturer Model #056H17T15526
Manufacturer Part Number056H17T15526
Manufacturers Warranty .3 Years
Max. Ambient Temp.40 Degrees C
Max. Operating Frequency120 Hz
Max. Speed5,400 RPM
Maximum Ambient Tempera.40? C
Motor ApplicationCrane
Motor BearingsBall
motor category:Vector Drive Motor with.
Motor Design3-Phase
Motor Efficiency GroupStandard Efficient
Motor Enclosure DesignTotally Enclosed Nonven.
Motor Frame MaterialSteel
motor horsepower:0.50 hp, 1/2 hp
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
motor phase:3 ph
Motor Service Factor1
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Shell Length7.06"
motor supply voltage:230/460 V
Motor Thermal ProtectionNone
MountingFace/Base
Mounting OrientationHorizontal
Mounting TypeBolt-on Base
mounting type:Rigid Base/C-Face Flange
Nameplate RPM1,725
NEMA DesignA
Net Weight29 lbs
No. of Speeds1
Nominal Efficiency80 %
Number of Poles4
Number of Speeds1
Overall Length13 3/4 in, 13.74", 13.7.
overall length (c-dimen.13.48 in
Phase3, Three
Product TypeThree Phase
RotationReversible
RPM1725, 1700 - 1800, 1,72.
Service Factor1
service factor:1.00
Shaft Dia.5/8 in
Shaft Diameter0.63 ", 5/8"
shaft diameter:0.63 in
Shaft Length2.06", 2 1/16 in
Ship Weight29 lbs.
Speed Range1,000:1
StandardsUL Recognized (E49747),.
standards met:UL, CSA
synchronous rpm:1800 rpm
Torque1.5 ft-lb
Usable @ 200VNo
Usable @ 208VNo
Voltage230/460V AC, 230/460
Voltage (AC)230 VAC, 460 VAC
Volts230, 460
Weight29 lb
weight:29 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comY280696.01In StockMARATHON696.0 @ 1
thumbzoommotionindustries.com044820641053.611In StockMarathon Electric1053.61 @ 1
thumbzoomGalcoY280-MARA1093.251In StockMarathon Electric29.01093.25 @ 1
thumbzoomemotorpro.comY2801097.381In StockMarathon29.01097.38 @ 1
thumbzoomMRO Supply22703791099.031In StockMarathon Electric1099.03 @ 1
thumbzoomNational Supply NetworkB8685731138.991In StockMARATHON MOTORS1138.99 @ 1
thumbzoomZoroG25308811147.821In StockMarathon1147.82 @ 1
thumbzoomGlobal IndustrialWBB8685731197.01In StockMarathon Motors1197.0 @ 1
thumbzoomAutomation DirectY2801278.014Marathon29.01278.0 @ 1
us.rs-online.com726508071278.271In StockMarathon Motors1278.27 @ 1
kirbyrisk.com24020831589.141In StockMarathon1589.14 @ 1
grainger.caAOSY2801869.030288661In StockMARATHON29.01869.03028866 @ 1
