Sola Electric SDN-10-24-100P

B0115HALVE

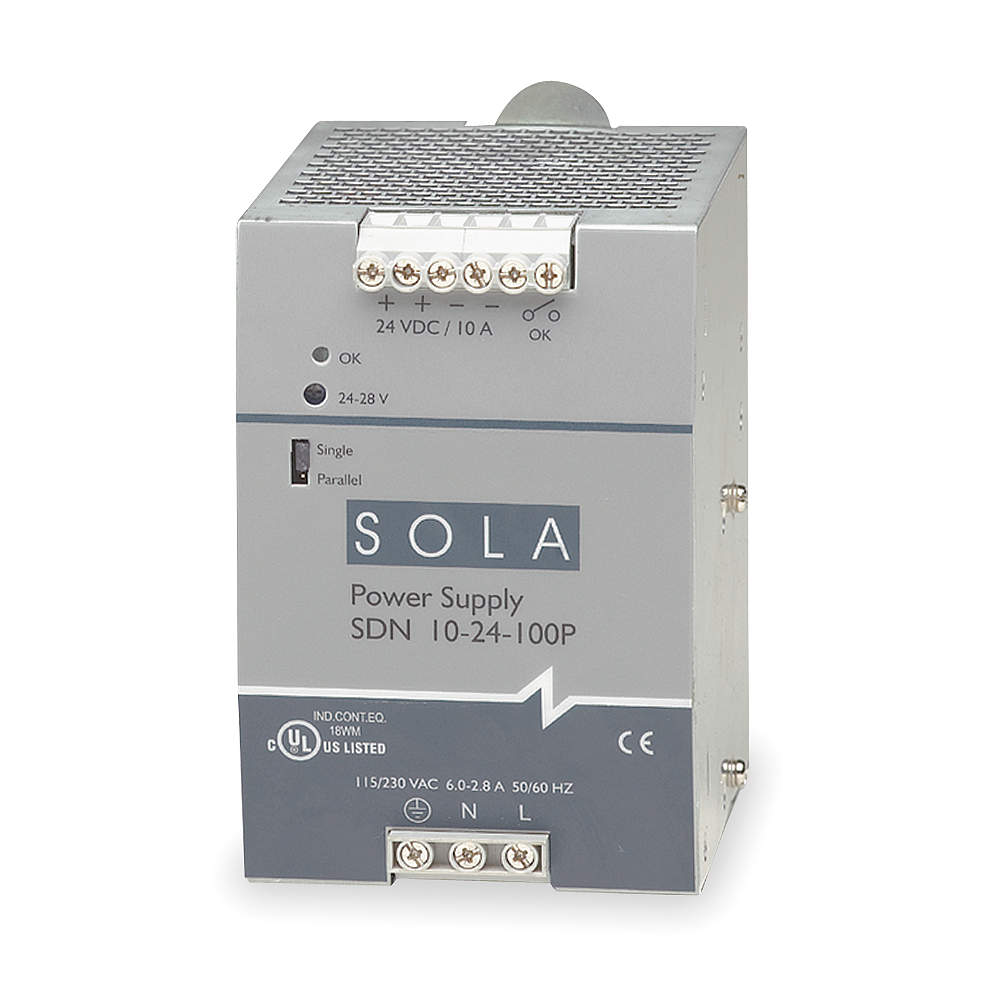

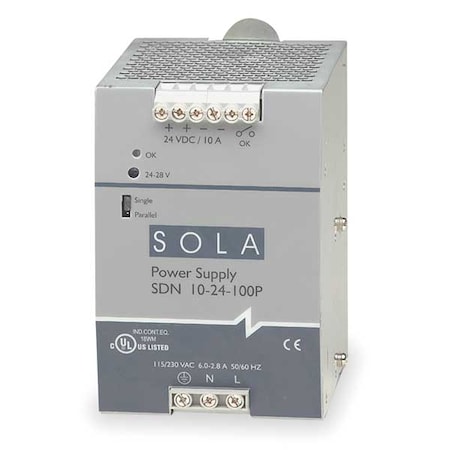

SOLA ELECTRIC SDN-10-24-100P POWER SUPPLY SDN-10-24-100P

SOLA ELECTRIC SDN-10-24-100P POWER SUPPLY SDN-10-24-100Pzoom

Attributes

Key Value
AC Voltage - Input85 ~ 132 VAC, 176 ~ 264.
Alternate Part No.663-SDN10-24-100P
Amps10
ApplicationIndustrial Machine Cont.
ApplicationsHazardous Locations, In.
Approval AgencyCE, cULus, cURus
ApprovalsCE, cULus, cURus, UL508.
Base Product NumberSDN10
BrandSolaHD, Sola / Hevi-Duty
Cable Size16 to 10 AWG Solid, 16 .
Case MaterialMetal Case
Catalog NumberSDN10-24-100P
CategoryPower Supplies - Extern.
ConfigurationEnclosed
Country of OriginTaiwan, Province Of Chi.
Current - Output (Max)10A
DC Voltage - Input (Max)375V
DC Voltage - Input (Min)210V
Depth4.55 in
DescriptionAC/DC DIN RAIL SUPPLY 2.
Digi-Key Part Number2106-SDN10-24-100P-ND
Dimensions83 mm L x 116 mm W
Efficiency88%
Efficiency %88 %
EncapsulatedNo
EnclosedYes
EnclosureClass 1 Zone 2, IP20
Environmental Conditions90 RH Humidity Range
Family SeriesSolaHD Power Supplies, .
FeaturesAdjustable Output, IP20.
Frequency47-63 Hz
Frequency Rating47 - 63
Gross Weight3.5 lbs
Height4.88 in, 4.88, 4.88" (1.
Hertz47-63 Hz
Hold Up TimeGreater Than 100 msec
Hz47 to 63 Hz
Input Frequency47-63 Hz
Input TypeAC or DC, 1-Phase / Sin.
Input Voltage100 VAC ; 110 VAC ; 115.
Input Voltage (AC)176-264 VAC, 85-132 VAC
Input Voltage Range115-230 Vac, 90-375 Vdc.
Input Volts-Auto-RangingYes
IP Rating20
ItemDc Power Supply
Item NumberSDN10-24-100P
Item TypeSDN-P DIN Rail Series
Length2.56
Made in USANo
ManufacturerSolaHD, Sola/Hevi-Duty
Manufacturer Part No.SDN10-24-100P
Manufacturer Part NumberSDN1024100P
Manufacturer Product Nu.SDN10-24-100P
Manufacturer Standard L.12 Weeks
MaterialMetal Housing
Maximum Operating Tempe.60 C
MfrSolaHD
Minimum Load Required-
Minimum Operating Tempe.-10 C
MountingDIN Rail/Chassis, DIN T.
Mounting TypeDIN Rail Mount
NEMA Rating1
Net Weight2.2 lbs
Nominal Input Voltage (.120 VAC, 208 VAC, 240 V.
Nominal Output VDC24 VDC
Number of Outputs1
Number of PhasesSingle
Operating Temp. Range-10 Degrees to 60 Degr.
Operating Temperature14-140 ?F, -10?C ~ 70?C.
OperationPFC
Output Amps10
Output Current10 A
Output Current-Channel 110 A
Output NoiseLess Than 50mV
Output Power60-240 W, 240 W
Output Power Rating240 W
Output VDC24 VDC
Output Voltage24V DC, 24 VDC
Output Voltage Adj.Yes
Output Voltage Range12, 24, 48 Vdc
Output Voltage-Channel 124 V
Overload Capability< 16-60 Vdc
Overload ProtectionYes
Overvoltage ProtectionYes
PackageBulk
Parallel OperationYes
Phase1
Phase (Input)1
Phase - ElectricalSingle
Power240 W
Power (Watts)240W
Power Factor CorrectionYes
Power Rating240W
Primary TypeAC-DC
ProductSwitching Supplies
Product CategoryDIN Rail Power Supplies
Product HeaderSDN-P Series DIN Rail P.
Product SeriesSDN
Product StatusActive
Remote On/Off ControlNo
Remote SensingNo
RoHSNo
SeriesSDN-C Series, SDN, SDN-P
Short Circuit ProtectionYes
Size / Dimension4.55" L x 3.26" W x 4.8.
Special FeaturesPower Factor Correction.
StandardUL (CANADA AND US), UL .
StandardsCE, cRUus E137632 E2347.
Status IndicatorGreen LED
Status Indicator : Visu.Green LED, DC OK
StyleSwitching
Temp. Range-10 to 60?C
TypeIndustrial
UL Recognized Component.Class I, Division 2, Gr.
UPC783472153213
Voltage - Output 124V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Voltage - Output 5-
Voltage - Output 6-
Voltage Rating115/230
Volts AC Range115/230
Volts DC24
Volts DC Range210-375
Wattage16.4
Width4.55, 0 in, 3.26 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Straight Road ElectronicsSDN1024100P369.192In StockSola/Hevi-Duty369.19 @ 2
Onlinecomponents.comSDN10-24-100P369.26110Sola/Hevi-Duty369.26 @ 1
AmazonTPB002KM39EA414.01In Stock2Sola/Hevi-Duty414.0 @ 1
Heilind ElectronicsSOLSDN10-24-100P418.870711Sola/Hevi-Duty418.8707 @ 1
thumbzoomCarlton Bates Company78347215321444.0411SOLAHD444.04 @ 1
thumbzoomsustainablesupply.comC1195533472.141In StockSola3.29472.14 @ 1
thumbzoomZoroG2630327479.991226Solahd3.29479.99 @ 1
standardelectricsupply.com35086496.391In StockSola/Hevi-Duty496.39 @ 1
Hawk ElectronicsSDN1024100P501.01In StockSola HD501.0 @ 1
thumbzoomWalker IndustrialSDN1024100P510.771In Stock10SolaHD510.77 @ 1
RS Delivers890-8898513.91In StockSolaHD513.9 @ 1
thumbzoomDigi-Key10072033532.171In StockSolaHD532.17 @ 1
thumbzoomebay.com_peanutboxesSDN10-24-100P551.991In StockSola Hevi-Duty551.99 @ 1
thumbzoomNewark80K9315578.691769SOLAHD578.69 @ 1
thumbzoomPlatt.com0394400593.91In StockSola Hevi-Duty593.9 @ 1
thumbzoomebay.com_snshi-9SDN10-24-100P598.991In StockSola Hevi-Duty598.99 @ 1
thumbzoomebay.com_robomach2SDN10-24-100P599.981In StockSola Hevi-Duty599.98 @ 1
thumbzoomelectricalparts.comSDN1024100P603.0976122Sola Hevi-Duty603.0976 @ 1
thumbzoomGalcoSDN10-24-100P-SOLA610.7314SolaHD3.5610.73 @ 1
us.rs-online.com70211354616.341In StockSolaHD616.34 @ 1
thumbzoomswatee.comSDN10-24-100P638.02125Sola/Hevi-Duty638.02 @ 1
thumbzoommayerelectric.comSOLSDN1024100P656.0312SOLA HEVI-DUTY656.03 @ 1
thumbzoomUnited Electric51797677.741In StockSolaHD677.74 @ 1
thumbzoomebay.com_seven0072SDN10-24-100P692.911In StockSola Hevi-Duty692.91 @ 1
thumbzoomebay.com_mallyeahlianSDN10-24-100P692.931In StockSola Hevi-Duty692.93 @ 1
thumbzoomebay.com_pliuw-enjoySDN10-24-100P698.911In StockSola Hevi-Duty698.91 @ 1
thumbzoomebay.com_safe-yqingSDN10-24-100P698.941In StockSola Hevi-Duty698.94 @ 1
thumbzoomNational Supply Network64911993706.671In StockSola/Hevi-Duty706.67 @ 1
thumbzoomebay.com_premiumplcSDN10-24-100P794.991In StockSola Hevi-Duty794.99 @ 1
thumbzoomRaptor SuppliesAD2ZCA803.74337551In StockSOLA/HEVI-DUTY803.7433755 @ 1
thumbzoomebay.com_danielyin-2012SDN10-24-100P819.991In StockSola Hevi-Duty819.99 @ 1
thumbzoombscsource.comSDN1024100P899.991In StockSola/Hevi-Duty899.99 @ 1
thumbzoomcrescentelectric.com884061239.4112SolaHD1239.4 @ 1
