Leeson 110313.00

mpn110313.00
brandname: Leeson
manufacturername: Leeson

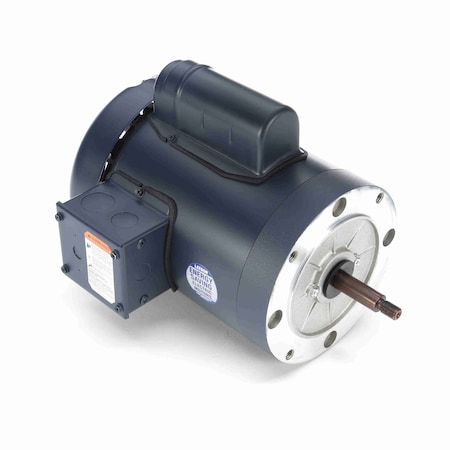

Leeson 110313.00 General Purpose Motor, 3 Phase, 56 Frame, Rigid Mounting, 3/4HP, 3600 RPM, 208-230/460V Voltage, 60Hz Fequency

Leeson 110313.00 General Purpose Motor, 3 Phase, 56 Frame, Rigid Mounting, 3/4HP, 3600 RPM, 208-230/460V Voltage, 60Hz Fequency

zoom

Brand: Leeson
PartNumber: 110313.00
Model: C6T34FB2E
Size: 3 Phase
PackageQuantity: 1
Binding: Misc.
Manufacturer: Leeson
Label: Leeson

Attributes

Key	Value
Alternate Mfr Part Numb.	C6T34FB2E
Amperage Rating	2.9 to 2.8/1.4 A
Application Type	Compressor Motors, Fan .
Approvals	CSA, UL
Bearing Type	Ball
Category	Electric Motor
Class/Group	C6T34FB2
Composition	Steel
Country of Origin (subj.	United States
CT Speed Range	2:1
Current Rating	2.5 to 2.4 ; 1.2 A
Description:	3/4HP..3450RPM.56.TEFC..
Dimensions	10.81 in L x 8.64 in W .
Duty Cycle	Continuous
Efficiency	75.5 %
Efficiency %	75.5 %
Enclosure	TEFC, Totally Enclosed .
Enclosure Type	Totally Enclosed Fan Co.
Family Series	Leeson Motors, Three Ph.
Frame	56
Frequency	60 Hz
Frequency Rating	60 Hz
Gross Weight	0 lbs
Horsepower	3/4 hp
Horsepower Rating	0.75 HP
HP	3/4, 0.75
Hz	60
Insulation Class	Class B
Insulation Type	Class B
Item Condition	FACTORY NEW
Item Number	110313.00
Manufacturer	LEESON ELECTRIC CORPORA.
Manufacturer Part Number	110313.00
Material	Rolled Steel
MFG Part #:	110313.00
Model Number	C6T34FB2
mounting	Rigid Base
Mounting Type	Rigid, Foot Mount, Rigi.
NEMA Frame	56
Net Weight	22 lbs
Nominal Voltage	208 VAC, 240 VAC, 480 V.
Number of Poles	2
Number of Speeds	1
Overall Length	10.81 "
Phase	3, 3 Phase
Product Series	Three Phase TEFC
Rotation	Reversible
RPM	3450 RPM, 3600, 3400 - .
Service Factor	1.15, 1.149
Shaft Diameter	UL;CSA
Shaft Size	5/8 in Dia
Special Features	Service Factor - 1.15, .
Speed	3450 RPM
Standards	UL Recognized
Supplier:	LEESON ELECTRIC CORPORA.
Supply Voltage	208-230/460 VAC
Type	Squirrel Cage Induction.
UPC Code	691720008430
UPC:	691720008430
Voltage	208-230
Volts	208/230/460

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	electricmotorwholesale.com	110313	238.0	1	In Stock		Leeson		238.0 @ 1
	Dealers Electric	110313.00	277.92	1	In Stock		Leeson	25.0	277.92 @ 1
	us.rs-online.com	72239337	445.16	1	In Stock		Leeson		445.16 @ 1
	Galco	110313.00-LEES	450.15	1	In Stock		Leeson	22.0	450.15 @ 1
	Zoro	G2496974	473.77	1	In Stock	10	Leeson		473.77 @ 1
	Walker Industrial	110313-00	487.67	1	In Stock	17	Leeson		487.67 @ 1
	kscdirect.com	LEE 110313.00	528.38	1	In Stock		LEESON ELECTRIC CORPORATION		528.38 @ 1
