MAX4559CSE+

mpnMAX4559CSE+
brandname: Maxim Integrated
manufacturername: Maxim Integrated

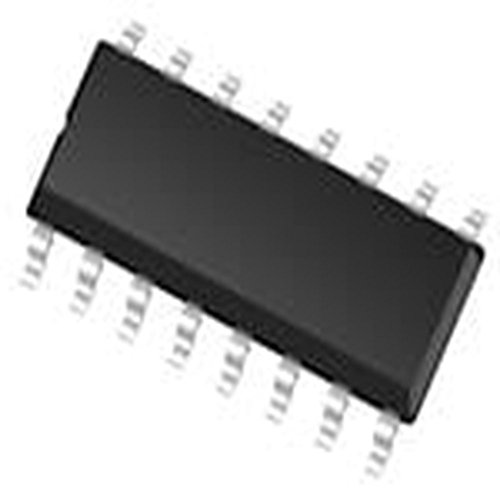

Multiplexer Switch ICs 4:1 2Ch Low Voltage Analog MUX (1 piece)

Multiplexer Switch ICs 4:1 2Ch Low Voltage Analog MUX (1 piece)

zoom

PartNumber: MAX4559CSE+
Size: 1 Piece
PackageQuantity: 1
Manufacturer: Maxim Integrated
Label: Maxim Integrated

Attributes

Key	Value
-3db Bandwidth	-
Base Product Number	MAX4559
Category	Integrated Circuits (IC.
Channel Capacitance (CS.	2.5pF, 6pF
Channel-to-Channel Matc.	2Ohm
Charge Injection	2.4pC
Crosstalk	-93dB @ 100kHz
Current - Leakage (IS(o.	1nA
Mfr	Analog Devices Inc./Max.
Mounting Type	Surface Mount
Multiplexer/Demultiplex.	4:1
Number of Circuits	2
On-State Resistance (Ma.	160Ohm
Operating Temperature	0?C ~ 70?C (TA)
Package	Tube
Package / Case	16-SOIC (0.154", 3.90mm.
Part Status	Active
Series	-
Supplier Device Package	16-SOIC
Switch Circuit	SP4T
Switch Time (Ton, Toff).	150ns, 120ns
Voltage - Supply, Dual .	?2V ~ 6V
Voltage - Supply, Singl.	2V ~ 12V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Hotenda	H2414821	3.42	1	100		Maxim Integrated		3.42 @ 1
	Digi-Key	1780200	6.41	1000	23		Analog Devices Inc./Maxim Integrated		6.41 @ 1
