Molex / Waldom 39980-0409

mpn399800409
brandname: Molex
manufacturername: Molex

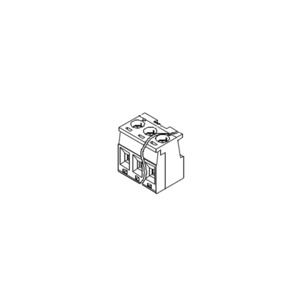

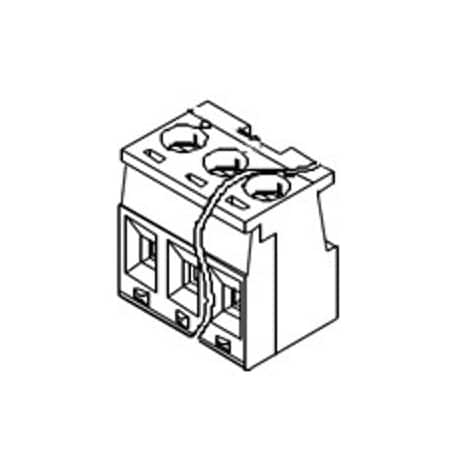

Molex / Waldom 39980-0409 Connector Headers and PCB Receptacles

Molex / Waldom 39980-0409 Connector Headers and PCB Receptacles

zoom

Brand: Molex / Waldom
PartNumber: 39980-0409
PackageQuantity: 1
Binding: Electronics
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Agency Approvals	ELV ; RoHS
Alternate Mfr Part Numb.	981509
Circuits (Loaded)	9
Color	Black
Color - Resin	Black
Current - Maximum per C.	10.0A
Current Rating	10 A
Family Name	Eurostyle Pluggable
Flammability	94V-0
Level	Single Level
Lock to Mating Part	Yes
Material - Plating Term.	Tin
Material - Resin	Nylon
Number of Circuits	9
Number of Poles	9
Number of Positions	9
Number of Rows	1
Orientation	Vertical
Panel Mount	No
PC Tail Length	3.81mm
PCB Retention	None
PCB Thickness - Recomme.	1.60mm
Pin Spacing	5.08 mm mm
Pitch	5.08 mm
Pitch - Mating Interface	5.08mm
Pitch - Termination Int.	5.08mm
Plating Material	Tin
Plating min - Mating	3.810?m
Plating min - Terminati.	3.810?m
Polarized to Mating Part	Yes
Primary Type	PCB
Series	39980 Series
Shrouded	No
Special Features	Low-Halogen
Stackable	No
Surface Mount Compatibl.	No
Temperature Range - Ope.	140?C
Termination	PCB Pins
Type	Header
UL	E48521
Voltage - Maximum	300V
Voltage Rating	300 V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	MOLEX 39980-0409	1.14	50	536		MOLEX		1.14 @ 50
	jensentools.com	10189063	1.52	1	536		Molex		1.52 @ 25
	Onlinecomponents.com	39980-0409	1.67	1	536		MOLEX / WALDOM		1.67 @ 25
	Newark	30B3564	1.79	560	25		MOLEX		1.79 @ 500
	us.rs-online.com	70191554	2.1	1	25		Molex Incorporated		2.1 @ 25
	Radwell	39980-0409	5.0	280	25		MOLEX		5.0 @ 280
	Zoro	G705911318	94.5	1	25		Molex		94.5 @ 25
