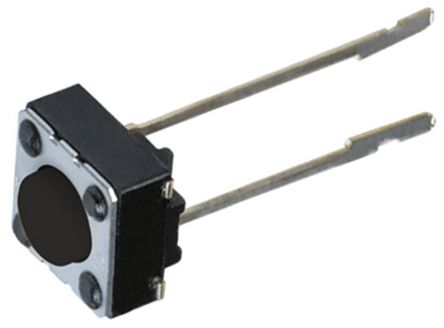

PANASONIC EVQ-21507K SWITCH, TACTILE, SPST-NO, 20mA, 15VDC (5 pieces)

mpnEVQ-21507K
brandname: Panasonic
manufacturername: Panasonic

PANASONIC EVQ-21507K SWITCH, TACTILE, SPST-NO, 20mA, 15VDC (5 pieces)

PackageQuantity: 5
Manufacturer: PANASONIC
Label: PANASONIC

Attributes

Key	Value
Above PC Board Height	7.0 mm
Actuator	Round
Actuator Color	Black
Actuator Colour	Black
Actuator Height	7 mm
Actuator Height off PCB.	7.00mm
Actuator Length	7mm
Actuator Length, Right .	-
Actuator Material	-
Actuator Operating Angle	Top Actuated
Actuator Orientation	Top Actuated
Actuator Travel Distance	0.25 mm
Actuator Type	Push Plate, Standard
Alternate Part No.	667-EVQ-21507K
Base Product Number	EVQ-21
Brand	Panasonic
Category	Switches
Circuit	SPST-NO
Color	Black
Contact Configuration	SPST
Contact Current Rating	20 mA
Contact Form	SPST, SPST-NO
Contact Plating	Silver
Contact Rating	0.02 A
Contact Rating @ Voltage	0.02A @ 15VDC
Current Rating	20 mA
Features	-
Height	7mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (N.	-
Ingress Protection	-
Manufacturer	Panasonic
Manufacturer Part No.	EVQ-21507K
Maximum Operating Tempe.	+70?C
Mechanical Life	100000Cycles, 100,000 C.
Mfr	Panasonic Electronic Co.
Minimum Operating Tempe.	-20?C
Mounting Dimension	6.0 x 6.0 mm
Mounting Style	Through Hole
Mounting Type	Through Hole
Operating Force	160 gf, 1.6 N, 160gf
Operating Temperature	-20?C ~ 70?C
Operating Temperature R.	-20 ? +70?C, - 20 C to .
Operation	1.6 N Vertical force
Outline	6.00mm x 6.00mm
Package	Cut Tape (CT)
Packaging	Reel, Tape & Reel
Product Category	Tactile Switches
Product Status	Obsolete
Promotion Restriction	Not eligible for promot.
Series	EVQ2, EVQ2 Series
Stem Height	7 mm
Switch Function	Off-Mom, OFF - (ON)
Switch Travel	0.25mm
Terminal Type	Solder
Termination	PCB Pins
Termination Style	Solder Pin, PC Pin
Travel	0.25 mm
Type	Tactile
Voltage Rating	15 V
Voltage Rating DC	15 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Waldom	Panasonic EVQ-21507K	0.071	1000	2788	Panasonic	0.071 @ 1000
Digi-Key	593530	0.101	1000	100	Panasonic Electronic Components	0.101 @ 1000
Verical	EVQ-21507K	0.136	1000	2000	Panasonic	0.136 @ 1000
Future Electronics	2028185	0.1428	1000	100	Panasonic	0.1428 @ 1000
Zoro	G005946751	0.16	1000	100	Panasonic	0.16 @ 1000
us.rs-online.com	70270516	0.16956	5000	100	Panasonic Electronic Components	0.16956 @ 5000
swatee.com	EVQ-21507K	0.57	1	204	Panasonic	0.57 @ 100
RS Delivers	815-6502	852.552	1	100	Panasonic	852.552 @ 100
