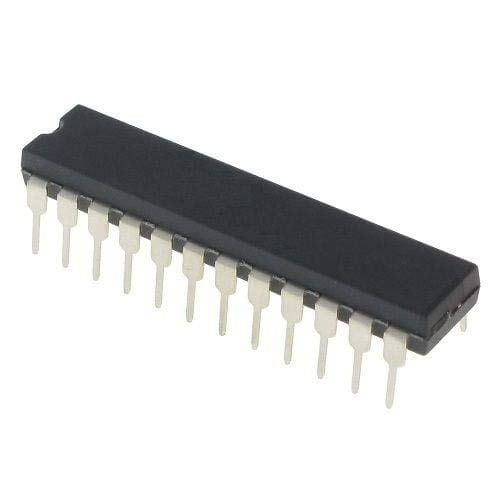

ANALOG DEVICES AD7880CNZ

B017T1AX5Y

AD7880CNZ

AD7880CNZzoom

Attributes

Key Value
Alternate Part No.584-AD7880CNZ
ArchitectureSAR
Base Product NumberAD7880
BrandAnalog Devices
CategoryIntegrated Circuits (IC.
ConfigurationS/H-ADC
Conversion Rate66 kS/s
Data InterfaceParallel
DescriptionIC ADC 12BIT SAR 24DIP
Detailed Description12 Bit Analog to Digita.
Digi-Key Part NumberAD7880CNZ-ND
Features-
Input TypeSingle Ended, Single-En.
Interface TypeParallel
ManufacturerAnalog Devices Inc.
Manufacturer Part No.AD7880CNZ
Manufacturer Product Nu.AD7880CNZ
Manufacturer Standard L.20 Weeks
Maximum Operating Tempe.+ 85 C
Maximum Power Dissipati.37.5 mW
MfrAnalog Devices Inc.
Minimum Operating Tempe.- 40 C
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Number of A/D Converters1
Number of Bits12
Number of Channels1 Channel
Number of Converters1
Number of Inputs2
Operating Supply Voltage5 V
Operating Temperature-40?C ~ 85?C
PackageTube
Package / Case24-DIP (0.300", 7.62mm)
Package/CasePDIP-24
PackagingTube
Product CategoryAnalog to Digital Conve.
Product StatusActive
Ratio - S/H:ADC1:1
Reference TypeExternal, Supply
Resolution12 bit
Sampling Rate (Per Seco.66k
SeriesAD7880, -
SNR72 dB
Supplier Device Package24-PDIP
Voltage - Supply, Analog5V
Voltage - Supply, Digit.5V
Voltage ReferenceExternal

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH236710050.471In StockAnalog Devices, Inc.50.47 @ 1
thumbzoomswatee.comAD7880CNZ67.46180Analog Devices Inc.67.46 @ 1
thumbzoomRadwellAD7880CNZ80.01In StockANALOG DEVICES80.0 @ 1
AmazonSCB00HKI31A688.481In StockAnalog Devices Inc.88.48 @ 1
thumbzoomDigi-Key100727897.4313069Analog Devices Inc.97.43 @ 1
