Black Box Network Services C6APC28-WH-02

mpnC6APC28-WH-02
brandname: BLACK BOX
manufacturername: BLACK BOX

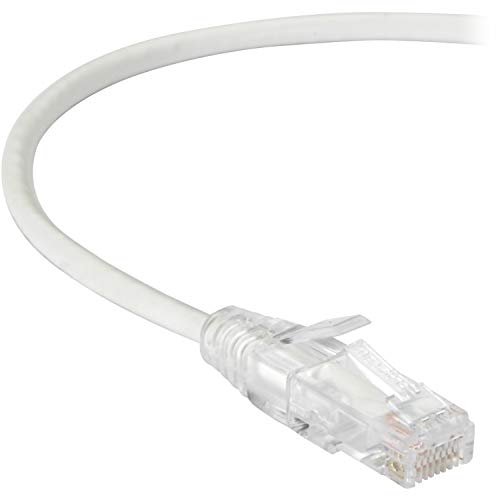

Black Box C6APC28-WH-02 SLIM-NET CAT6A PATCH CABLE WHITE 2FT

Brand: Black Box Network Services
PartNumber: C6APC28-WH-02
Model: C6APC28-WH-02
Color: black
Size: 2 feet
PackageQuantity: 1
Binding: Personal Computers
Manufacturer: Black Box Network Services
Label: Black Box Network Services

Attributes

Key	Value
ACR	100 MHz: 24.4 dB/100 m;.
ACRF	100 MHz: 27.8 dB/100 m;.
American Wire Gauge	28 AWG
Approvals	UL?E196163
ASIN	B0789X82S6
Brand	Black Box Network Servi.
Brand Name	Black Box
Cable Characteristic	Patch Cable
Cable Length	2 ft
Cable Type	Category 6a, Ethernet
Color	White, Black
Conductor Gauge	28 AWG, stranded bare c.
Connector on First End	1 x RJ-45 Male Network
Connector on Second End	1 x RJ-45 Male Network
Connector Type	RJ45
Contact Plating	Gold
Country of Origin	China, ?China
Data Transfer Rate	10 Gbit/s
Date First Available	December 26, 2017
Delay Skew	1-10 MHz: 40 +/- 10 nS/.
Device Supported	Patch Panel, Wallplate,.
Environmental Certifica.	RoHS
Environmentally Friendly	Yes
Features	Stranded, Snagless, Boo.
Frequency	500 MHz
Gauge	28.0
Height	0.50
Impedance	100 ? 15 ohms
Insertion Loss (Maximum)	100 MHz: 19.8 dB/100 m;.
Insulation	HDPE
Item model number	C6APC28-WH-02
Jacket	PVC, CM
Jacket Type	CM
Length	10.50
Limited Warranty	Lifetime
Manufacturer	Black Box Network Servi.
Manufacturer Part Number	C6APC28-WH-02
Manufacturer Website Ad.	http://www.blackbox.com
Material	Polyvinyl Chloride (PVC.
NEXT	100 MHz: 44.3 dB/100 m;.
Outer Diameter	0.161"" (4.1 mm)
Package Dimensions	11 x 10 x 1 inches
Pair-to-Ground Capacita.	330 pF/100 m max.
Product Line	Slim-Net
Product Name	Slim-Net Cat.6a UTP Pat.
Product Type	Network Cable
Product with faster shi.	true
Propagation Delay	250 MHz: 535.5 ns/100 m.
PS-ACR	100 MHz: 22.4 dB/100 m;.
PS-ACRF	100 MHz: 24.8 dB/100 m;.
PS-NEXT	100 MHz: 42.3 dB/100 m;.
Resistance	22.3 ohms/100 m
Return Loss	100 MHz: 19.0 dB/100 m;.
Shielding	No
Shipping	undefined (Fixed Shippi.
Width	9.75

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
bhphotovideo.com	BLC6AP28WH2	5.544	1	50		Black Box		5.544 @ 50
Zoro	G9496657	5.99	2	50	8	Black Box		5.99 @ 50
Newark	83Y9018	6.49	1	50		BLACK BOX		6.49 @ 50
Megadepot	C6APC28-WH-02	7.97	1	50		BlackBox		7.97 @ 50
usmegastore.com	C6APC28-WH-02	8.11	1	50		BlackBox		8.11 @ 50
AmazonTP	B0789X82S6	9.08	1	50	2	Black Box Network Services		9.08 @ 50
unbeatablesale.com	SYBA165428	9.18	1	50		BLACK BOX		9.18 @ 50
CDW	4397991	9.99	1	499		Black Box		9.99 @ 50
Amazon	B0789X82S6	10.46	1	50		Black Box Network Services		10.46 @ 50
PCNation	4AU477	11.09	1	50		BLACK BOX CORPORATION	1.0	11.09 @ 50
spaceboundsolutions.com	SBS-591653	12.96	1	50		Black Box Innovations		12.96 @ 50
homeessentialsdirect.com	C6APC28-WH-02	21.29	1	50		Black Box Network Services		21.29 @ 50
