- mpnC6APC28-WH-03
- brandname: BLACK BOX
- manufacturername: BLACK BOX

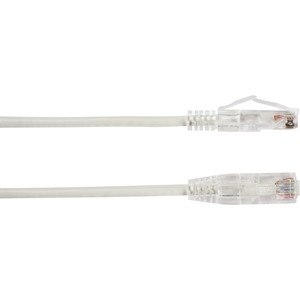

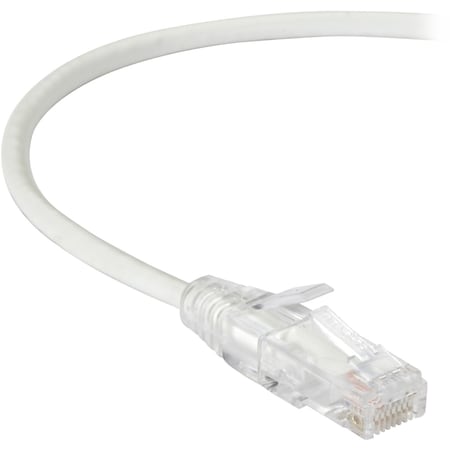

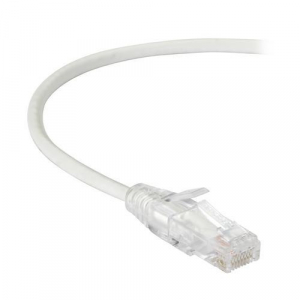

Black Box C6APC28-WH-03 CAT6A 500-MHZ Stranded ETHERNET Patch Cable - UNSHIELDED (UTP), cm PVC, SNAGLESS
- Brand: Black Box
- PartNumber: C6APC28-WH-03
- Model: C6APC28-WH-03
- Color: Black
- Size: 3 Feet
- PackageQuantity: 1
- Binding: Personal Computers
- Manufacturer: Black Box Corporation
- Label: Black Box Corporation
Attributes
| Key | Value |
|---|
| ACR | 100 MHz: 24.4 dB/100 m;. |
| ACRF | 100 MHz: 27.8 dB/100 m;. |
| American Wire Gauge | 28 AWG |
| Approvals | UL?E196163 |
| Best Sellers Rank | Cat 6 Ethernet Cables |
| Brand | Black Box |
| Brand Name | Black Box |
| Cable Characteristic | Patch Cable |
| Cable Length | 3 ft |
| Cable Type | Category 6a, Ethernet |
| Color | White, Black |
| Conductor Gauge | 28 AWG, stranded bare c. |
| Connector on First End | 1 x RJ-45 Male Network |
| Connector on Second End | 1 x RJ-45 Male Network |
| Connector Type | RJ-45 |
| Contact Plating | Gold |
| Country of Origin | China, ?China |
| Data Transfer Rate | 10 Gbit/s |
| Date First Available | July 6, 2018 |
| Delay Skew | 1-10 MHz: 40 +/- 10 nS/. |
| Device Supported | Patch Panel, Wallplate,. |
| Environmental Certifica. | RoHS |
| Environmentally Friendly | Yes |
| Features | Stranded, Snagless, Boo. |
| Frequency | 500 MHz |
| Gauge | 28.0 |
| Height | 0.25 |
| Impedance | 100 ? 15 ohms |
| Insertion Loss (Maximum) | 100 MHz: 19.8 dB/100 m;. |
| Insulation | HDPE |
| Item model number | C6APC28-WH-03 |
| Item Weight | 1 Pounds |
| Jacket | PVC, CM |
| Jacket Type | CM |
| Length | 6.50 |
| Limited Warranty | Lifetime |
| Manufacturer | Black Box Corporation, . |
| Manufacturer Part Number | C6APC28-WH-03 |
| Manufacturer Website Ad. | http://www.blackbox.com |
| Material | Polyvinyl Chloride (PVC. |
| NEXT | 100 MHz: 44.3 dB/100 m;. |
| Outer Diameter | 0.161"" (4.1 mm) |
| Package Dimensions | 4 x 4 x 1 inches |
| Package Quantity | 1 |
| Pair-to-Ground Capacita. | 330 pF/100 m max. |
| Product Line | Slim-Net |
| Product Name | Slim-Net Cat.6a UTP Pat. |
| Product Type | Network Cable |
| Product with faster shi. | true |
| Propagation Delay | 250 MHz: 535.5 ns/100 m. |
| PS-ACR | 100 MHz: 22.4 dB/100 m;. |
| PS-ACRF | 100 MHz: 24.8 dB/100 m;. |
| PS-NEXT | 100 MHz: 42.3 dB/100 m;. |
| Resistance | 22.3 ohms/100 m |
| Return Loss | 100 MHz: 19.0 dB/100 m;. |
| Shielding | No |
| Shipping | undefined (Fixed Shippi. |
| Unit Count | 1 Count |
| Width | 7.00 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | bhphotovideo.com | BLC6AP28WH3 | 6.16 | 1 | 25 | | Black Box | | 6.16 @ 25 |
 | directdeals.com | C6APC28-WH-03 | 6.99 | 1 | 25 | | Black Box | | 6.99 @ 25 |
| Newark | 83Y9019 | 7.69 | 1 | 25 | | BLACK BOX | | 7.69 @ 25 |
| ipcstore.com | 14_C6APC28-WH-03_1 | 8.0 | 1 | 25 | | Black Box | | 8.0 @ 25 |
 | unbeatablesale.com | ISTR201415 | 9.48 | 1 | 25 | | BLACK BOX | | 9.48 @ 25 |
 | Megadepot | C6APC28-WH-03 | 9.98 | 1 | 25 | | BlackBox | | 9.98 @ 25 |
 | usmegastore.com | C6APC28-WH-03 | 9.98 | 1 | 25 | | BlackBox | | 9.98 @ 25 |
| CDW | 4741808 | 9.99 | 1 | 25 | | Black Box | | 9.99 @ 25 |
 | PCNation | 3FG601 | 11.34 | 1 | 25 | | BLACK BOX CORPORATION | 1.0 | 11.34 @ 25 |
 | Zoro | G9498048 | 12.38 | 2 | 25 | | Black Box | | 12.38 @ 25 |
| spaceboundsolutions.com | SBS-592406 | 13.3 | 1 | 25 | | Black Box Innovations | | 13.3 @ 25 |
| barcodegiant.com | BLA628958 | 14.85 | 1 | 25 | | Black Box | | 14.85 @ 25 |
 | homeessentialsdirect.com | C6APC28-WH-03 | 21.65 | 1 | 25 | | BLACKBOX NETWORK SERVICE | 1.0 | 21.65 @ 25 |
