Black Box 35BAYCF2IDE

B00VXY2BYK

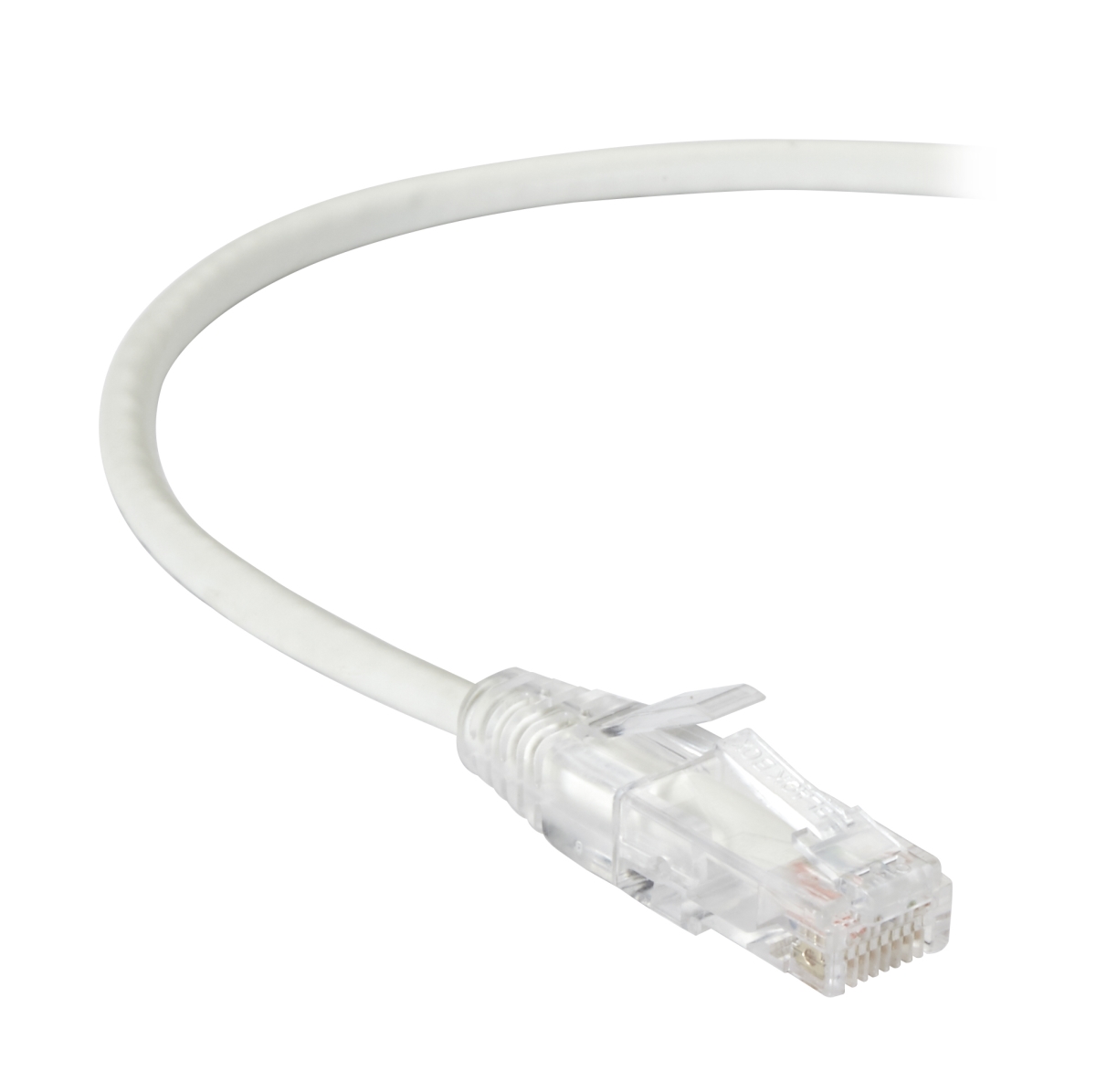

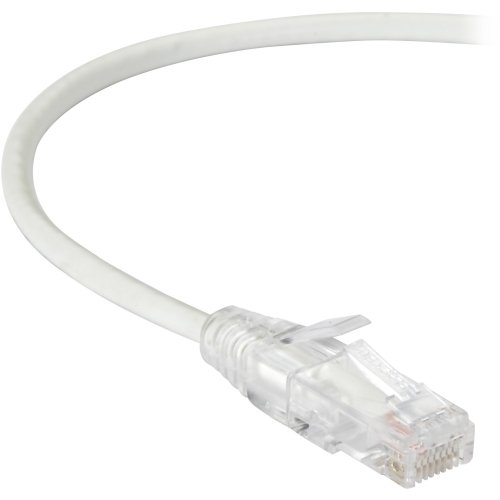

Black Box C6APC28-WH-07 Slim-NET CAT6A 28-AWG 500-MHZ Stranded ETHERNET Patch Cable - UNSHIELDED, PVC, S

Black Box C6APC28-WH-07 Slim-NET CAT6A 28-AWG 500-MHZ Stranded ETHERNET Patch Cable - UNSHIELDED, PVC, Szoom

Attributes

Key Value
ACR100 MHz: 24.4 dB/100 m;.
ACRF100 MHz: 27.8 dB/100 m;.
American Wire Gauge28 AWG
ApprovalsUL?E196163
Brand NameBlack Box
Cable CharacteristicPatch Cable
Cable Length7 ft
Cable TypeCategory 6a
ColorWhite
Conductor Gauge28 AWG, stranded bare c.
Connector on First End1 x RJ-45 Male Network
Connector on Second End1 x RJ-45 Male Network
Contact PlatingGold
Country of OriginChina
Data Transfer Rate10 Gbit/s
Delay Skew1-10 MHz: 40 +/- 10 nS/.
Device SupportedPatch Panel, Wallplate,.
Environmental Certifica.RoHS
Environmentally FriendlyYes
FeaturesStranded, Snagless, Boo.
Frequency500 MHz
Impedance100 ? 15 ohms
Insertion Loss (Maximum)100 MHz: 19.8 dB/100 m;.
InsulationHDPE
JacketPVC, CM
Jacket TypeCM
Limited WarrantyLifetime
ManufacturerBlack Box Corporation
Manufacturer Part NumberC6APC28-WH-07
Manufacturer Website Ad.http://www.blackbox.com
MaterialPolyvinyl Chloride (PVC.
NEXT100 MHz: 44.3 dB/100 m;.
Outer Diameter0.161"" (4.1 mm)
Package Quantity1
Pair-to-Ground Capacita.330 pF/100 m max.
Product LineSlim-Net
Product NameSlim-Net Cat.6a UTP Pat.
Product TypeNetwork Cable
Propagation Delay250 MHz: 535.5 ns/100 m.
PS-ACR100 MHz: 22.4 dB/100 m;.
PS-ACRF100 MHz: 24.8 dB/100 m;.
PS-NEXT100 MHz: 42.3 dB/100 m;.
Resistance22.3 ohms/100 m
Return Loss100 MHz: 19.0 dB/100 m;.
ShieldingNo

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoombhphotovideo.comBLC6AP28WH77.78417Black Box7.784 @ 7
thumbzoomdirectdeals.comC6APC28-WH-079.4917Black Box9.49 @ 7
thumbzoomZoroG95040689.9917Black Box9.99 @ 7
thumbzoomipcstore.com14_C6APC28-WH-07_111.017Black Box11.0 @ 7
AmazonTPB07GBF9KY812.06172Black Box Corporation12.06 @ 7
Newark83Y902212.3417BLACK BOX12.34 @ 7
thumbzoomPCNation3FG60012.417BLACK BOX CORPORATION1.012.4 @ 7
thumbzoomunbeatablesale.comSYBA2473812.6517BLACK BOX NETWORK SERVICES12.65 @ 7
thumbzoomMegadepotC6APC28-WH-0713.5117BlackBox13.51 @ 7
thumbzoomusmegastore.comC6APC28-WH-0713.8217BlackBox13.82 @ 7
CDW478001213.991487Black Box13.99 @ 7
spaceboundsolutions.comSBS-51106415.0217Black Box Innovations15.02 @ 7
