Burndy YCAB394N

B07JBY9VFT

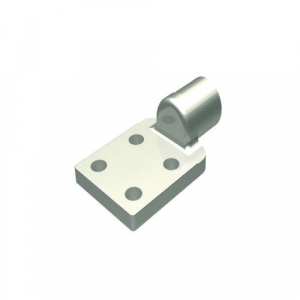

Burndy YCAB394N, 185124 Copper Compression Lug, 4 Hole, 750 Kcmil, Pack of 5 pcs

Burndy YCAB394N, 185124 Copper Compression Lug, 4 Hole, 750 Kcmil, Pack of 5 pcszoom

Attributes

Key Value
Certification - CSA App.No
Certification - cULusNo
Certification - UL Reco.No
Conductor - Copper Str .750 kcmil
Conductor - Copper Str .750 kcmil
Connector TypeTerminal
Die Index627
Dimension - B Length in.3 in
Dimension - F Width Cen.1.75 in
Dimension - Hole Size f.14/25 in
Dimension - Hole Size i.0.56 in
Dimension - Hole Size mm14 mm
Dimension - L Length Ov.217 mm
Dimension - Length Over.8.53 in
Dimension - N inch0.62 in
Dimension - Outside Dia.1.7 in
Dimension - Pad Width i.3 in
Dimension - Strip Lengt.3 1/16
Dimension - Stud Size i.33/64
Dimension - Z inch0.63 in
Family SeriesBurndy Terminals, YCA-2.
Gross Weight3.64 lbs
Item NumberYCAB394N
ManufacturerBurndy
Manufacturer Part NumberYCAB394N
Net Weight0 lbs
Oxide Inhibitor TypePenetrox A
Physical Attribute - Nu.2
Physical Attribute - Nu.4
Physical Attribute - To.Straight
PlatedN
Plating TypeUnplated
Prefilled Oxide Inhibit.Y
Product SeriesYCA-2N/YCAB-4N
Standards - RoHS Compli.EX
Stud Spacing1.75
Terminal MaterialCopper
Terminal TypeBarrel - Standard, Four.
Tongue Width3 "
Trade NameHYLUG?
UL ListedNo
Wire Strip Length3.06 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomKelly HayesYCAB394N347.44111Burndy347.44 @ 5
thumbzoomusmegastore.comYCAB394N479.815Burndy479.8 @ 5
thumbzoomGalcoYCAB394N-BURN667.015Burndy3.64667.0 @ 5
