- mpnG-STR-230-T-M
- brandname: Federal Signal
- manufacturername: Federal Signal

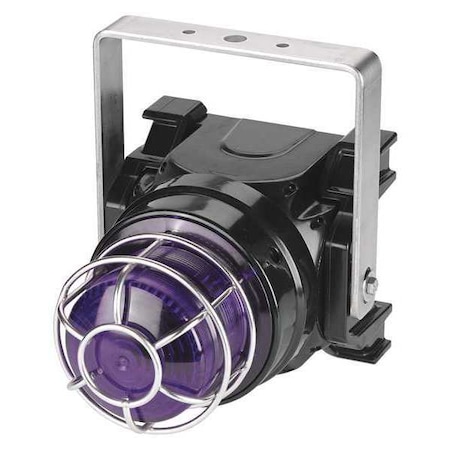

Federal Signal G-STR-230-T-M Global Series Strobe Beacon, U-Bracket Mount, 220-240 VAC, Magenta
- Brand: Federal Signal
- PartNumber: G-STR-230-T-M
- Model: G-STR-230-T-M
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Federal Signal
- Label: Federal Signal
Attributes
| Key | Value |
|---|
| Approvals | ABS, ATEX, CE, cUL, EAC. |
| Ballast | 9999 |
| Certification Listings | UL;cUL;ATEX;IECEx;CE;GO. |
| Color | Magenta |
| Country of Origin (subj. | United States |
| Current Drawn | 0.34A AC |
| Depth | 7 29/64 in |
| Effective Candela | 21J 500/15J 300 |
| Enclosure Rating | Type 4X;IP66;IP69K |
| Environmental Rating | Hazardous Location |
| Estimated Lamp Life | 10,000 Hrs |
| Explosion Proof | No |
| Family Series | Federal Signal Visual S. |
| Flash Pattern | Strobe |
| Flash Rate/Minute | 60 |
| Flashes Per Minute | 60 |
| Flashes per Minute | 60 |
| Gross Weight | 0 lbs |
| Hazardous Location Rated | Yes |
| Height | 8.95, 8 61/64 in |
| Housing Material | Glass Reinforced Polyes. |
| Includes | Dome Guard |
| IP Rating | IP66, IP69K |
| Item | Strobe Light |
| Item Number | G-STR-230-T-M |
| Lamp Life | 10,000 hr |
| Lamp Life Hours | 10000 |
| Lamp Type | Strobe, Xenon |
| Lens Color | Magenta |
| Lens Design | Fresnel |
| Lens Material | Polycarbonate |
| Light Output | 21 Joules |
| Light Source | Strobe |
| Manufacturer | Federal Signal |
| Manufacturer Part Number | G-STR-230-T-M |
| Marine Listed | No |
| Mount Type | Surface;U-Bracket |
| Mounting | U-Bracket, Surface, U B. |
| Net Weight | 0 lbs |
| Nominal Voltage | 240 VAC |
| Operating Current | 0.19 A, 0.33 A, 0.83 A,. |
| Operating Temp. | -58 Degrees to 158 Deg. |
| Operating Temperature | -67-158 ?F, -67 to 158 |
| Operating Voltage | 220-240 VAC |
| Part Number | G-STR-230-T-M |
| Power Source | 24 to 240V AC |
| Product Series | G-STR |
| Product Type | Strobe Light |
| Rating | IP66 |
| Standards | ATEX and IECEx Certifie. |
| Voltage | 220-240VAC |
| Warranty | Five Year |
| Width | 7 29/64 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | gordonelectricsupply.com | G-STR-230-T-M | 575.0 | 1 | In Stock | 155 | FEDERAL-SIGNAL | | 575.0 @ 1 |
 | Walker Industrial | G-STR-230-T-M | 588.28 | 1 | In Stock | 17 | Federal Signal | | 588.28 @ 1 |
 | Zoro | G5577671 | 588.34 | 1 | In Stock | | Federal Signal | 11.45 | 588.34 @ 1 |
 | motorsandcontrol.com | G-STR-230-T-M | 594.28 | 1 | In Stock | | Federal Signal | | 594.28 @ 1 |
| Hawk Electronics | G-STR-230-T-M | 606.0 | 1 | In Stock | | Federal Signal | | 606.0 @ 1 |
 | Lighting Supply | G-STR-230-T-M | 664.29 | 1 | In Stock | | Federal Signal | | 664.29 @ 1 |
 | turtle.com | FED G-STR-230-T-M | 664.86 | 1 | In Stock | | Federal Signal | | 664.86 @ 1 |
 | Galco | G-STR-230-T-M-FS | 724.05 | 1 | In Stock | | Federal Signal | | 724.05 @ 1 |
 | Platt.com | 0253613 | 1250.13 | 1 | In Stock | | Federal Signal | | 1250.13 @ 1 |
