- mpn9144-D-P-156
- brandname: Fluke
- manufacturername: Fluke

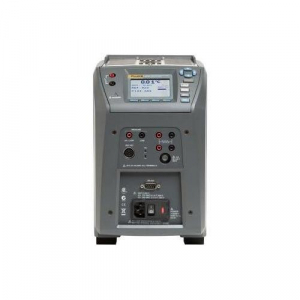

Fluke Calibration 9144-D-P-156 Series 9144 High Temperature Field Metrology Well Calibrator with Process Electronics and 9144 Type D Insert, 50?C to 660?C Range, 115V
- Brand: Fluke
- PartNumber: 9144-D-P-156
- Model: 9144-D-P-156
- Size: with 9144 Type D Insert
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Fluke Calibration
- Label: Fluke Calibration
Attributes
| Key | Value |
|---|
| 4-Wire Device Resistanc. | Range: 0 to 400 ohms/Ac. |
| Accuracy | +/-0.05 Degrees C |
| Agency Compliance | CE, CSA, C-TICK, ROHS, . |
| Application | Field Testing |
| Base Product Number | 9144 |
| Brand and Series | Fluke 9144 |
| Calibration Certificate | NVLAP accredited |
| Calibration Details | NVLAP Accredited Calibr. |
| Calibrator Accuracy | +/-0.35 Degrees C at 42. |
| Calibrator Application | Industrial Process Envi. |
| Calibrator Type | Field Metrology Well |
| Calibrator Weight | 17 lb |
| Category | Test and Measurement |
| Condition | New |
| Country of Origin (subj. | United States |
| Current mA Characterist. | 0.02% + 2 mV Accuracy/4. |
| Display | LCD |
| Display Resolution | 0.01 Degrees |
| Display Temperature Acc. | +/-0.35 Degrees C at 42. |
| For RTD Type | 4-Wire, Ni-120 |
| For Stem Diameter | (2) 3 mm, (2) 4 mm, (2). |
| For Thermocouple Type | Type C, Type E, Type J,. |
| GTIN | #095969420389 |
| Includes | 9144 Field Metrology We. |
| Includes NIST-Traceable. | No |
| Interface | RS-232 |
| Item | Drywell |
| Loop Supply Voltage | 24V DC |
| Manufacturer | Fluke |
| Max. Loop Current | 24 mA |
| Mfr | Fluke Electronics |
| Number of Set Points | Variable |
| Overall Depth | 11.61 in |
| Overall Dimensions | 11 13/32 in H x 7 5/16 . |
| Overall Height | 11.41 in |
| Overall Width | 7.31 in |
| Package | Bulk |
| Power Source Details | 100 to 115V, 230V |
| Probe Connection Types | (1) 4-Terminal RTD Inpu. |
| Product Status | Active |
| Promotion Restriction | Not eligible for promot. |
| Reference Input Resista. | +/--0.0025 ohm Accuracy. |
| Reference Input Tempera. | +/-0.010 Degrees C at -. |
| Reference Junction Temp. | +/- 0.35 Degrees C Accu. |
| Resistance Sensing Curr. | 0.02% at 2 mV; Cal 4-22. |
| RTD Temperature Range | -196 to 660 Degrees C |
| RTD Temperature Range C | -196 Degrees to 660 De. |
| RTD Type | NI-120, 385, 3892, JIS |
| Sensor Type | RTD, Thermocouple |
| Series | * |
| Set Point Style | Adjustable |
| Single Well/Dual Well | Single Well |
| Stability | +/-0.03 Degrees C at 50. |
| Standards | California Proposition . |
| Temperature Accuracy | +/-0.05 Degrees C |
| Temperature Range | -196 Degrees to 660 De. |
| Thermocouple mV Charact. | 0.025% + 0.01 mV at -10. |
| Thermocouple Temperatur. | Type C: +/-1.1 Degrees. |
| Thermocouple Temperatur. | 0 to 1480 Degrees C (ty. |
| Thermocouple Temperatur. | 0 Degrees to 1,480 Deg. |
| Thermocouple Type | C, E, J, K, L, M, N, R,. |
| Typical Cooling Time | 25 min (660 Degrees to. |
| Typical Heating Time | 15 min (50 Degrees to . |
| Typical Uniformity | +/-0.05 Degrees C at 50. |
| Well Depth | 5.91 in |
| Well Size | 5 29/32 D Well |
| With Process Connections | Yes |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Grainger | 33W989 | 8932.0 | 1 | In Stock | 20 | FLUKE | | 8932.0 @ 1 |
 | Radwell | 9144-D-P-156 | 9050.0 | 1 | In Stock | | FLUKE | | 9050.0 @ 1 |
 | valuetronics.com | FLUKE_9144-D-P-156_NEW | 9131.0 | 1 | In Stock | | Fluke | | 9131.0 @ 1 |
| globaltestsupply.com | 9144-D-P-156 | 9131.0 | 1 | In Stock | | Fluke Corporation | | 9131.0 @ 1 |
 | primebuy.com | 9144-D-P-156 | 9131.0 | 1 | In Stock | | Fluke | | 9131.0 @ 1 |
 | jensentools.com | 36666.1 | 9131.0 | 1 | In Stock | | Fluke | | 9131.0 @ 1 |
| Platt.com | 2017658 | 9131.0 | 1 | In Stock | | Fluke | | 9131.0 @ 1 |
| Digi-Key | 11687964 | 9131.06 | 1 | In Stock | 117 | Fluke Electronics | | 9131.06 @ 1 |
 | Lighting Supply | 9144-D-P-156 | 9134.4 | 1 | In Stock | | Fluke | | 9134.4 @ 1 |
| Newark | 60R5745 | 9177.0 | 1 | In Stock | | FLUKE CALIBRATION | | 9177.0 @ 1 |
 | Zoro | G8046193 | 9521.11 | 1 | In Stock | 85 | Fluke | 19.89 | 9521.11 @ 1 |
 | turtle.com | FLK 9144-D-P-156 | 9881.05 | 1 | In Stock | | Fluke | | 9881.05 @ 1 |
