Hubbell HBL3521C

mpnHBL3521C
brandname: Hubbell Wiring Device-Kellems
manufacturername: Hubbell Wiring Device-Kellems

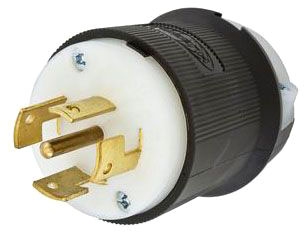

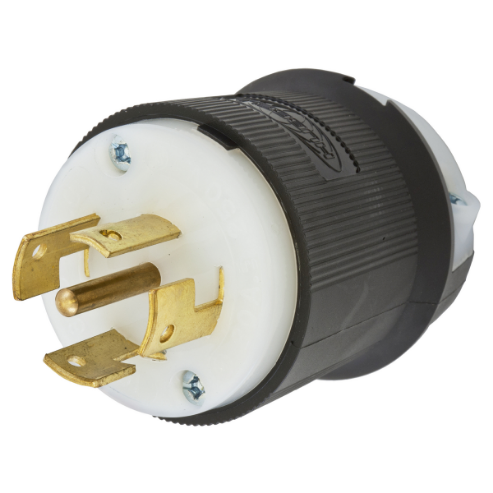

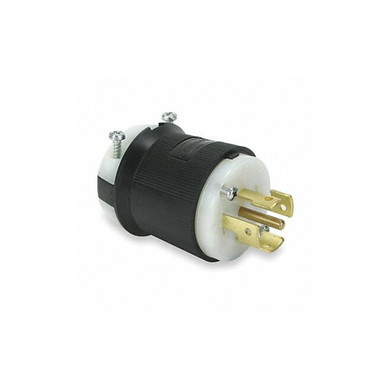

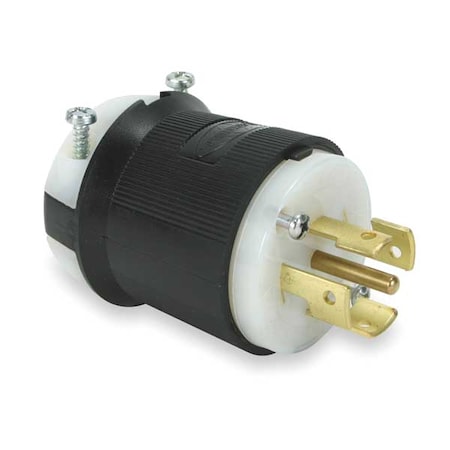

Hubbell HBL3521C Locking Plug, 20 amp, 250V/10 amp, 600V, 4 Pole, 5 Wire

Brand: Hubbell
PartNumber: HBL3521C
Model: HUBHBL3521C
PackageQuantity: 1
Binding: Misc.
Manufacturer: Hubbell
Label: Hubbell

Attributes

Key	Value
Agency Approvals	UL ; CSA
Amperage	20/10 A
Amperage Rating	20A
Amps	20/10
Amps - Plugs and Recept.	20/10
Antimicrobial	No
Application	Extra Heavy Duty Indust.
Approvals	CSA, UL
AWG Range	#16 AWG to #8 AWG
Blade Material	Brass
Body Length	2.33 in
Brand	Twist-Lock, Hubbell
Cable range	0.350 - 1.150 in
Cable Range	0.350 - 1.150 in.
Color	Black/White, Black ; Wh.
Color - Plugs and Recep.	Black/White
Color Family	Multi
Connection Orientation	Straight
Connectivity	Screw Terminals
Contact Material	Brass
Contact Type	Pin
Cord dia	35 in-1.15 in
Cord Diameter	0.35 to 1.15 in
Cord range	0.350 in-1.150 in (9-29)
Cord Size	0.350 in to 1.150 in
Cord type	All Listed Portables
Corrosion Resistant	No
Country of Origin	US - United States
Country of Origin (subj.	United States
Current / amperage rati.	20/10 A
Current Rating	10 A, 20 A, 10/20 A
Current rating	10 A
Current Stock	97
Dielectric strength	Withstands 2,000V minim.
Dimensions	2.33 in x 2.33 in x 2.7.
Display Type	Standard Sized
ECCN	EAR99
Environmental conditions	Indoor Dry Unless Prote.
Face Diameter	2.21 in
Family Name	Twist-Lock? Family
Family Series	Hubbell Plugs & Recepta.
For Environment	Dry
For Location	Indoor
For Maximum Cable Diame.	1.15 in
For Minimum Cable Diame.	0.35 in
Grade	Industrial
Grade - Plugs and Recep.	Industrial
Gross Weight	0.3 lbs
Grounding	Grounded
Height	2.75 in., 2.75 in
Housing Color	Black, White
Housing Colour	Black, White
Housing Material	Black Nylon, Nylon
International Shipping	No
IP Rating	20, IP20
Isolated Ground	No
Item	Locking Plug
Item - Plugs and Recept.	Locking Plug
Item Number	HBL3521C
Lead Time	Expected to ship in 1-2.
Length	2.33 in, 2.33 in.
Manufacturer	Hubbell
Manufacturer Part Number	HBL3521C
Market	Industrial
Material	Nylon
Material - mounting har.	Cord Mounted
Maximum Operating Tempe.	75 Degrees C
Maximum Wire Size	8 AWG
Minimum Operating Tempe.	-40 Degrees C
Minimum Wire Size	16 AWG
Mpn	HBL3521C
NEMA Configuration	Non-NEMA, Non-NEMA, 5 B.
NEMA Plug Configuration	Non-NEMA
NEMA Plug Configuration.	20A, Non-NEMA
Nema Rating	Non-NEMA
Net Weight	0 lbs
No. of Poles	4
No. of Wires	5
Number of Blades	5
Number of Contacts	5
Number of poles	4-Pole
Number of Poles	4
Number of Wires	5
Number of wires	5-Wire
Operating temperature	Maximum continuous 75C .
Outside Diameter	2.33 in
Overall Length	2.33 in
Phase	1, 3, Three, Three phase
Polarized	Yes
Primary Type	Twist Lock
Product Header	Twist-Lock Plug
Rated Voltage	250/600V AC
Resistance Properties	Chemical Resistant, Imp.
Series	Insulgrip Series
Shrouded	No
Shrouded / Non-Shrouded	Non-Shrouded
SKU	ZO-G0482151
Standard	Certified to CSA C22.2 .
Standards	UL, CSA, UL/CSA
SubCategory	Electrical
Termination	Screw
Type	Plugs, Locking Plug
UL 94 Flammability Rati.	HB
UNSPSC	39121402
UPC	783585039916
UPC Code	783585039916
Voltage	250/600VAC, 250/600 VAC
Voltage - Plugs and Rec.	250/600V AC
Voltage Rating	250 ; 600 V, 250/600V AC
Voltage rating descript.	250/600 VAC
Watertight	No
Width	2.33 in.
Width (in)	2.33
Wire Connection Type	Screw Terminals
Wire Size	#12
Wire size	#16 AWG to #8 AWG
Wiring Style	Standard

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Onlinecomponents.com	HBL3521C	42.76	1	6	HUBBELL		42.76 @ 1
Zoro	G0482151	45.95	1	In Stock	Hubbell	0.35	45.95 @ 1
Kelly Hayes	HBL3521C	47.86	1	33	Hubbell Wiring Device-Kellems		47.86 @ 1
sustainablesupply.com	C1192760	52.12	1	In Stock	Hubbell	0.35	52.12 @ 1
Carlton Bates Company	78358503991	52.42	1	In Stock	HUBBELL		52.42 @ 1
simsupply.com	ZO-G0482151	59.53	1	97	Hubbell		59.53 @ 1
gordonelectricsupply.com	HBL3521C	62.43	1	In Stock	HUBBELL		62.43 @ 1
standardelectricsupply.com	120456	64.57	1	In Stock	Hubbell		64.57 @ 1
MRO Supply	1022218	64.57	1	In Stock	Hubbell Wiring		64.57 @ 1
Galco	HBL3521C-HBBL	66.47	1	In Stock	Hubbell	0.3	66.47 @ 1
Raptor Supplies	AC8PYU	69.812028	1	In Stock	HUBBELL WIRING DEVICE-KELLEMS		69.812028 @ 1
steinerelectric.com	26357	72.69	1	In Stock	Hubbell Wiring Device-Kellems		72.69 @ 1
grainger.ca	HBLHBL3521C	75.25156608	1	In Stock	HUBBELL WIRING DEVICE-KELLEMS	0.35	75.25156608 @ 1
Radwell	HBL3521C	78.09	1	34	HUBBELL KELLEMS		78.09 @ 1
Graybar	88126731	80.7744	1	In Stock	Hubbell Wiring Device - Kellems		80.7744 @ 1
us.rs-online.com	70116112	83.21	1	4	Hubbell Wiring Device-Kellems		83.21 @ 1
kirbyrisk.com	485534	135.94	1	In Stock	Hubbell		135.94 @ 1
