Leeson 121868.00

B00EPL5ASM

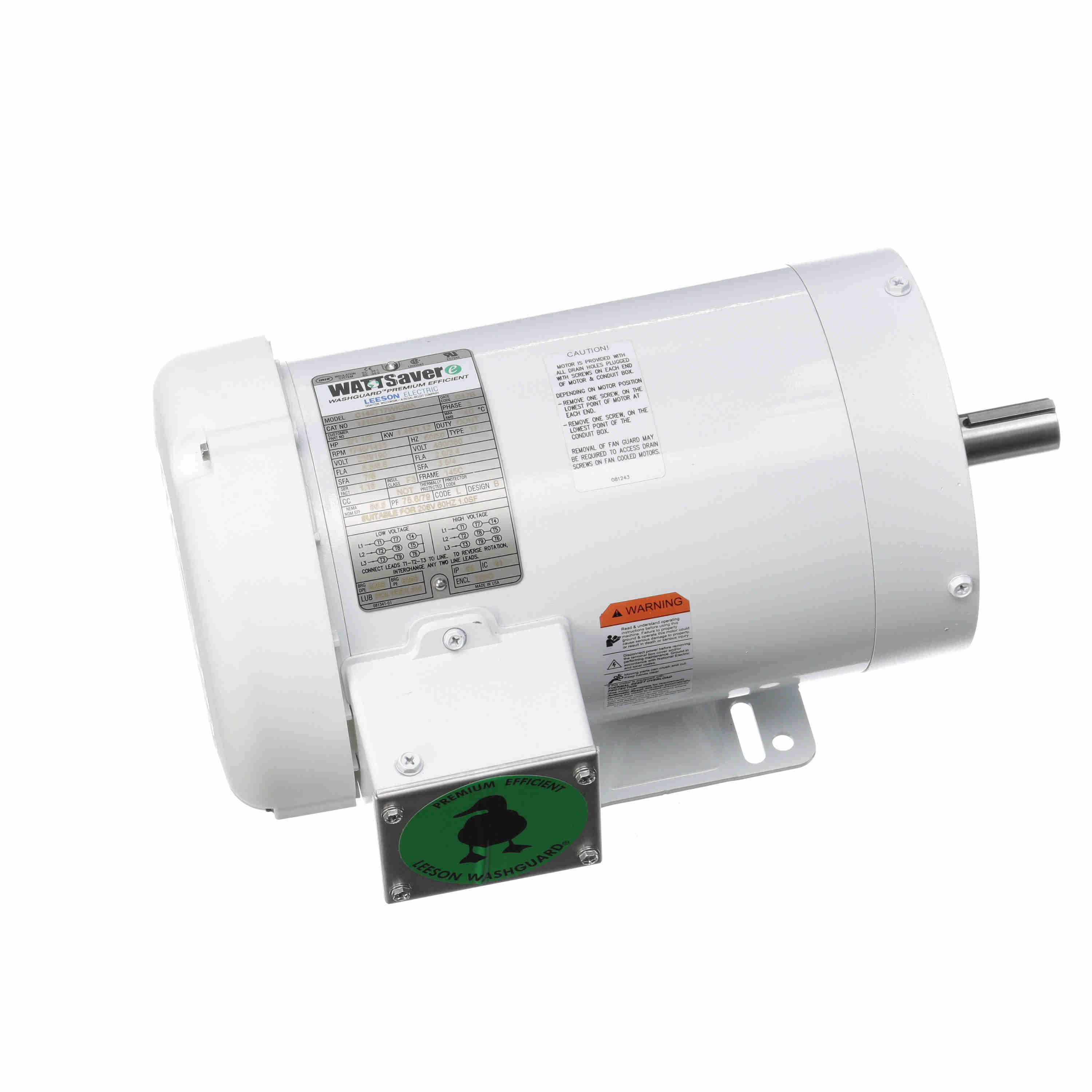

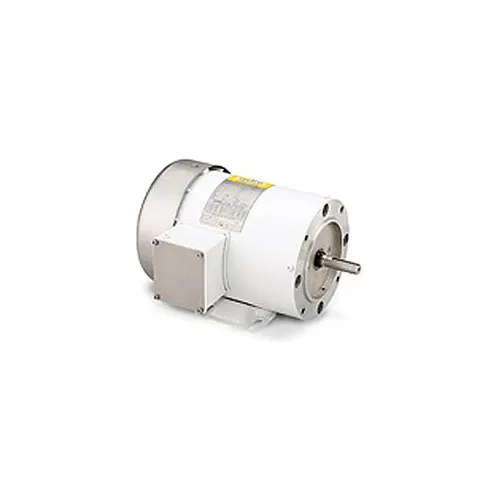

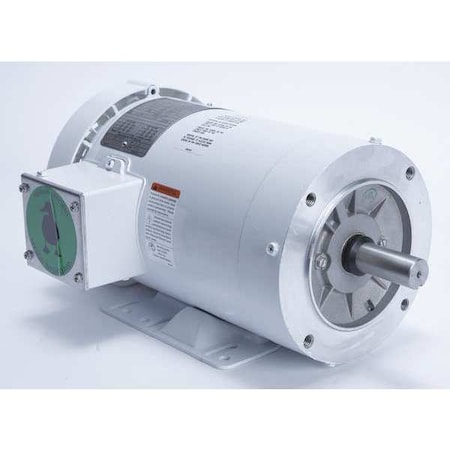

Leeson 121868.00 White Epoxy Painted Washguard Motor, 3 Phase, 145 C Frame, Rigid Mounting, 2HP, 1800 RPM, 208-230/460V Voltage, 60/50Hz Fequency

Leeson 121868.00 White Epoxy Painted Washguard Motor, 3 Phase, 145 C Frame, Rigid Mounting, 2HP, 1800 RPM, 208-230/460V Voltage, 60/50Hz Fequencyzoom

Attributes

Key Value
Amperage Rating5.8 A
Amps5.8/2.9
Application TypeFan & Blower Motors
ApprovalsCSA, UL
Bearing TypeBall, 13.75
BearingsBall
Body Dia.7.4 in
Bolt Circle Dia.5 7/8 in
BrandLeeson
CC NumberCC005A
Class/GroupC145T17WK30
CompositionSteel
ConstructionRolled Steel
CT Speed Range10:1
Current Stock9
Description:..2HP..1745RPM.145.TEFC.
Dimensions13-3/4 in L
Drive End Bearing Size6205
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency86.5%, 86.5
Efficiency %86.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight49.00
Family SeriesLeeson Motors, Washguar.
FL Amps6-5.8/2.9&6.8/3.4
FL Efficiency86.5
Frame145TC, 145C
Frame MaterialRolled Steel
Frequency60
Frequency Rating50/60 Hz
Full Load Amps2.00
Gross Weight0 lbs
Hertz60
Horsepower2 hp
HP2
Hz60
Insulation ClassClass F, F
International ShippingNo
ItemWashdown Motor
Item Number121868.00
KW1.5
Lead TimeExpected to ship in 1-2.
Length Less Shaft11 15/16 in
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number121868.00
Manufacturers Warranty .1 yr
MaterialStainless Steel
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
MFG Part #:121868.00
Model NumberC145T17WK30
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Shell Length8.00"
Motor Thermal ProtectionNone
MountingFoot Mount, Rigid Base
Mounting TypeRigid, C-Face Footed
Mpn121868.00
Nameplate RPM1,745
NEMA Frame145TC
Net Weight49 lbs
Nominal Efficiency86.5 %
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length13 15/16 in, 13.93", 13.
Part Number121868.00
Phase3, Three
Product SeriesWashguard
Product TypeWashdown Duty, Three Ph.
RotationReversible
RPM1745, 1700 - 1800, 1,80.
RPM Range1,701-1,800
Service Factor1.15, 1.149
Shaft Dia.7/8 in
Shaft DiameterUL;CSA, 0.875, 0.875"
Shaft Length2 1/4 in, 2.25", 2.25
Shaft Size7/8 in Dia
Ship Weight49 lbs.
SKUZO-G4609075
Special FeaturesC Face With Base, 86.5%.
Speed1800 rpm
Speed (RPM)1745
SubCategoryMotors/Ac Motors
Supplier:LEESON ELECTRIC CORPORA.
UPC691720989319
UPC:691720989319
Voltage208V, 230V, 460V, 230/4.
Voltage Compatibility200-230/440V AC, 200-23.
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com121868566.01In StockLEESON566.0 @ 1
AmazonTPB0773QZTVR682.331In Stock3Leeson Electric682.33 @ 1
thumbzoomMRO Supply2526283800.861In StockLeeson800.86 @ 1
thumbzoomZoroG4609075854.99118Leeson48.7854.99 @ 1
thumbzoomemotorpro.com121868.00862.411In StockLeeson49.0862.41 @ 1
thumbzoomGlobal IndustrialWBB228070979.01In StockLeeson979.0 @ 1
thumbzoomsimsupply.comZO-G4609075984.6419Leeson984.64 @ 1
thumbzoommotorsandcontrol.comLE-121868.00985.76186Leeson Electric49.0985.76 @ 1
us.rs-online.com73396825993.511In StockLeeson993.51 @ 1
thumbzoomGalco121868.00-LEES993.511In StockLeeson49.0993.51 @ 1
thumbzoomAutomation Direct121868.001031.018Leeson48.01031.0 @ 1
kscdirect.comLEE 121868.001052.081In StockLEESON ELECTRIC CORPORATION1052.08 @ 1
cbtcompany.com121868.001192.461In StockLeeson Electric1192.46 @ 1
thumbzoomWalker Industrial121868-001200.981In Stock17Leeson1200.98 @ 1
thumbzoomRaptor SuppliesAJ2RJZ1621.1631151In StockLEESON1621.163115 @ 1
thumbzoompumpproducts.com121868.001688.211In StockLeeson1688.21 @ 1
