- mpnPRG102A
- brandname: Liberty Pumps
- manufacturername: Liberty Pumps

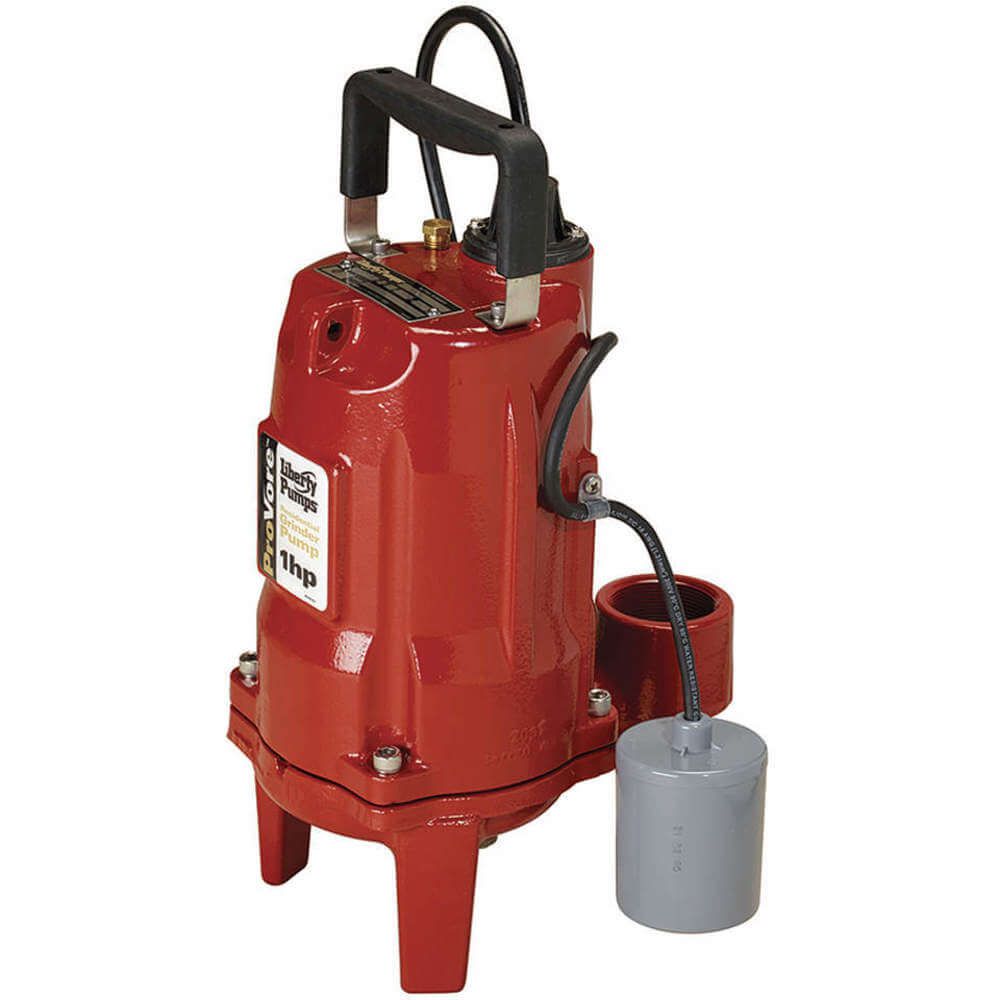

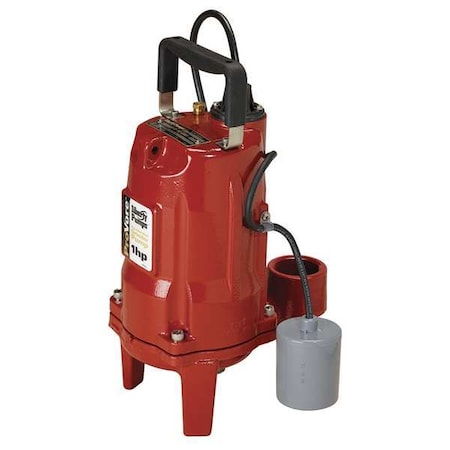

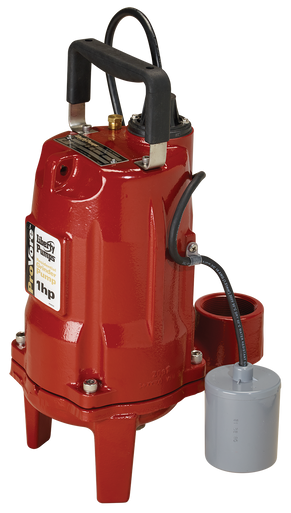

Liberty Pumps PRG102A ProVore PRG Series Automatic Residential Grinder Pump, 1 HP, 230-volt
- Brand: Liberty Pumps
- PartNumber: PRG102A
- Model: PRG102A
- PackageQuantity: 1
- Binding: Tools & Home Improvement
- Manufacturer: Liberty Pumps
- Label: Liberty Pumps
Attributes
| Key | Value |
|---|
| ADA Compliant | No |
| Adjustable | No |
| AMP | 6 |
| Amperage Rating | 6 A Full Load/23.7 A Lo. |
| AMPS | 6A</li> |
| Application | Commercial, Residential |
| Automatic Shut-Off | Yes |
| Automatic/Non Automatic | Automatic |
| Base Diameter | 11 in |
| Base Material | Cast Iron |
| Bearing Type | Upper Ball/Lower Ball |
| Bearings | Upper and lower, ball b. |
| Body Dia. | 11 in |
| Body Material | Cast Iron |
| Brand | Liberty Pumps |
| Brand Model Compatibi. | ProVore? |
| Built-In Grinder | Yes |
| Clean Bagged | No |
| Coating | Epoxy, Powder Coated |
| Collection | PRG Series |
| Color Finish | Black, Grey, Red |
| Color Finish Category | Reds |
| Cord Length | 10 ft |
| Cord Length - Pumps | 10 ft. |
| Cord Type | SJTW 10 ft |
| Corded Cordless | Corded |
| Cover Included | No |
| CSA Certified | CSA 22.2 No. 108 |
| Current Stock | 11 |
| Cutter and Cutter Plate | V-Slice design. 440 Sta. |
| Description: | 1 HP, PRG Series, 1 PH,. |
| Diameter | 11 in, 11" |
| Discharge | 2 in, 2"</li> |
| Discharge Configuration | Horizontal |
| Discharge Dia. | 2 in |
| Duty | Intermittent |
| Electrical Voltage | 220-240 Volt |
| End Connection 1 | FNPT |
| End Connections | FNPT |
| Energy Star Compliant | No |
| Fits Pipe Size | 1-1/2 in |
| Fitting Size 1 | 2 in |
| Fitting Sizes | 2 in |
| Flow Rate | 44 gpm |
| Flow Rate @ 10 Ft. of H. | 42 gpm |
| Frequency Rating | 60 Hz |
| GPM of Water @ 25 Ft. o. | 32 |
| GPM of Water @ 40 Ft. o. | 15 |
| Hardware | Stainless Steel</li> |
| Height | 17-5/8 in, 17-3/4" |
| Horsepower | 1 hp |
| HP | 1</li>, 1 hp |
| HZ | 60</li> |
| IAPMO Listed | No |
| Impeller | Vortex, Cast Iron, Clas. |
| Impeller Material | Cast Iron |
| Impeller Type | Cast Iron |
| Installation Type | Freestanding |
| International Shipping | No |
| ISO Specifications | ISO 9001 |
| Length | 11 in, 13-1/2" FNPT |
| MA Approved | Yes |
| Manufacturer | Liberty Pumps, Liberty . |
| Manufacturers Warranty . | 3 yr |
| Material | Cast Iron |
| Max Liquid Temp | 60 C / 140 F</li> |
| Max. Diameter Solids | 2 in |
| Max. Head | 50.0 ft |
| Maximum Feet of Head | 50 |
| Maximum Flow Rate | 44 gpm |
| Maximum Head | 50 ft |
| Maximum Temperature | 104 |
| Mechanical Shaft Seal | Unitized Silicon Carbid. |
| MFG Part #: | PRG102A |
| Min. Sump Pit Dia. | 24 in |
| Motor | CSCR style, Class B win. |
| Motor Housing | Cast Iron, Class 30</li> |
| Motor Speed | 3450 rpm |
| Mpn | PRG102A |
| NSF Certified | No |
| Origin | Domestic |
| Outlet Size | 2 in FNPT |
| Overall Height | 17 3/4 in |
| Overall Length | 13 1/2 in |
| Paint | Powder Coat</li> |
| Phase | 1 ph, Single Phase, 1</. |
| Phase - Pumps | 1 |
| Power Cord Type | SJTW, quick disconnect . |
| Power Source | Electric |
| Product | Sump |
| Product Type | Pump |
| Prop 65 | WARNING: Cancer and Rep. |
| Propeller Direction | Clockwise |
| Pump Application | Sewage |
| Pump Body Material | Cast Iron |
| Pump HP | 1 |
| Pump Motor Type | Thermally Protected |
| Pump Mounting | Free Standing |
| Pump Phase | 1 |
| Pump Stage | 1 |
| Rated Head | 30 ft |
| RPM | 3450 |
| Series | PRG |
| Service Factor | 1 |
| Shaft | 303 Series Stainless St. |
| SKU | ZO-G8487446 |
| SubCategory | Pumps |
| Supplier: | Liberty Pumps Inc |
| Switch | Mechanical wide angle f. |
| Switch Actuation | Tether Float |
| Temperature Range | Up to 104 Deg F |
| Temperature Rating | 221 deg F Thermal Overl. |
| Turn On Turn Off Levels | Turn-on 13-1/2 in/Turn-. |
| Type | LPRG102A |
| UL Listed | UL 778 |
| UPC | 671812121308 |
| UPC: | 671812121308 |
| VAC at 60 Hz | 230 |
| Volts | 230</li>, 230V |
| Volute | Cast Iron, Class 30</li> |
| Weight | 58 lbs</li>, 58 |
| Width | 11 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | standardplumbing.com | PRG102A | 1252.5 | 1 | In Stock | | LIBERTY PUMPS | | 1252.5 @ 1 |
 | plumbing-deals.com | LIBPRG102A | 1305.85 | 1 | In Stock | | Liberty Pumps | | 1305.85 @ 1 |
 | coreandmain.com | 10592411PA | 1320.0 | 1 | In Stock | | LIBERTY PUMPS? | | 1320.0 @ 1 |
| ferguson.com | 4518359 | 1327.5 | 1 | In Stock | | Liberty Pumps | | 1327.5 @ 1 |
 | sumppumpsdirect.com | PRG102A | 1327.5 | 1 | 2 | | Liberty Pumps | | 1327.5 @ 1 |
 | bigfrogsupply.com | PRG102A | 1327.5 | 1 | In Stock | | Liberty Pumps | 58.0 | 1327.5 @ 1 |
 | PlumbersStock | 279880 | 1327.5 | 1 | In Stock | | Liberty | 58.0 | 1327.5 @ 1 |
 | Zoro | G8487446 | 1327.5 | 1 | 26 | | Liberty Pumps | 60.5 | 1327.5 @ 1 |
 | PexUniverse | PRG102A | 1327.5 | 1 | In Stock | | Liberty Pumps | | 1327.5 @ 1 |
 | sustainablesupply.com | C1744755 | 1356.64 | 1 | In Stock | | Liberty Pumps | 60.5 | 1356.64 @ 1 |
 | pumpproducts.com | PRG102A | 1361.54 | 1 | In Stock | 10 | Liberty | | 1361.54 @ 1 |
 | suppliesdepot.com | PRG102A | 1417.37 | 1 | In Stock | | LIBERTY | | 1417.37 @ 1 |
| kscdirect.com | LIB PRG102A | 1433.56 | 1 | In Stock | | Liberty Pumps Inc | | 1433.56 @ 1 |
 | simsupply.com | ZO-G8487446 | 1539.9 | 1 | 11 | | Liberty Pumps | | 1539.9 @ 1 |
 | Edge Supply | PRG102A | 1770.0 | 1 | In Stock | | Liberty Pumps | | 1770.0 @ 1 |
 | Raptor Supplies | AF7KPA | 2002.112424 | 1 | In Stock | | LIBERTY PUMPS | | 2002.112424 @ 1 |
