Molex / Waldom 70553-0106

mpn705530106
brandname: Molex
manufacturername: Molex

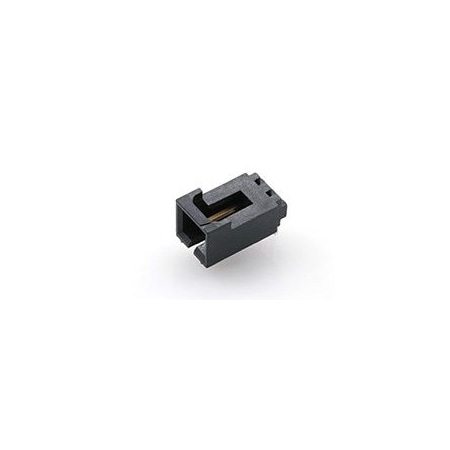

70553-0106, Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole SL Tube (50 Items)

70553-0106, Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole SL Tube (50 Items)

zoom

Brand: Molex / Waldom
PartNumber: 70553-0106
Model: 70553-0106
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Applications	Automotive, General Pur.
Base Product Number	070553
Category	Connectors, Interconnec.
Color	Black
Connector	socket
Connector series	SL
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	30.0?in (0.76?m)
Contact Finish Thicknes.	74.8?in (1.90?m)
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.130" (3.30mm)
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Contacts pitch	2.54mm
Current Rating	3 A
Current Rating (Amps)	-
Electrical mounting	THT
Family Name	SL
Fastening Type	Latch Holder
Features	-
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.215" (5.45mm)
Insulation Material	Polyester, Glass Filled
Kind of connector	male
Manufacturer	MOLEX
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	MOLEX
Mounting Type	Through Hole, Right Ang.
Number of Circuits	2
Number of pins	2
Number of Positions	2
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-40?C ~ 105?C
Overall Contact Length	-
Package	Tube
Package Quantity	1
Pitch - Mating	0.100" (2.54mm)
Plating Material	Gold
Product Status	Active
Row Spacing - Mating	-
Series	SL 70553, 70553 Series
Shrouding	Shrouded - 4 Wall
Spatial orientation	angled 90?
Style	Board to Cable/Wire
Termination	Solder
Type of connector	wire-board
Voltage Rating	250V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	70553-0106	0.67	1	50		MOLEX / WALDOM		0.67 @ 50
	Verical	70553-0106	0.67	48	38628		Molex		0.67 @ 50
	Waldom	MOLEX 70553-0106	0.68	80	20196		MOLEX		0.68 @ 80
	TME	MX-70553-0106	0.8	3	50		MOLEX		0.8 @ 50
	NEP Electronics	70553-0106	0.9412	80	50		Molex		0.9412 @ 80
	us.rs-online.com	71463979	0.98	1	50		Molex Incorporated		0.98 @ 50
	Newark	25M5150	0.985	1	1045		MOLEX		0.985 @ 50
	Mouser	538-70553-0106	1.28	1	2200		Molex		1.28 @ 50
	Digi-Key	1643386	1.75	1	50		Molex		1.75 @ 50
	Component Electronics	299-5495	1.8	1	50		Molex		1.8 @ 50
	AmazonTP	B07QP8WYG1	46.8	1	50	1	Molex / Waldom		46.8 @ 50
	Zoro	G4049233	100.0	80	50		Molex		100.0 @ 80
