Schneider Electric 9036DG2

B000H5O5OK

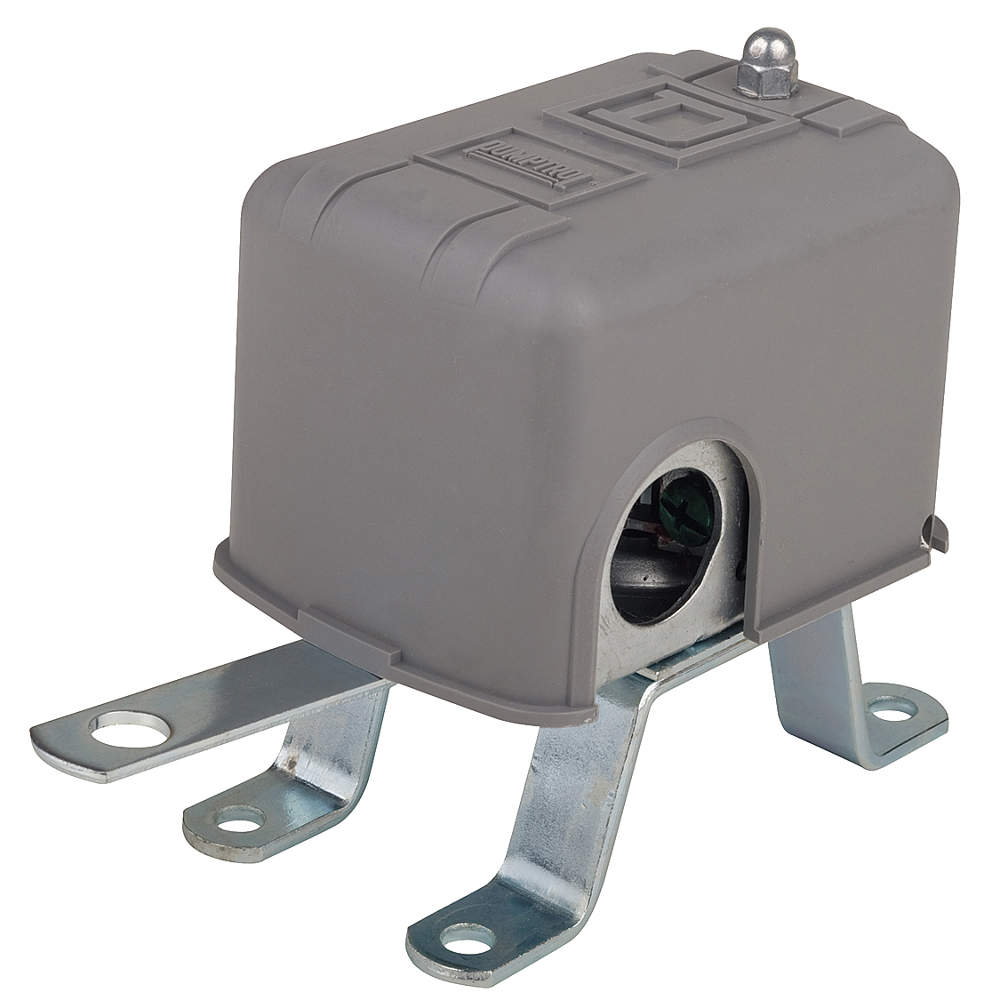

Square D by Schneider Electric 9036DG2 Commercial Open Tank Float Switch, Nema 1, Contacts Close On Rise, 3-1/2" , Black

Square D by Schneider Electric 9036DG2 Commercial Open Tank Float Switch, Nema 1, Contacts Close On Rise, 3-1/2" , Blackzoom

Attributes

Key Value
[Ui] Rated Insulation V.575 V UL 508
Ambient Air Temperature.-22-220 ?F
Ambient Air Temperature.-22-220 ?F
Amps10 A
ASIN?:?B000H5O5OK
Best Sellers RankSee Top 100 in Tools & .
Body MaterialSteel
BrandSquare D, Schneider
Cable Entry Number3 knock-outs for 1/2" c.
CategorySensors, Transducers
Circuit TypeDouble Pole
Circularity ProfileENVEOLI111210EN
ConditionNew
Conduit Size3 1/2 in
Connector TypeScrew
Contact FormDPST
Contact Operationcontacts close on liqui.
Contacts Type And Compo.2 NC, snap action, DPST.
Controlled Fluidfresh water specific gr.
Country of OriginUSA, MEXICO
Date First AvailableFebruary 7, 2007
Date First Available?:?February 7, 2007
DescriptionFLOAT SWITCH,OPEN TANK,.
Device Applicationopen tank general purpo.
Device Mountingpedestal
Device Short Name9036D
Digi-Key Part Number4008-9036DG2-ND
Electrical Circuit Typepower circuit
Electrical Connectionscrew-clamp terminals 1.
Electrical ConnectionsScrew Clamp
Electrical Durability100 cycles 60 cyc/mn
Enclosure Materialpolypropylene or equiva.
Environmental DisclosureENVPEP111211EN
Estimated Lead Time (in.4
Eu Rohs DirectivePro-active compliance (.
Factory Modificationwithout
Float Movementvariable adjustable
Float PositionBelow, any
Float Rod Anglevertical
Float Switch Contact Fo.DPST
Force Down To Trip8 ozf
Force Up To Trip9 ozf
GTIN785901575214, 078308710.
Gtin00785901575214
Height5.250, 4.27 in
HP @ 1 Phase - 120V2 hp
HP @ 1 Phase - 240V3 hp
HP @ 3 Phase - 240V5 hp
Is Discontinued By Manu.No
Is Discontinued By Manu.No
ItemOpen Liquid Level Switch
Item Dimensions LxWxH5 x 10 x 8 inches
Item model number9036DG2
Item model number?:?SQD9036DG2
Kit Compositionfloat switch || rod and.
Length3.250
Local Signallingwithout
ManufacturerSquare D, Schneider Ele.
Manufacturer Product Nu.9036DG2
Manufacturer Standard L.1 Weeks
Manufacturer?:?Square D
Material - Housing & Pr.Polypropylene (PP)
Max. Current10 A
Max. Voltage575
Maximum Operating Rate60 cyc/mn
Mechanical Durability300 cycles
Mercury FreeYes
MfrSchneider Electric
Minimum Liquid Specific.0.85
Motor Power Kw1.5 kW 2 hp)115 V AC, 1.
MountingOpen Tank
Mounting TypeChassis Mount, Screw Mo.
Mpn9036DG2
Nema Degree Of Protecti.NEMA 1 UL 50
Nema RatingNema 1
NEMA Rating1
Net Weight1.18 lb(US)
Operating Positionvertical position only
Operating Temp. Range-22 Degrees to 220 Deg.
Operating Temperature-30?C ~ 104?C
Output ConfigurationDPST-NC
Output TypeSwitch
Overall Length7.1 in
PackageBox
Package Quantity1
Product CertificationsUL listed file E12158 |.
Product Destinationfor open tank or sump
Product Dimensions6.9 x 5.3 x 3.3 inches;.
Product Dimensions?:?5 x 10 x 8 inches; 1.2 .
Product Or Component Ty.float switch
Product Specific Applic.liquid level control
Product StatusActive
Product with faster shi.true
Quantity Per Setset of 1
Range Of ProductSquare D Pumptrol
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
Series9036D, -
Shippingundefined (Fixed Shippi.
Short-Circuit Protection20 A cartridge fuse gG
Size MeasureIN
StandardsUL 508 || CE, CSA, UL
Sustainable Offer StatusGreen Premium product
Switch Actuation Level-
Switch FunctionClose on Rise
Switch Typefloat switch
Terminal Block Type4 terminals
Terminals Description I.line-load-load-line
TypeLiquid
Type Of Packingindividual
UNSPSC52161525
Upc785901575214
VA Rating460V AC
Voltage575VAC
Voltage Rating-
Warranty18 months
Weight2.000000, 1.120, 1.40
Weight MeasureLB
Width6.950, 2.53 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB000H5O5OK38.491In Stock2Schneider Electric38.49 @ 1
Radwell9036-DG-241.61In StockSCHNEIDER%20ELECTRIC41.6 @ 1
thumbzoomNRI IndustrialD63115545.391In StockSQUARE D45.39 @ 1
thumbzoomindustrialrefrigerationparts.com9036DG248.551In StockSquare D2.048.55 @ 1
hvacdiscountstore.comSCH--9036DG250.0514SCHNEIDER ELECTRIC (SQUARE D)50.05 @ 1
thumbzoomcappusa.com165227252.121In StockSquare D52.12 @ 1
thumbzoomZoroG051386152.651In StockSquare D1.1552.65 @ 1
thumbzoomsuperbreakers.com9036DG254.321In StockSquare D54.32 @ 1
Mouser996-9036DG256.4615Square D56.46 @ 1
thumbzoomgordonelectricsupply.com9036DG257.091In Stock10SQUARE D57.09 @ 1
thumbzoomsustainablesupply.comC117924657.091In StockSquare D1.1557.09 @ 1
Onlinecomponents.com9036DG257.271In StockSquare D57.27 @ 1
steinerelectric.com3386762.41In StockSquare D?62.4 @ 1
thumbzoommidwestapplianceparts.com9036DG2-SQ-P62.4614Squared62.46 @ 1
thumbzoomDigi-Key1637849562.671In StockSchneider Electric62.67 @ 1
thumbzoomHD Supply22179563.621In StockSchneider1.1263.62 @ 1
thumbzoomVoomi Supply9036DG267.991In StockSchneider Electric (Square D)67.99 @ 1
thumbzoommayerelectric.comSQD9036DG269.091In StockSQUARE D1.1869.09 @ 1
thumbzoomState SupplySF5009A82.291In StockSquare D1.482.29 @ 1
thumbzoomNational Supply Network6965811083.11In StockSquare D83.1 @ 1
kirbyrisk.com239546999.371In StockSquare D99.37 @ 1
thumbzoomhomeessentialsdirect.com9036DG2101.11In StockSchneider Electric101.1 @ 1
thumbzoomRaptor SuppliesAF9GMT105.5448811In StockSQUARE D105.544881 @ 1
