TB Woods 942LB

mpn942LB
brandname: T.B. Woods
manufacturername: T.B. Woods

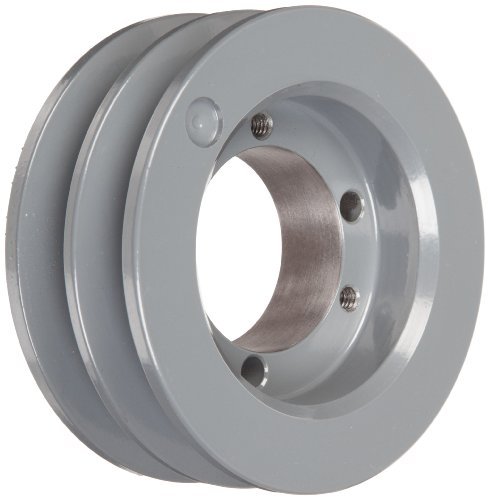

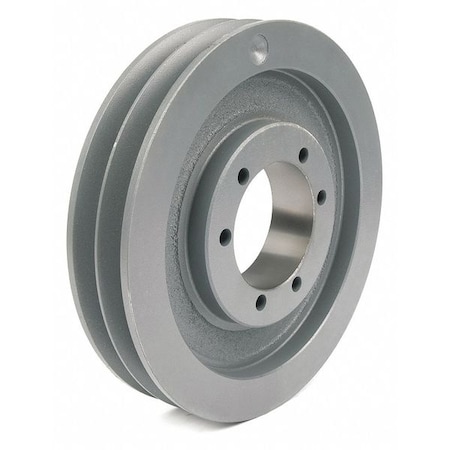

TB Woods 942LB Classical V-Belt Sheave, B Belt Section, 2 Grooves, SF Bushing required, Cast Iron, 9.75" OD

TB Woods 942LB Classical V-Belt Sheave, B Belt Section, 2 Grooves, SF Bushing required, Cast Iron, 9.75" OD

zoom

Brand: TB Woods
PartNumber: 942LB
Size: 2 Grooves, 9.75 inches OD
PackageQuantity: 1
Binding: Misc.
Manufacturer: TB Woods
Label: TB Woods

Attributes

Key	Value
Balance	Standard, 1 plane
Belt section	A-B
Bore type	Quick disconnect bushing
Bushing	SF
Component WR2 (lbs ft2)	1.31
Country of Origin (subj.	United States
Datum diameter	9.4
Dimension	2
Dimension (E)	0.31
Dimension (L)	2.00
Dimension (M)	0.06
Face width	1.75
Face width (in)	1.75
Groove cross section se.	A-B
Hub location	0.38
Hub location (in)	0.38
I.D.	8.13
Inertia WR?	126
Inside diameter (in)	8.13
Item	V-Belt Sheave,Classical.
Material type	CI
Max RPM	2570
Number of grooves	2
O.D.	9.75
Outside diameter (in)	9.75
Pitch diameter	9.81
RPM upper limit	2570

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G1534799	52.1	1	In Stock	11	Tb Woods	14.5	52.1 @ 1
	MRO Supply	346702	168.89	1	In Stock		TB Woods		168.89 @ 1
	us.rs-online.com	73931408	187.35	1	In Stock		TB Wood's (Altra)		187.35 @ 1
