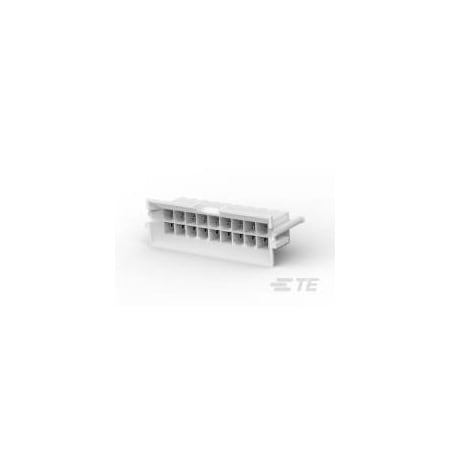

TE Connectivity 1-1586585-8 VAL-U-LOK Series Connector System

mpn1-1586585-8
brandname: TE Connectivity
manufacturername: TE Connectivity

TE Connectivity 1-1586585-8 VAL-U-LOK Series Connector System

TE Connectivity 1-1586585-8 VAL-U-LOK Series Connector System

zoom

Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Applications	General Purpose, Indust.
Base Product Number	1586585
Category	Connectors, Interconnec.
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	39.4?in (1.00?m)
Contact Finish Thicknes.	39.4?in (1.00?m)
Contact Length - Mating	-
Contact Length - Post	0.138" (3.50mm)
Contact Material	Brass Alloy
Contact Shape	Square
Contact Type	Male Pin
Country of Origin (subj.	China
Current Rating (Amps)	9A
Description	CONN HEADER VERT 18POS .
Detailed Description	Connector Header Throug.
Digi-Key Part Number	1-1586585-8-ND
Fastening Type	Latch Holder
Features	Board Lock
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.555" (14.10mm)
Insulation Material	Polyamide (PA), Nylon
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	1-1586585-8
Manufacturer Standard L.	13 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-2
Mfr	TE Connectivity AMP Con.
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-40?C ~ 105?C
Overall Contact Length	-
Package	Tray
Pitch - Mating	0.165" (4.20mm)
Product Status	Active
Row Spacing - Mating	0.165" (4.20mm)
Series	VAL-U-LOK
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600VAC

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	1-1586585-8	0.5075	1	560		TE Connectivity / AMP Brand		0.4826 @ 320
	Verical	1-1586585-8	0.59	55	280		TE Connectivity / AMP		0.59 @ 280
	Digi-Key	1833586	0.690857142857	150	1050		TE Connectivity AMP Connectors		0.690857142857 @ 280
	Newark	95Y4830	1.12	80	280		AMP - TE CONNECTIVITY		1.12 @ 280
	RS Delivers	865-3700	1.134	1	280		TE Connectivity		1.134 @ 280
	Zoro	G600939103	1.17	280	280		Te Connectivity		1.17 @ 280
