TE Connectivity 1-1393771-9

B00KSN171A

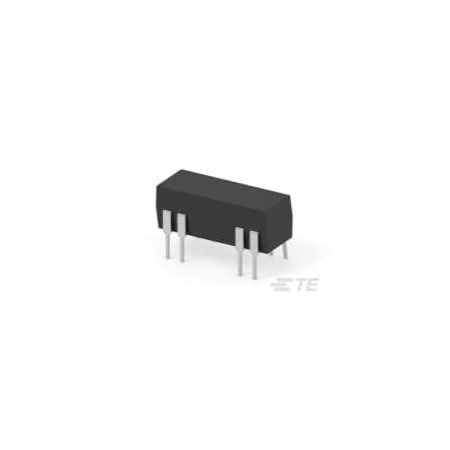

TE Connectivity Part Number 1-1393771-9

TE Connectivity Part Number 1-1393771-9zoom

Attributes

Key Value
Alternate Mfr Part Numb.1-1393771-9
Body Depth - Relay0.77 in
Body Height - Relay0.315 in
Body Width - Relay0.3 in
BrandTE Connectivity
Coil Resistance2200 Ohms, 2.2 k?, 2200.
Coil Voltage24V dc, 24 VDC
Coil Volts20V DC
Contact ConfigurationDPNO
Contact Current Rating0.5 A
Contact FormDPST-NO
Contact MaterialRuthenium
Contact Voltage Rating100 VDC
Control Voltage24 VDC
Current Rating0.5 A
Depth0.3in
Dielectric Strength500 Vrms Between Adjace.
Dimensions0.77 x 0.3 x 0.32in, 0..
FeaturesMonostable, DC Magnetic.
FunctionGeneral Purpose
Height0.32in
ItemRelay
Length0.77in
Mounting TypeThrough Hole, PCB Mount
Number of Pins14 Pin
Operating Temp. Range-35 to 85?C
Package Quantity1
Power Consumption - Rel.50 to 288 mW
Primary TypeReed Relays
Product HeaderJWD Series Dual-In-Line.
Protection CategoryRTIII
Relay TypeReed
SeriesJWD Series
StandardsUL, CSA, RoHS
Terminal TypePCB Pin
TerminationPCB
Voltage Rating100

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Freelance ElectronicsJWD-171-286.7189912Potter & Brumfield6.71899 @ 1
Allied Electronics712103059.141In StockTE Connectivity9.14 @ 1
us.rs-online.com7019875310.4812921TE Connectivity10.48 @ 1
Onlinecomponents.comJWD-171-2810.581357TE Connectivity / P&B Brand10.58 @ 1
WaldomTE CONNECTIVITY POTTER-BRUMFIELD JWD-171-2811.2151878TE CONNECTIVITY / POTTER-BRUMFIELD11.21 @ 5
Digi-Key1469090515.5810In StockTE Connectivity Potter & Brumfield Relays15.58 @ 10
thumbzoomNewark81F929717.994000In StockPOTTER&BRUMFIELD - TE CONNECTIVITY17.99 @ 4000
thumbzoomRS Delivers783-087020.3761In StockTE Connectivity20.376 @ 1
thumbzoomZoroG300973353144.91In StockTe Connectivity144.9 @ 1
