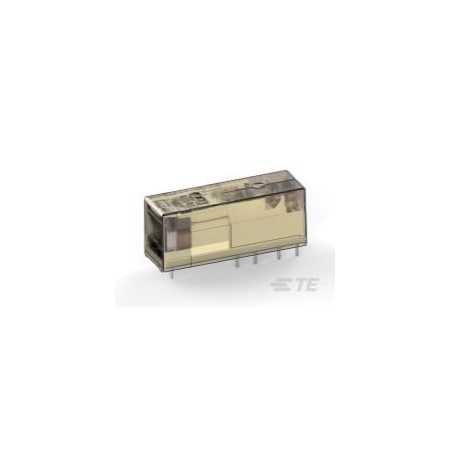

TE Connectivity SR4M4024

mpn4-1415053-1
brandname: TE Connectivity / AMP Brand
manufacturername: TE Connectivity / AMP Brand

T-E Connectivity SR4M4024 (1 pc) SR4M4024

T-E Connectivity SR4M4024 (1 pc) SR4M4024

zoom

Brand: TE Connectivity
PartNumber: SR4M4024
Model: SR4M4024
PackageQuantity: 1
Binding: Electronics
Manufacturer: T-E Connectivity
Label: T-E Connectivity

Attributes

Key	Value
Alternate Mfr Part Numb.	4-1415053-1
Application	Elevators, Emergency Sh.
Base Product Number	SR4M
Category	Relays
Coil Current	33.3 mA
Coil Power	800mW, 800 mW
Coil Resistance	720 Ohms
Coil Voltage	24VDC
Contact Configuration	3PST-NO, SPST-NC
Contact Current Rating	8 A
Contact Form	4PST-3NO/1NC (3 Form A,.
Contact Material	Silver Tin Oxide (AgSnO.
Contact Rating (Current)	8 A
Control Voltage	24 V
Country of Origin (subj.	Mexico
Current Rating	8 A
Depth	0.079 in
Description	RELAY SAFETY 4PST 8A 24V
Digi-Key Part Number	PB662-ND
Dimensions	40 x 13 x 16.5 mm
Features	-
Function	Safety
Height	0.65" (16.5mm)
Length	1.574 in
Life	10 x 106 (Mechanical) o.
Manufacturer	TE Connectivity Potter .
Manufacturer Product Nu.	SR4M4024
Manufacturer Standard L.	27 Weeks
Maximum Operating Tempe.	70 ?C
Mfr	TE Connectivity Potter .
Minimum Operating Tempe.	-25 ?C
Mounting Type	Through Hole, PCB Mount
Must Operate Voltage	18 VDC
Must Release Voltage	2.4 VDC
Number of Pins	10
Number of Poles	1 ; 3
Operating Temperature	-25?C ~ 70?C
Package	Tube
Power Rating	0.8 W
Product Status	Active
Series	SR4, SCHRACK, SR4 M Ser.
Special Features	Compact Design ; Space .
Standards	CQC 06017015578 ; TUV 9.
Switching Current	3 A
Switching Voltage	400VAC - Max
Temperature Operating R.	-25 to 70 C
Terminal Type	PC Pin
Termination	Solder
Termination Style	PC Pin
Voltage Rating	400 V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	TE CONNECTIVITY POTTER-BRUMFIELD SR4M4024	14.26	250	33		TE CONNECTIVITY / POTTER-BRUMFIELD		14.26 @ 250
	Onlinecomponents.com	4-1415053-1	14.8	1	1768		TE Connectivity / AMP Brand		14.8 @ 1
	Avnet	4-1415053-1	16.956	1	718		TE Connectivity		16.956 @ 1
	Newark	42AJ3606	20.07	250	In Stock		AMP - TE CONNECTIVITY		20.07 @ 250
	TME	SR4M4024	20.41	1	423		TE Connectivity		20.41 @ 1
	Zoro	G401034687	22.88	250	In Stock		Te Connectivity		22.88 @ 250
	us.rs-online.com	70198950	26.24	1	59		TE Connectivity		26.24 @ 1
	AmazonTP	B00HKIAIBQ	27.99	1	In Stock	2	TE Connectivity / Schrack		27.99 @ 1
	Future Electronics	5683057	28.044	250	In Stock		TE Connectivity		28.044 @ 250
	RS Delivers	719-6268	28.764	1	In Stock		TE Connectivity		28.764 @ 1
	Digi-Key	678293	39.17	1	7105		TE Connectivity Potter & Brumfield Relays		39.17 @ 1
