Trumeter 3400-2010

B07YWMZ2C5

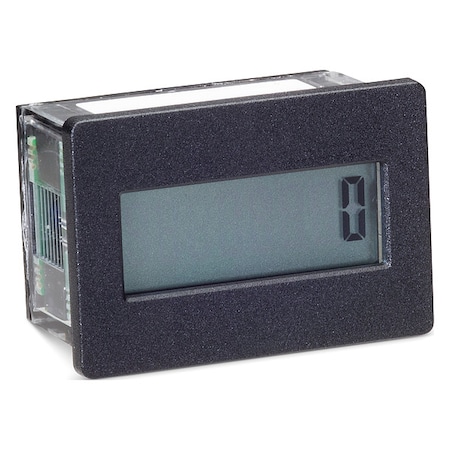

3400-2010 | TRUMETER Counter, 10-300VAC/DC Input, 8 Digit, Rectangular with Fixing Clip, External Reset

3400-2010 | TRUMETER Counter, 10-300VAC/DC Input, 8 Digit, Rectangular with Fixing Clip, External Resetzoom

Attributes

Key Value
Accuracy100 %
ApprovalsCE ; IP66 Complaint ; N.
Body dimensions27.9x40.6x27.6mm
Connection TypeSpade-Terminal
Counting range99999999
Depth0.079 in
Dimensions, Cutout, Inc.36.8 x 24.1 mm
Display Digit Height7 mm
Display height 17mm
Display TypeLCD
Electrical input 1 para.20...300V AC,
FunctionPreset Counter, Totaliz.
Input Signal Type10 to 300 VDC and 20 to.
Input TypeVoltage
IP ratingIP66
ItemElectronic Counter
Kind of counterprogressive
Kind of display usedLCD
Kind of input 1Voltage
ManufacturerTRUMETER
Max IN1 counting freque.40Hz
Maximum Opening Tempera.85 ?C ?C
Measurement Range0 to 99999999
Measuring Range0 to 99999999
Minimum Operating Tempe.-40 ?C ?C
Mountingon panel
Mounting hole diameter23.9x36.6mm
Mounting TypePanel Mount
Number of Digits8
Operating temperature-10...60?C
Panel Cut Out1.45 L x 0.95 H in.
Primary TypeTotalizer
Resetting methodelectrical
Series3400 Series
Special FeaturesTotally Sealed
Supply VoltageSelf Powered
Temperature Range-40 to 85 C
TerminationSpades
TypeElectronic
Type of counted signalpulses
Type of counterelectronical

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomAutomation Direct3400-201022.51In StockTrumeter0.0822.5 @ 1
thumbzoomZoroG065869526.971In Stock8Trumeter1.026.97 @ 1
RS Delivers849-464931.596190Trumeter31.596 @ 1
thumbzoomkempstoncontrols.co.uk3400-201032.29141511Trumeter32.291415 @ 1
us.rs-online.com7011544635.191115Trumeter35.19 @ 1
TME3400-201041.211In StockTRUMETER41.21 @ 1
thumbzoomNewark92P719143.6217TRUMETER43.62 @ 1
