Walter Tools M2156305-M12X1.5

mpnM2156305-M12X1.5
brandname: WALTER PROTOTYP
manufacturername: WALTER PROTOTYP

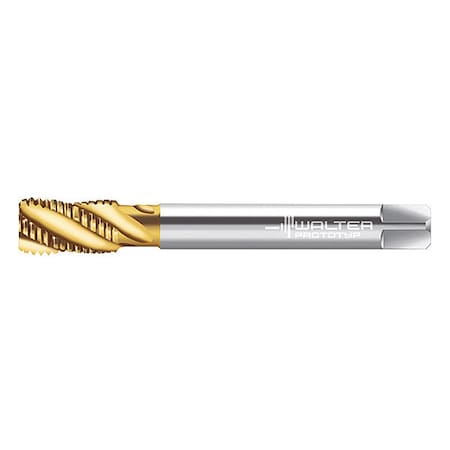

Walter Tools M2156305-M12X1.5 Paradur HSS Machine Tap, TIN Finish, 9 mm Shank Diameter, 1.5 mm Thread Length, 13 mm Cutting Length, 100 mm Overall Length, M12 Cutting Diameter

Walter Tools M2156305-M12X1.5 Paradur HSS Machine Tap, TIN Finish, 9 mm Shank Diameter, 1.5 mm Thread Length, 13 mm Cutting Length, 100 mm Overall Length, M12 Cutting Diameter

zoom

Brand: Walter Tools
PartNumber: M2156305-M12X1.5
Model: 6149889
Size: M12
PackageQuantity: 1
Binding: Misc.
Manufacturer: Walter
Label: Walter

Attributes

Key	Value
55% Thread Drill Size	10.90 mm
65% Thread Drill Size	27/64 in
75% Thread Drill Size	10.50mm
Coolant Fed	Non-Coolant Through
Country of Origin (subj.	Germany
Cutting Direction - Mac.	Right Hand
Drill Bit Size	10.50mm
Extended Neck	Yes
Features	Long-Chipping Materials
Helix Angle	40 Degrees
Item	Spiral Flute Tap
List Number	M2156305
Measurement System	Metric
Number of Flutes	4
Number of Pieces	1
Overall Length	102.00mm
Pitch Diameter Limit	6HX
Primary Material Applic.	Stainless Steel
Primary Material Applic.	M
Secondary Material Appl.	Steel
Secondary Material Appl.	P
Series	Paradur X?pert M
Shank Dia.	9.00mm
Shank Length	27.00 mm
Shank Type - Machining	Straight
Spiral Direction	Right Hand
Square Size	7.00mm
Standards	DIN 374
Tap Chamfer	Plug
Tap Dimension Type	Metric
Tap Finish	TiN
Tap Material	High Speed Steel
Tap Shank Standard	DIN 374
Tap Size	M12
Tap Style	Spiral Flute
Tap Thread Size	M12-1.50
Tap Thread Type	Metric Fine
Thread Direction	Right Hand
Thread Length	13.00mm
Thread Limit	6HX
Thread Limit / Class of.	6HX
Thread Pitch	1.15mm
Thread Size	M12x1.5
Thread Standard	Metric Fine

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G2517562	101.89	1	In Stock		Walter Prototyp	0.05	101.89 @ 1
