WEG 00156OS1BCDD56

B007PCZGVY

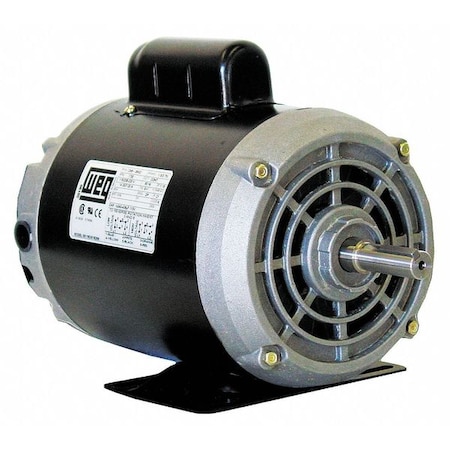

WEG 00156OS1BCDD56 ODP Compressor Duty Definite Purpose Electric Motor, 1.5 HP, 1-Phase, 3430 RPM, 115/208-230 V, 60 Hz, Frame D56

WEG 00156OS1BCDD56 ODP Compressor Duty Definite Purpose Electric Motor, 1.5 HP, 1-Phase, 3430 RPM, 115/208-230 V, 60 Hz, Frame D56zoom

Attributes

Key Value
Capacitor IncludedYes
ClassificationCompressor Duty
Country of Origin (subj.Multiple
DutyContinuous
EnclosureODP
Frame56
Frame RemarksFooted, Compressor Duty
Full Load Amps16.8/9.2-8.4
HP1.5, 1-1/2
Hz60
Ins. ClassB
ItemCommercial Duty Air Com.
Item ConditionFactory New
ManufacturerWEG
Max. Ambient Temp.40 Degrees C
Motor ApplicationAir Compressor
Motor BearingsBall
Motor DesignCapacitor-Start
Motor Enclosure DesignOpen Dripproof
Motor Mounting TypeRigid Base
Motor Service Factor1.00
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionManual
Nameplate RPM3430
Overall Length12-5/16"
Phase1
RPM3600
RPM Range3001-3600
Shaft Dia.5/8"
Shaft Length1-7/8"
StandardsUL Recognized, CSA Cert.
Voltage115/208-230
Voltage Compatibility115, 120, 208, 230, 240.
Volts115/208/230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG4270533198.631In Stock26Weg198.63 @ 1
thumbzoomDealers Electric00156OS1BCDD56298.121In StockWeg40.0298.12 @ 1
Global IndustrialWBB881725426.951In Stock18WEG426.95 @ 1
