Hubbell Wiring Systems HBL400FGN

B005T67AYY

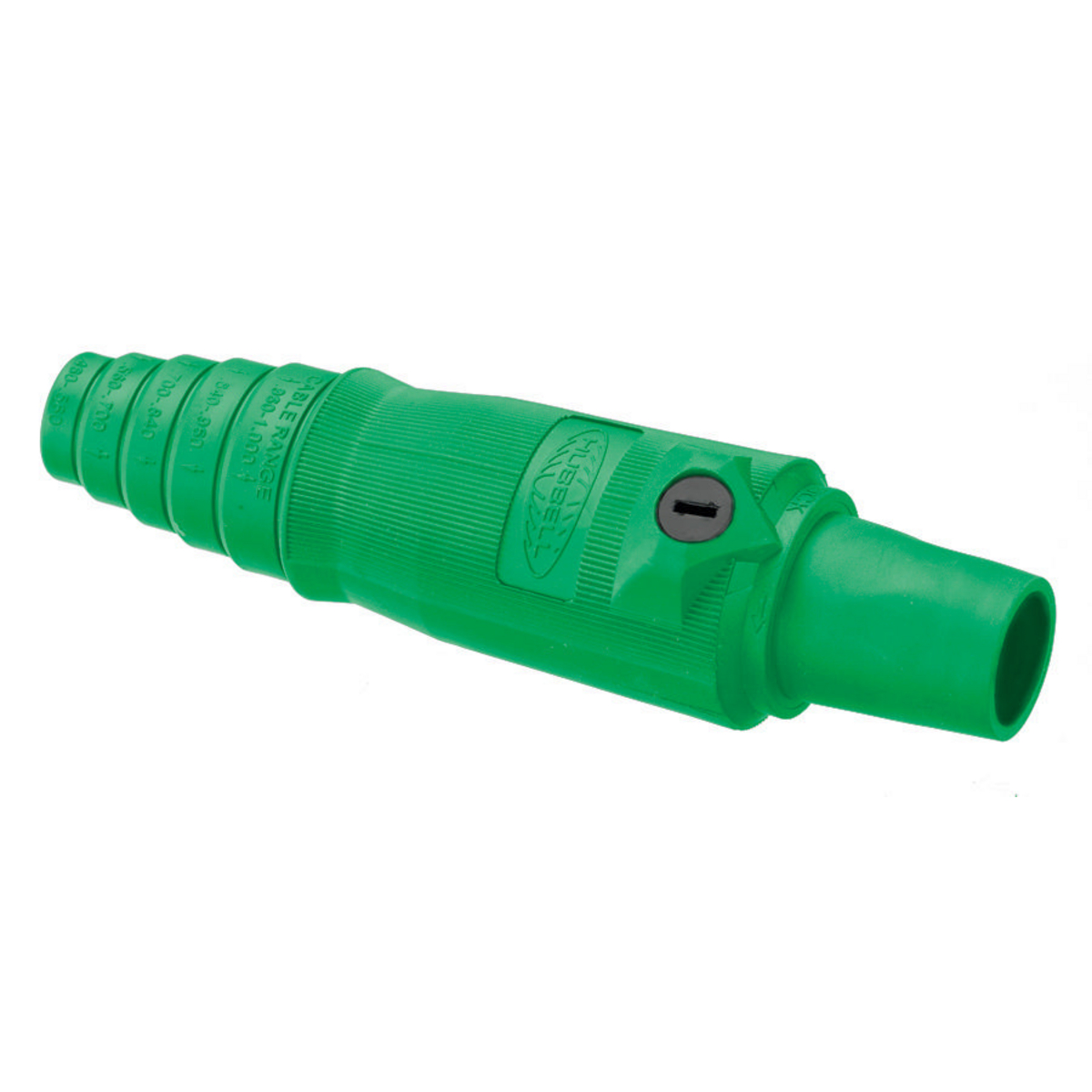

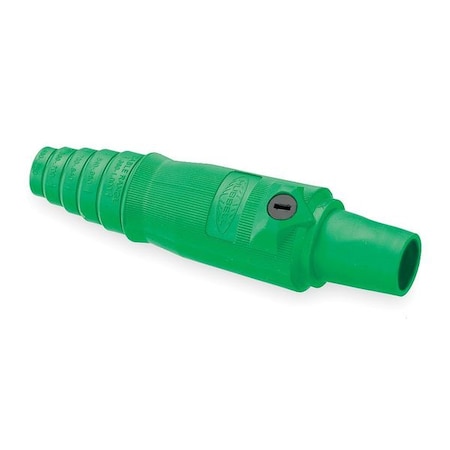

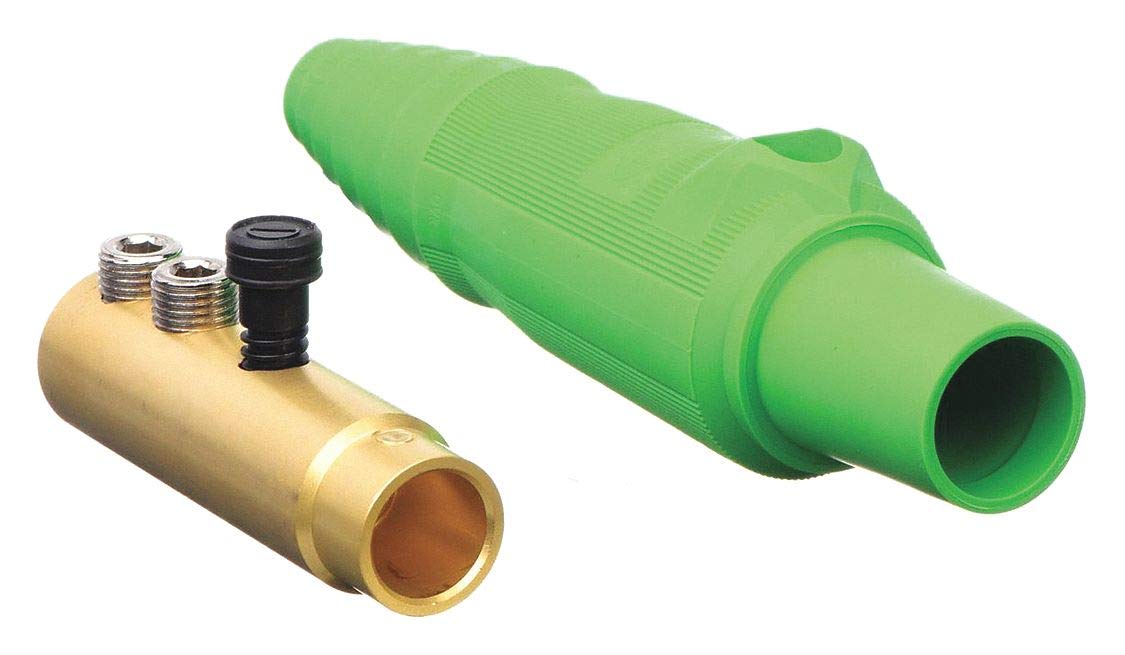

Hubbell Wiring Systems HBL400FGN TPE Single Pole Female Plug, 400 Amp, 600VAC/250VDC, 2/0-4/0 Cable Size, Green

Hubbell Wiring Systems HBL400FGN TPE Single Pole Female Plug, 400 Amp, 600VAC/250VDC, 2/0-4/0 Cable Size, Greenzoom

Attributes

Key Value
Amperage400 A
Amps AC/DC400AC/DC
ApprovalscUL, UL
Cable Attachment MethodDouble Set Screw
Cable Gauge2/0 to 4/0 AWG
Cable Range2/0 to 4/0
Cable Size2/0-4/0
Cable Size (AWG)00 AWG, 000 AWG, 0000 A.
ColorGreen
Color FamilyGreen
Compatible with Series16
Conductor MaterialBrass
Connection DescriptionFemale
Connector ColorGreen
Contact MaterialBrass
Contact TypeSingle Cam
Country of OriginCN - China
Country of Origin (subj.China
Current / amperage rati.400 A
Current Rating400 A
Device TypeFemale Connector
ECCNEAR99
End TypeTaper Nose
Family SeriesHubbell Connectors, 16 .
GenderFemale
Gross Weight0.745 lbs
Housing ColorGreen
Housing MaterialThermoplastic Elastomer
Insulator MaterialThermoplastic Elastomer.
ItemConnector
Item NumberHBL400FGN
Male/FemaleFemale
ManufacturerHubbell
Manufacturer Part NumberHBL400FGN
MaterialThermoplastic Elastomer
Maximum Wire Size4/0 AWG
Minimum Wire Size2/0 AWG
NEMA Enclosure Rating12, 3R, 4X
NEMA Rating12K, 3R, 4X
Net Weight0.2 lbs
Overall Length7.1 in
Overall Width1.95 in
Product Series16
Product TypeConnector
Series16
Single Pole Device StyleTaper Nose
StandardNational Electric Code .
StandardsUL/cUL
StyleFemale
Terminal ConnectionDouble Set Screw
Terminal Connection TypeDouble Set Screw
TypePlugs
UL 94 Flammability Rati.HB
UNSPSC39121402
UPC Code783585113746
Voltage600 VAC
Voltage Rating600V AC/250V DC
Voltage rating descript.600V AC/DC
Wire Size Range2/0 AWG - 4/0 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB005T67AYY43.951In Stock2Hubbell Wiring Device-Kellems43.95 @ 1
Onlinecomponents.comHBL400FGN44.831In StockHubbell Wiring Device-Kellems44.83 @ 1
thumbzoomAmazonSCB007I9NF7Q44.91In StockHubbell Wiring Device-Kellems44.9 @ 1
standardelectricsupply.com229272646.711In StockHubbell46.71 @ 1
thumbzoomMRO Supply102237646.711In StockHubbell Wiring46.71 @ 1
thumbzoomgordonelectricsupply.comHBL400FGN47.421In StockHUBBELL47.42 @ 1
thumbzoomZoroG278511548.191In StockHubbell0.7548.19 @ 1
cbtcompany.comHBL400FGN51.081In StockHubbell Wiring Device-Kellems51.08 @ 1
thumbzoomNewark01J430552.01In StockHUBBELL WIRING DEVICES52.0 @ 1
thumbzoomGalcoHBL400FGN-HBBL52.321In StockHubbell0.74552.32 @ 1
thumbzoomturtle.comHUB HBL400FGN54.141In StockHubbell54.14 @ 1
Graybar2504587458.441619Hubbell Wiring Device - Kellems58.4416 @ 1
us.rs-online.com7057501059.411Hubbell Wiring Device-Kellems59.4 @ 1
thumbzoomRaptor SuppliesAC3WZQ93.2987251In StockHUBBELL WIRING DEVICE-KELLEMS93.298725 @ 1
kirbyrisk.com2092983115.431In StockHubbell115.43 @ 1
